Brightness 10000cd/M2 Outdoor LED Video Wall Energy Saving and Easy Install
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | GCL |
Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
Model Number: | outdoor Gpro |
Payment & Shipping Terms:
Minimum Order Quantity: | Min. order: 20 |
---|---|
Price: | Price to be discussed |
Packaging Details: | wooden case,plywood,flight case,paper board |
Supply Ability: | 2000 Square Meter/Square Meters per Month |
Detail Information |
|||
Application: | Outdoor, Advertising/Fixed Installation, Video Advertising | Type: | LED |
---|---|---|---|
Color: | Full Color | Panel Size: | 640x960mm |
Supplier Type: | Original Manufacturer, OEM | Media Available: | Photo, Video |
Use: | Advertising Publish, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Large Commercial Complex, Large Sports Center, Urban Landmark | Function: | SDK |
Pixel Pitch: | 8mm | Specification: | Video Wall |
Touch Screen Type: | Capacitive | Brightness: | 6000-10000, 10000cd/m2 |
Pixel Density: | 160000 | Contrast Ratio: | ≥9000:1 |
Color Depth: | 256 | Lifespan (hours): | 100000 |
IP Rating: | IP65 | HS Code: | 85285910 |
Resolution: | 4K | View Angle(H/V): | H140°,V140° |
Display Type: | Outdoor | Product Name: | Gpro |
Viewing Angle: | H140 V140 | Warranty: | 3 Years |
LED Type: | SMD 1415 | Port: | Shenzhen |
Highlight: | Energy Saving Outdoor LED Video Wall,Easy Install Outdoor LED Video Wall,Easy Install Media Facade LED Screen |
Product Description
Double Waterproof Design: Both cabinet and module are waterproof
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
High Protective Grades
3 layers of high-quality conformal coating protects the driving IC and other electron components from dust and humidity. Strong signal cable brings more security and the cables look neat.
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 16bits. It is very high so the image looks very vivid and perfect.

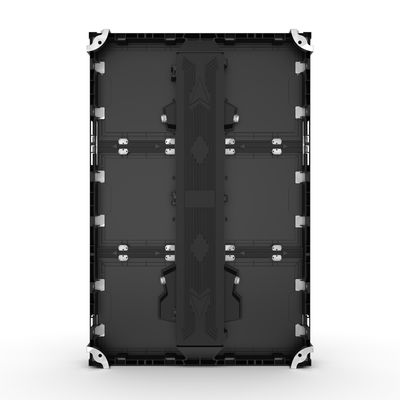

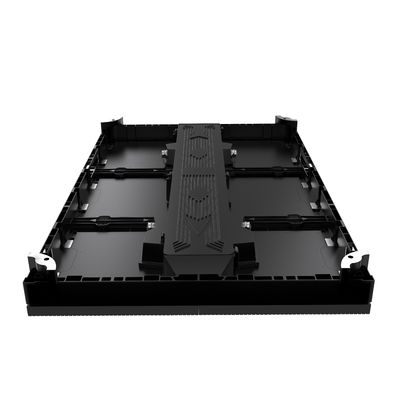

Stable Outdoor Fixed Installation
The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
Visual Performance
High Contrast: The contrast ratio of the LED screen gives sharp image quality.
High Brightness: The brightness of the LED display can be up to 10,000nits. Even if the screen is facing the direct sunlight, the image still looks clear.
Stable Performance, Reliable Quality
We have sold many LED screens to different countries and regions like America, Europe, Middle East, Africa, etc.
Many of our screens have been working for more than 5 years, and they are still working properly. Our LED screens are a great solution for outdoor advertising billboards.

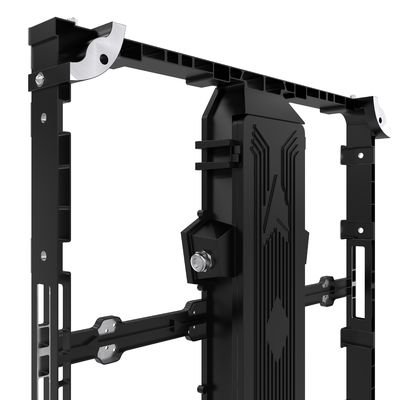

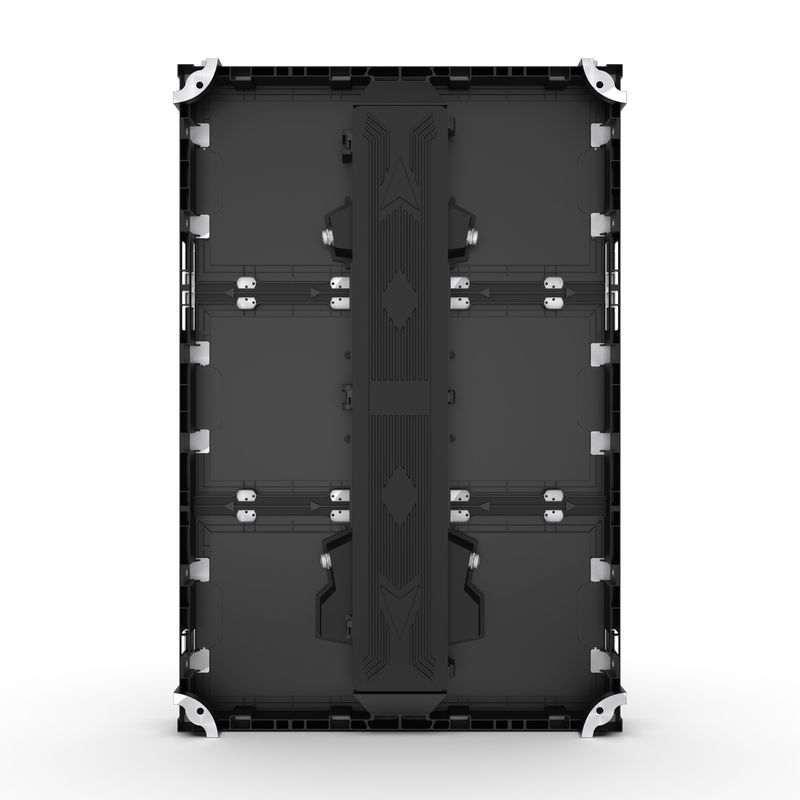

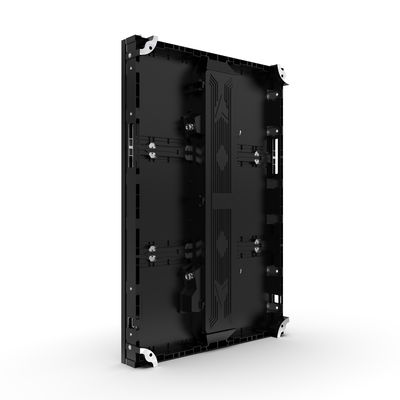

High-end Design:
Diecasting Aluminum Cabinet,High-end Module,Fan-less,Noiseless;

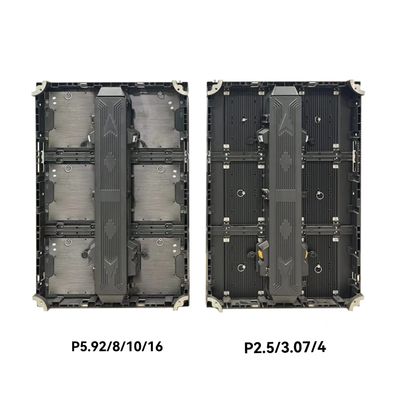

Parameters of Gpro Series:
Name | P5.7 | P8 | P10A | P10B | P16 |
Module | |||||
LED Type | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
Pixel Pitch(mm) | 5.7 | 8 | 10 | 10 | 16 |
Module Resolution | 56*56 | 40*40 | 32*32 | 32*32 | 20*20 |
Module Size(mm) | 320*320*25 | 320*320*25 | 320*320*25 | 320*320*30 | 320*320*30 |
Scan Method | 1/7s | 1/4s;1/2s | 1/2s | 1/4s | Static |
Cabinet | |||||
Unit Resolution | 2*3 | ||||
Cabinet Resolution | 112*168 | 80*120 | 64*96 | 64*96 | 40*60 |
Cabinet Size(mm) | 640*960*100 | 640*960*105 | |||
Cabinet Area(m²) | 0.6144 | ||||
Cabinet Material | Die-casting Aluminum/SPCC | ||||
Cabinet Weight | 17kg | 18.6kg | 16.2kg | 25kg | 18kg |
Densiy (pixels/m²) | 30625 | 15625 | 10000 | 10000 | 3906 |
Protection Level | Front &Rear IP65 | ||||
Optics | |||||
Brightress (nits) | 6500 | 7000 | 7000 | 10000 | 10000 |
Calibration | Support Single-dot Calibration | ||||
Color Temperature | 1700-9500K Adjustable | ||||
Viewing Angle | H140°,V140° | H120°,V100° | |||
Light Decay Rate | <3% | ||||
ContrastRatio | ≥9000:1 | ||||
Grey Scale | 13-16bit | ||||
Electric | |||||
Max Power Consumption/m² | 680w | 700W | 700W | 390W | 390W |
Average Power Consumption/m² | 230W | 240W | 240W | 130W | 130W |
Cabinet Maintenance | Full Front/Rear Service | ||||
Input Voltage | AC100~240V(50-60Hz) | ||||
Performance | |||||
Drive Mode | Constant Current Drive | ||||
Refresh Rate | ≥3840Hz | ||||
Frame Rate | 50Hz/60Hz |
