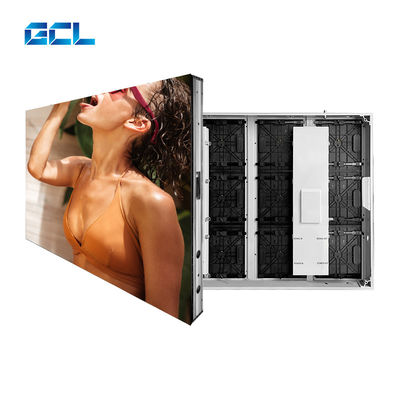

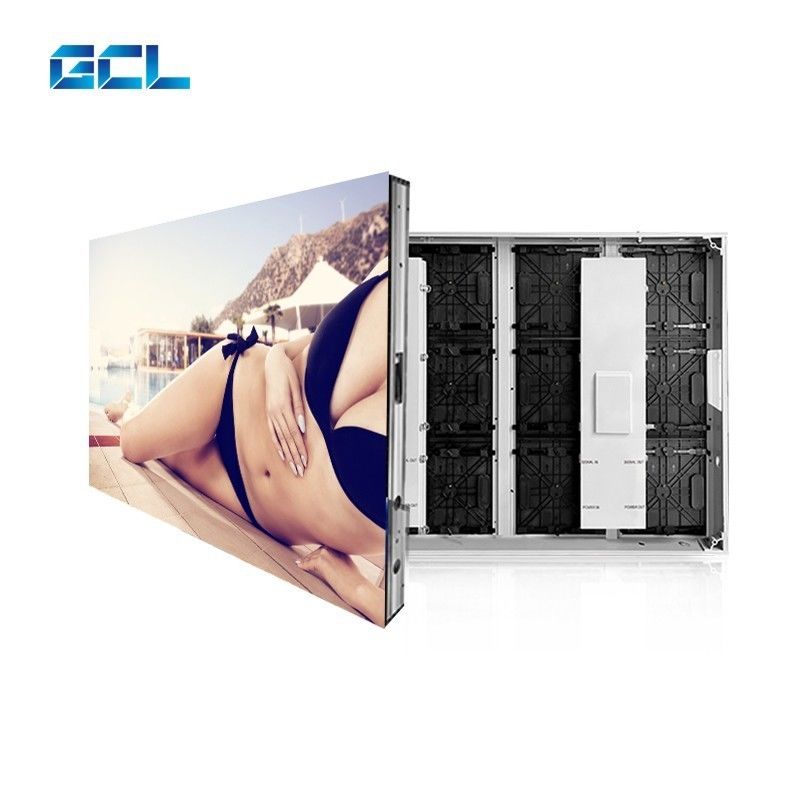

Name: Curve SMD Advertising LED Display Screen IP65 Protection Level 10mm Pixel Pitch
Brand: Shenzhen GCL Electronics Co., Ltd
SKU: Gsurface-III
Availability: InStock

Brand Name:	GCL
Model Number:	Gsurface-III
MOQ:	Min. order: 20
Price:	Negotiable
Packaging Details:	Packing with Flight case & Wooden box & Hard paper box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Color:

Full Color

Panel Size:

320*320, 320*320

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other, Video

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway

Pixel Pitch:

10mm, 5.92mm, 6.67mm 8 10 16

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

7500nits, 7500nits, 6500nits

Pixel Density:

28476, 28476

Lifespan (hours):

100,000, 100,000

IP Rating:

IP65, IP65

HS Code:

Resolution:

28476

View Angle（H/V）:

H160°,V120°, H160°,V120°

Usage:

Outdoor Waterproof

Display Function:

Animation

Protection Level:

IP65

Warranty:

3 Years

Control System:

NOVA Star

Cabinet Weight:

35.5kg

Refresh Rate:

3840Hz

Panel Material:

Profile Aluminum

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

Curve Advertising LED Display Screen

SMD Advertising LED Display Screen

10mm Pixel Pitch LED Media Facade

Product Description

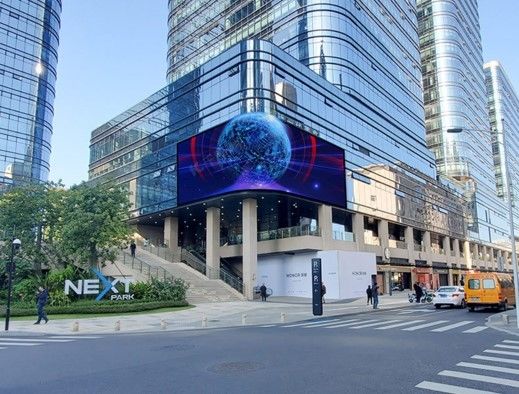

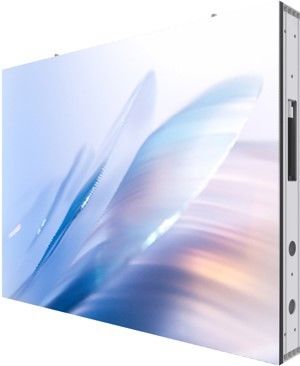

Outdoor SMD Curve LED Screen for Advertising IP65 Protection Level 10mm Pixel Pitch

Gsurface-III Series:
28.9kg/㎡, thickness 100mm

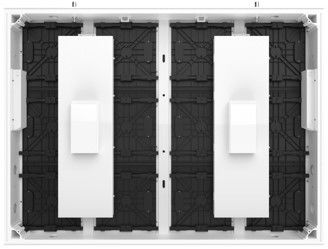

100% Front & Rear Maintenance
Flexible Location for Modules
The same module can be placed on either the right or left side.

Excellent Heat Dissipation
AC is not needed
Special heat dissipation module design+cabinet fan
Longer lifespan

Solid & Safe
Screws that fix the power box onto the cabinet don't fall off ;
The wirerope makes sure the power box won't fall off ;

Multiple Cabinet Colors
Standard cabinet color: white
Any other colors are doable

Cabinet Handles
Easy for moving the cabinets

Multiple Installation Ways
Straight wall mounted
Curve wall mounted
Pillar mounted

Lighter&Thinner Cabinet = Lower Cost for Steel Structure

Parameters of Gsurface-III Series:

Name	P5.92	P6.67	P8	P10	P10B	P16
Module
LED Type	SMD2727	SMD2727	SMD2727	SMD2727	DIP346	DIP346
Pixel Pitch(mm)	5.925	6.667	8	10	10	16
Module Resolution	54*54	48*48	40*40	32*32	32*32	20*20
Module Size(mm)	320*320	320*320	320*320	320*320	320*320	320*320
Scan Method	1/6s	1/6s	1/4s	1/2s	1/4s	静态
Cabinet
Module Quantity	4*3	4*3	4*3	4*3	4*3	4*3
Cabinet Resolution	216*162	192*144	160*120	128*96	128*96	80*60
Cabinet Size(mm)	1280960100;Customizable
Cabinet Area(㎡)	1.2288
Cabinet Material	Profile Aluminum
Cabinet Weight	32kg	32kg	32kg	32kg	37kg	35kg
Density(pixels/㎡)	28476	22500	15625	10000	10000	3096
Protection Level	IP65
Optics
Brightness(nits/㎡)	6500	6500	7000	7000	10000	10000
Calibration	Support Single-dot Calibration
Color Temperature	1700-9500K Adjustable
Viewing Angle	H140°,V140°
Light Decay Rate	<3%
Contrast Ratio	9000:01:00
Grey Scale	13-16bit
Electric
Max Power Consumption/㎡	640W	700W	680W	680W	360W	420W
Average Power Consumption/㎡	220W	230W	230W	230W	120W	140W
Cabinet Maintenance	Full Front/Rear Service
Input Voltage	AC100~240V(50-60Hz)
Performance
Drive Mode	Constant Current Drive
Refresh Rate	≥3840Hz
Frame Rate	60Hz
Working Condition
Working Temperature/Working Humidity	-20℃~+60℃/ 10%-90%RH
Storage Temperature/Storage Humidity	-20℃~+60℃/ 10%-90%RH
