Advertising Publish Double LED Media Facade Waterproof Outdoor LED Video Wall

Brand Name:	GCL
Model Number:	Gsurface
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	plywood,flight case,paper board

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Color:

FULL COLOR

Panel Size:

H39.4"xW39.4", H39.4"xW39.4"

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Subway, Elevator, Restaurant & Hotel Supplies, Large Commercial Building, Advertisement Billboard, Large Sports Center

Pixel Pitch:

4.81mm, 4.81mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

5500nits, 5500nits, 5500nits

Pixel Density:

22477, 22477

Lifespan (hours):

10,000, 10,000

IP Rating:

IP65, IP65

HS Code:

Resolution:

2K-4K

View Angle（H/V）:

H160°/V160°, H160°/V160°

Module Size:

H9.8"xW9.8"

Cabinet Material:

Profile Aluminum

Scan Method:

1/7

Module Weight:

66Ib

LED Type:

SMD1921

Protection Level:

IP65

Cabinet Maintenance:

Front Service

Refresh Rate:

3840HZ

Viewing Angle:

H160°,V160°

Port:

Shenzhen

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

Advertising Publish LED Media Facade

Double LED Media Facade

Double Outdoor LED Advertising Screen

Product Description

Products Description

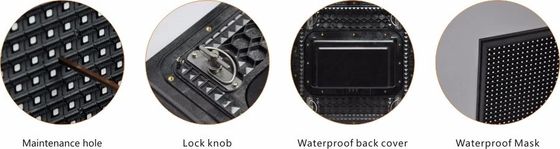

Dual waterproof design
·Matched with professional waterproof box and waterproof module, with a protection level of up to IP65, suitable for use in various wind, sand, rain, and snow weather conditions
High definition and high brightness, high-quality visual experience
Brightness above 5500-6000 CD/㎡, the image remains soft and bright in strong sunlight, and high dynamic contrast ensures high-quality display effects!

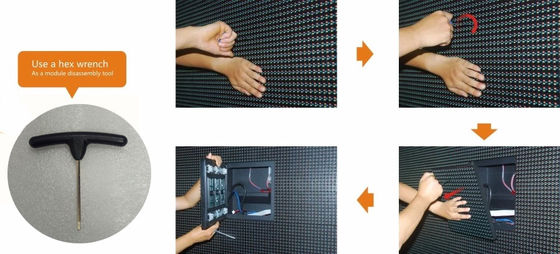

Easy to install and can be maintained before and after
The module can be disassembled for front/back maintenance, making bidirectional maintenance and installation more convenient;

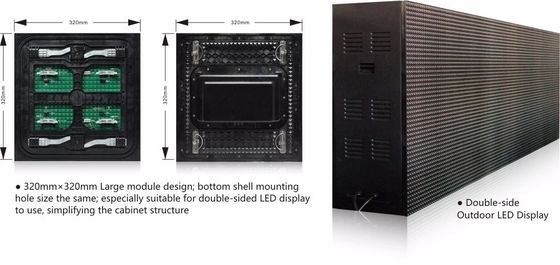

45 ° module, can be assembled into right angles
Customizable according to project requirements, widely used in outdoor naked eye 3D commercial advertising design;

Product	P5.95	P8	P10(SMD)	P10(DIP)
Pitch(mm)	5.95	8	10	10
Density(pixels/m²)	28476	15625	10000	10000
LED Type	SMD3535				DIP346
Brightness(nits)	5500	5500	6500	7500
Scan Method	1/9	1/5	1/3	1/4
Cabinet Size(mm)	Customized
Module Size(mm)	320*320mm
Cabinet Material	Steel(Aluminum Optional)
Cabinet Weight	40kg/m²				50kg/m²
Protection Level	IP65
Cabinet Maintenance	100% Rear Service
Max Power Consumption	650w/m²	650w/m²	750w/m²	550w/m²
Average Power Consumption	220w/m2	240w/m²	250w/m²	220w/m²
Refresh Rate	2880-3840HZ
Grey Scale	16 bit
Viewing Angle	H140^o,V140^o				H140^o,V70^o
Voltage	AC100~240V(50-63Hz)
Working Temperature	-30 ^oC - + 65 ^oC
Working Humidity	10% -- 90%RH
Color Temperature	6500-9500K
Certificationa	EMC/CE/ROHS/CCC/FCC/ISO
