P8mm Pixel Pitch LED Media Facade High Refresh Rate LED Factory Display
Product Details:
| Place of Origin: | China(Mainaland) |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gpro |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | plywood,flight case,paper board |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor Fix Installation | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 640x960mm | Weight: | 27kg/sqm |
| Material: | Die-casting Aluminum | Module Size: | 320x320mm |
| Pixel Pitch: | 4mm/6mm/8mm/10mm/16mm | Port: | Shenzhen |
| Highlight: | P8mm Pixel Pitch LED Media Facade,High Refresh Rate LED Media Facade,P8mm Pixel Pitch Media Facade Lighting |
||
Product Description

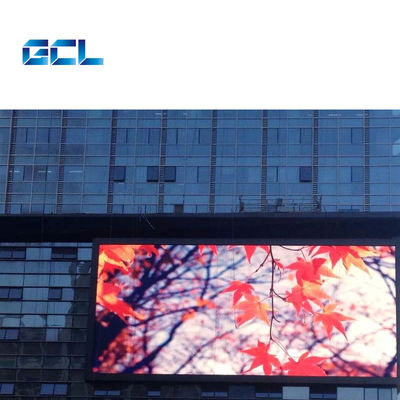

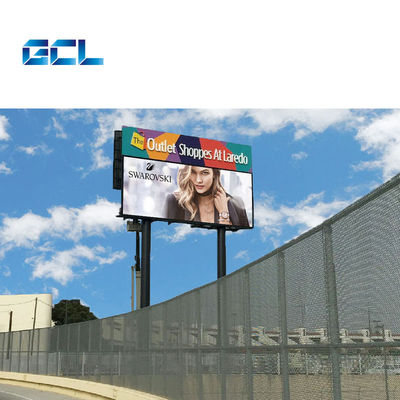

Gpro series - Outdoor led screen
Fixed Led display:
-1. Highly customized for outdoor IP65 fixed installation projects;

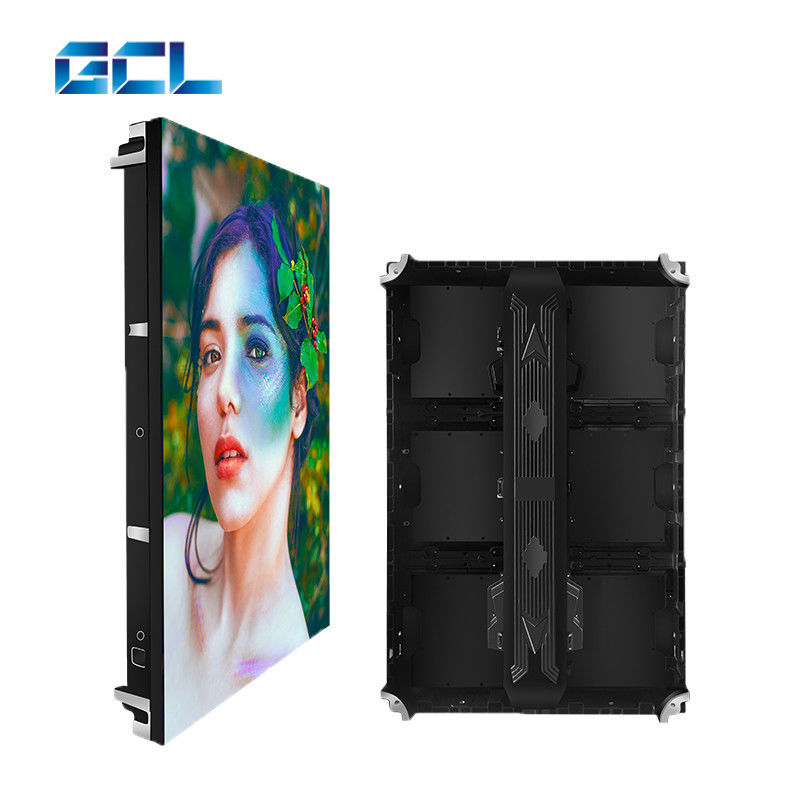

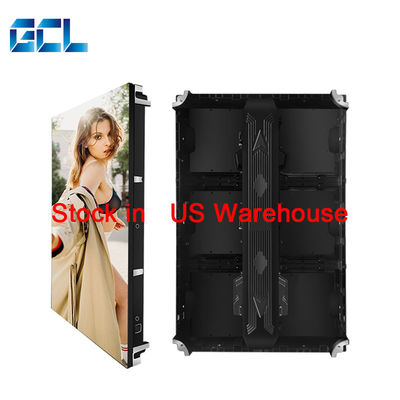

-2. Front & Back maintenance cabinet, 640x960mm die-casting aluminum cabinet ;
-3. Good heat dissipation of aluminum sealed modules, fan-less & noiseless ;
-4. Very weight light of about 16kg/cabinet, save 47% weight than normal steel case ;
-5. Energy saving environment friendly, SMD save 30%, DIP save 50% ;
-6. Design is stable and simple, No Hub card, more stable.
IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.
Super light weight
Die-casting Aluminum case, save 47% weight than normal case, it means saving your transportation and labor installation cost greatly ;
Super wide angle
Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.
High Brightness
Gold bonding wire DIP LED with stable driving IC ensures the high brightness of 10,000nits and long lifespan of modules.
High Refresh Rate
The image on the LED screen is formed perfectly. One of the reasons is that the refresh rate can reach 3,840Hz.
| Name | P4 | P6.67 | P8 | P10A | P10 DIP |

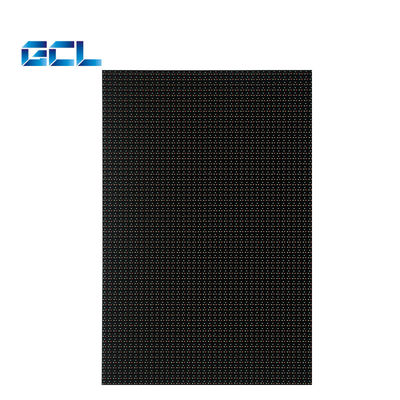

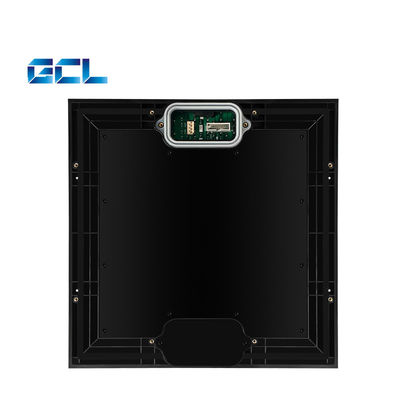

| Module | |||||
| LED Type | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 |
| Pixel Pitch(mm) | 4 | 6.67 | 8 | 10 | 10 |
| Module Resolution | 80*80 | 48*48 | 40*40 | 32*32 | 32*32 |
| Module Size(mm) | 320*320*25 | 320*320*25 | 320*320*25 | 320*320*25 | 320*320*30 |
| Scan Method | 1/8s | 1/4s;1/6s | 1/4s;1/2s | 1/2s | 1/4s |
| Cabinet | |||||
| Unit Resolution | 2*3 | ||||
| Cabinet Resolution | 160*240 | 96*144 | 80*120 | 64*96 | 64*96 |
| Cabinet Size(mm) | 640*960*100 | 640*960*105 | |||
| Cabinet Area(m²) | 0.6144 | ||||
| Cabinet Material | Die-casting Aluminum/SPCC | ||||
| Cabinet Weight | 17.6kg | 18kg | 18.6kg | 16.2kg | 25kg |
| Densiy (pixels/m²) | 62500 | 22500 | 15625 | 10000 | 10000 |
| Protection Level | Front &Rear IP65 | ||||
| Optics | |||||
| Brightress (nits) | 6500 | 7000 | 7000 | 7000 | 10000 |
| Calibration | Support Single-dot Calibration | ||||
| Color Temperature | 1700-9500K Adjustable | ||||
| Viewing Angle | H140°,V140° | H120°,V100° | |||
| Light Decay Rate | <3% | ||||
| ContrastRatio | ≥9000:1 | ||||
| Grey Scale | 13-16bit | ||||
| Electric | |||||
| Max Power Consumption/m² | 780W | 650W | 700W | 700W | 390W |
| Average Power Consumption/m² | 260W | 220W | 240W | 240W | 130W |
| Cabinet Maintenance | Full Front/Rear Service | ||||
