P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display

All Category

Outdoor Advertising LED Display

Narrow Pixel Pitch LED Display

Stage Concert LED Display

Mr. Bill

gcl@gcled.com

+8615989317964

Contact Now

P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display

Brand Name:	GCL
Model Number:	Gpro
MOQ:	Min. order: 10
Price:	1 - 9 pieces $352， 10 - 19 pieces $350，≥ 20 pieces $348
Packaging Details:	plywood,flight case,paper board

Detail Information

Product Description

Detail Information

Place of Origin:

China(Mainaland)

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor Fix Installation

Color:

Full Color

Panel Size:

640x960mm

Weight:

27kg/sqm

Material:

Die-casting Aluminum

Module Size:

320x320mm

Pixel Pitch:

4mm/6mm/8mm/10mm/16mm

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

Full Color Outdoor Fixed LED Display

Die Casting Aluminum Outdoor Fixed LED Display

Full Color Outdoor LED Video Wall

Product Description

Products Description

Gpro series - Outdoor led screenF ixed Led display:

-1. Highly customized for outdoor IP65 fixed installation projects;

-2. Front & Back maintenance cabinet, 640x960mm die-casting aluminum cabinet ;

-3. Good heat dissipation of aluminum sealed modules, fan-less & noiseless ;

-4. Very weight light of about 16kg/cabinet, save 47% weight than normal steel case ;

-5. Energy saving environment friendly, SMD save 30%, DIP save 50% ;

-6. Design is stable and simple, No Hub card, more stable.

IP65 front Water proof
High protection grade of IP65 guarantees,Durability, Reliability, Anti-ultraviolet and Steady.

Super light weight
Die-casting Aluminum case, save 47% weight than normal case, it means saving your transportation and labor installation cost greatly ;

Super wide angle
Wide Viewing Angle can achieve to Vertical viewing 150 Horizontal viewing 120.

Parameters of Gpro Series

Product	P8	P10	P10D	P16
Pitch	8mm	10mm	10mm	16mm
Density(pixels/m²)	15625	10000	10000	3906
LED Type	SMD2727	SMD2727	DIP346	DIP346
Brightness	7000nits	7000nits	8000nits	8000nits
Scan Method	1/4	1/2	1/4	静态
Panel Size	640×960mm
Module Size	320×320mm
Panel Material	Die-casting Aluminum
Panel Weight	19Kg	19Kg	21Kg	21Kg
Protection Level	IP65
Maintenance	Front/Rear Service
Max Power Consumption	720W/㎡	720W/㎡	350W/㎡	350W/㎡
Average Power Consumption	240W/㎡	240W/㎡	110W/㎡	110W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H160°,V140°		H100°,V50°
Voltage	AC100~240V(50-60Hz)
Working Temperature	-30℃ to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

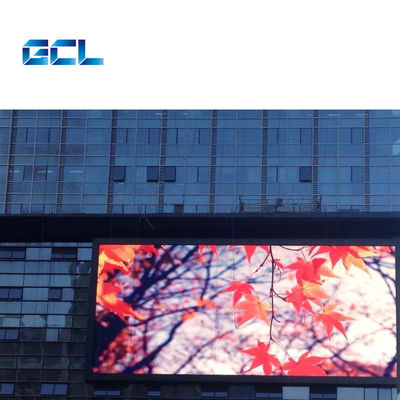

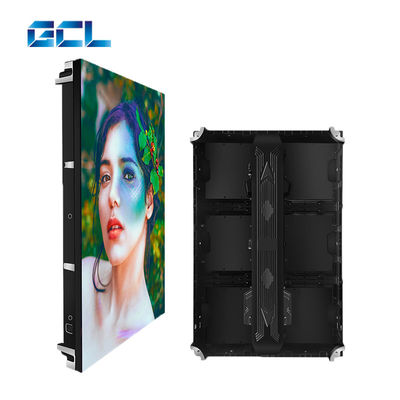

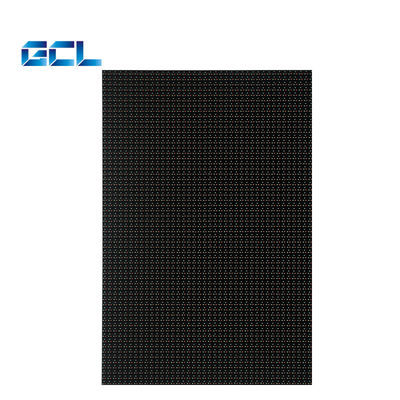

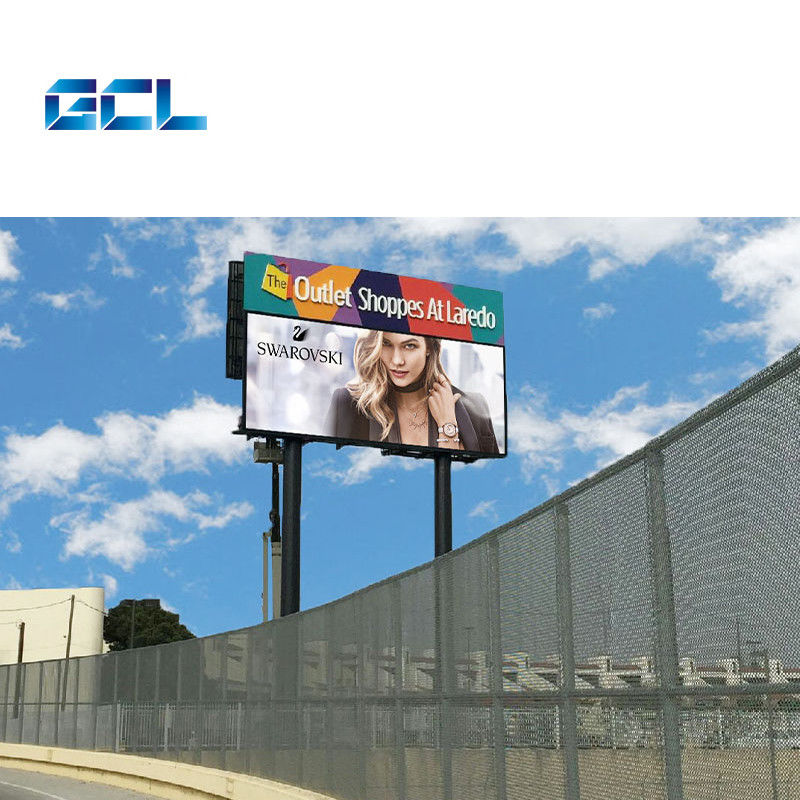

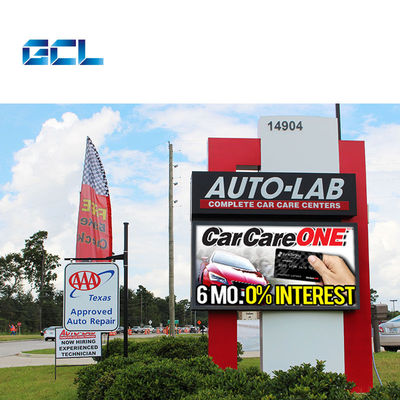

Show Case

$P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 0$

$P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 1$ $P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 2$

$P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 3$

$P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 4$

$P2.5mm\P3mm\P4mm Full Color Both Cabinet And Module Are Waterproof Outdoor Fixed LED Display 5$
