AC100-240V 50/60HZ Outdoor LED Display P6 P10 P16 Video PBC RGB 256*128mm 320mm*320mm
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | GCL |
Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
Model Number: | Grock |
Payment & Shipping Terms:
Minimum Order Quantity: | Min. order: 20 |
---|---|
Price: | Price to be discussed |
Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
Supply Ability: | 5000 Square Meter/Square Meters per Month |
Detail Information |
|||
Application: | Outdoor | Color: | Full Color |
---|---|---|---|

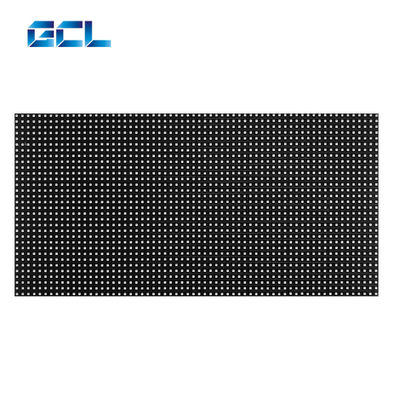

Panel Size: | 256*128mm | LED Chip: | Nationstar |
Cabinet Size: | 960x960mm | Brightness: | 6500nits |
Scan Mode: | 1/4scan | Usage: | Advertising |
Refresh Rate: | 1920Hz-3840Hz | Viewing Angle: | H120 V120 |
Cabinet Material: | Iron | Certificate: | CE ROHS FCC |
Input Voltage: | AC100~240V 50 /60 HZ | Pixel Pitch: | P8 |
Port: | Shenzhen | ||
Highlight: | Outdoor LED Display P6,AC100-240V Outdoor LED Display,Outdoor LED Display P16 |
Product Description
Products Description







Product Parameter
Product | P6 | P8 | P10 |
Pitch(mm) | 6 | 8 | 10 |
Density(pixels/m2) | 27777 | 15625 | 10000 |
LED Type |
SMD3535
|
||
Brightness(nits) | 6500 | 6000 | 5500 |
Scan Method | 1/8 |
1/4
|
1/3 |
Cabinet Material | Customized | ||
Cabinet Weight | 45kg/㎡ | ||
Protection Level | IP65 | ||
Cabinet Maintenance | 100% Rear Service | ||
Max Power Consumption | 800w/㎡ | 800w/㎡ | 800w/㎡ |
Average Power Consumption | 270w/㎡ |
270w/㎡
|
270w/㎡
|
Refresh Rate | 2880-3840HZ | ||
Grey Scale | 16 bit | ||
Viewing Angle | H160°,V140° | ||
Voltage | AC100~240V(50-63Hz) | ||
Working Temperature | -30 ℃- + 65 ℃ | ||
Working Humidity | 10% -- 90%RH | ||
Color Temperature | 6500-9500K | ||
Certificationa | EMC/CE/ROHS/CCC/FCC/ISO |

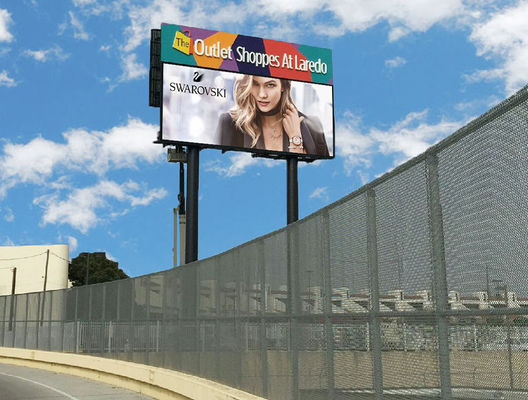

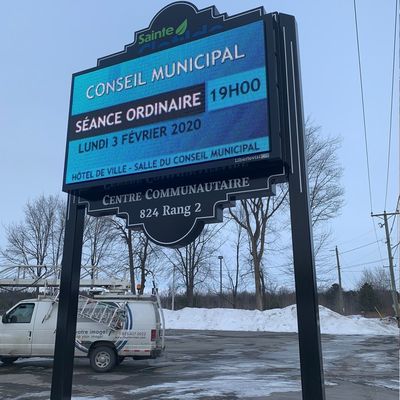

Application
