P10.4mm P16mm Waterproof Outdoor Advertising Screen Chinese Origin Manufacturers
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Fixed, Outdoor Fixed Led Led Display | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 500*1000mm |
| Brightness: | 10000nits | Warranty: | 2 Years |
| Waterproof: | IP 65 | Viewing Angle: | H140 V140 |
| Material: | Die Casting Aluminum | Refresh Rate: | 2880hz~3840hz |
| Life Span: | 100000 Hours | LED Chip: | Nation Star |
| Module Size: | 250mm*500mm | Pixel Pitch: | 10.42mm;15.625;21.25 |
| Port: | Shenzhen | ||
| Highlight: | Waterproof Outdoor Advertising Screen,Waterproof Outdoor Fixed LED Display,Full Color Outdoor LED Display Screen |
||
Product Description
Waterproof Outdoor LED Display Screen for Mall Advertising Fixed and TransparentP7.8-3.9 P10.4P15.625P21.25P25P31.2

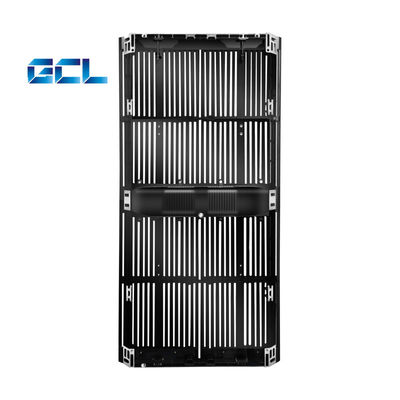

The outdoor grid GmeshP7.8-3.9 features a die-cast aluminium casing with dimensions of 500*1000mm and module dimensions of 250*500mm. The casing weighs approximately 8kg, boasts a high refresh rate of up to 3840Hz, and a white balance brightness ≥8000cd/㎡. It supports single-point correction, manual adjustment of colour temperature from 6500-9500K, with a minimum average power consumption of 220W. It offers a horizontal viewing angle of 140°, vertical viewing angle of 120°, and allows for full front or rear maintenance. The product has IP65 protection rating on both the front and back, making it suitable for all weather conditions.
Product Features.
- The first 7.8-3.9 grid screen product nationwide;
- High safety performance: The product has passed international ClassB certification, with excellent flame retardant and heat dissipation effects, extremely high safety performance, providing peace of mind in use.

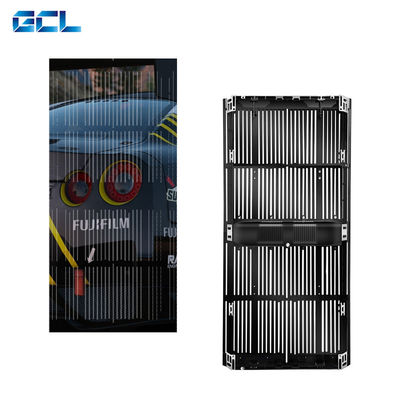

- High transparency of the product: Light transmittance up to 63%; outdoor installation does not affect indoor lighting.

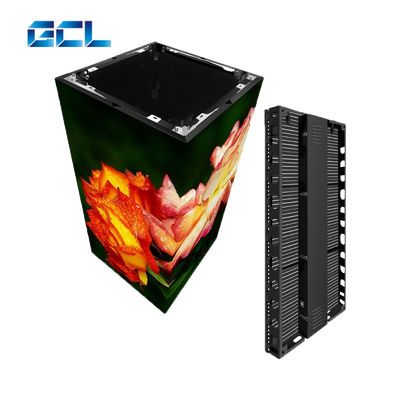

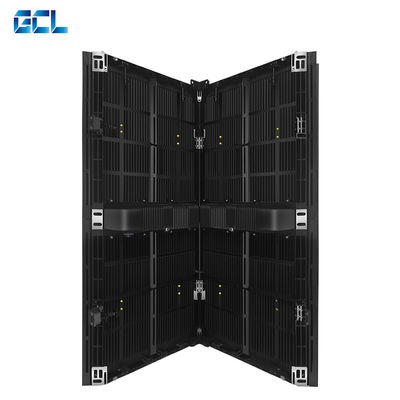

- Diverse and creative installation: Supports maximum 90-degree outward arc installation (right-angle installation), allowing for creative displays such as internal arcs and outward arcs.
- Versatile usage scenarios: Suitable for both stage rental and outdoor fixed large screens.
- Supports full front maintenance (power supply, card, and module can be taken out from the front), and also allows for rear maintenance installation;
- Power and signal cables are integrated, making wiring simpler.
Parameters of Gmesh Series:
| Product | P7.8-3.9 | P10 | P16-A | P16-B | P16-C | P25 | P31.25 |
| Pitch | 7.8-3.9mm | 10.4mm | 15.625mm | 15.625mm | 15.625-31.25mm | 25-31.25mm | 31.25mm |
| Density(pixels/m²) | 32768 | 9216 | 4096 | 4096 | 2048 | 1280 | 1024 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 | DIP346 | DIP346 | DIP346 |
| Brightness | 5500nits | 5500nits | 6000nits | 10000nits | 10000nits | 10000nits | 10000nits |
| Scan Method | 1/8 | 1/3 | Static | Static | Static | Static | Static |
| Panel Size | 500×1000mm | ||||||
| Module Size | 250×500mm | ||||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 9kg | 9kg | 9kg | 10.5kg | 10.5kg | 10.5kg | 10.5kg |
| Protection Level | IP65 | ||||||
| Maintenance | Front&Rear Service | ||||||
| Max Power Consumption | 680W/㎡ | 680W/㎡ | 680W/㎡ | 350W/㎡ | 350W/㎡ | 350W/㎡ | 350W/㎡ |
| Average Power Consumption | 220W/㎡ | 220W/㎡ | 220W/㎡ | 110W/㎡ | 110W/㎡ | 110W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||||||
| Grey Scale | 16bit | ||||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° | H100°,V50° | H100°,V50° | H100°,V50° |
| Voltage | AC100~240V(50-60Hz) | ||||||
| Working Temperature | ‘-30℃ to 60℃ | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 3000-9500K | ||||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||||
