P6 LED Advertising Screen Billboard For Bright Animation And 6000nits Brightness
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsurface |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | OUTDOOR | Type: | LED |
|---|---|---|---|
| Color: | FULL COLOR | Panel Size: | 320*320mm |
| Usage: | Outdoor Waterproof | Display Function: | Animation |
| Brightness: | 6000nits | Protection Level: | IP65 |
| Viewing Angle: | 140/140 Degree | Refresh Rate: | 1920Hz-3840Hz |
| LED Chip: | Nationstar | Cabinet Material: | Iron |
| Control System: | Novastar | Warranty: | 3 Years |
| Pixel Pitch: | P4 P5 P6 P8 P10 | Port: | Shenzhen |
| Highlight: | Bright Animation LED Advertising Screen,6000nits Brightness LED Advertising Screen,6000nits Brightness Advertising LED Display Screen |
||
Product Description

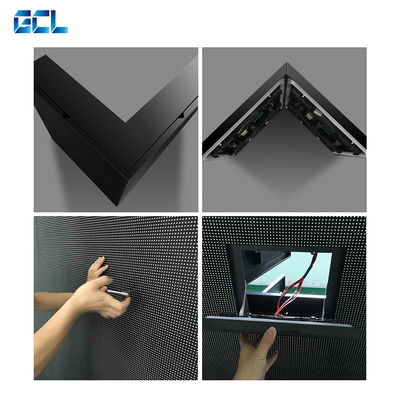

Easy Front Maintenance
Only need to loose two module locks to remove a module
No Steel Structure Needed
The cabinets can be installed on the wall directly without a steel structure.
Slimmer,easier.
Seamless L Shape Design
Great Gray Scale
Most LED screens from other suppliers have a low gray scale, so some of the colors can't be displayed on the screen, and the image on the LED screen appears like a ghost image. Our LED screen grays cale is 13bits ~ 16bits. It is very high so the image looks very vivid and perfect.

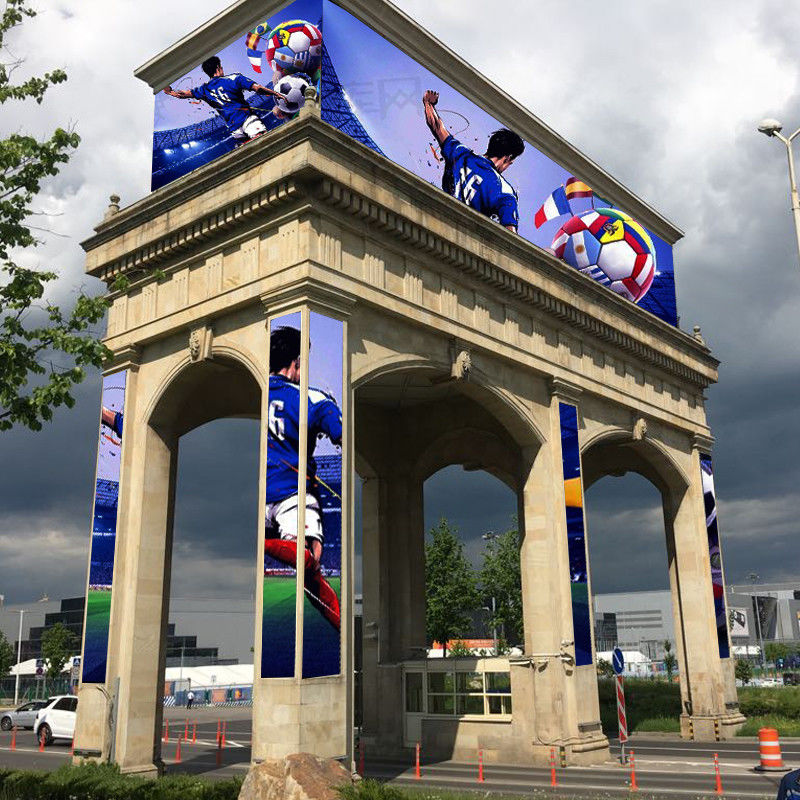

Stable Outdoor Fixed Installation
The LED display cabinet is made of steel material or aluminum material. We adopt the best materials and great crafts to manufacturing this LED display. Therefore, the LED screen functions are very stable in outdoor scenes.
Parameters of Gsurface Series:
| Name | P5.92 | P6.67 | P8 | P10 | P10B | P16 |
| Module | ||||||
| LED Type | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Pixel Pitch(mm) | 5.925 | 6.667 | 8 | 10 | 10 | 16 |
| Module Resolution | 54*54 | 48*48 | 40*40 | 32*32 | 32*32 | 20*20 |
| Module Size(mm) | 320*320 | 320*320 | 320*320 | 320*320 | 320*320 | 320*320 |
| Scan Method | 1/6s | 1/6s | 1/4s | 1/2s | 1/4s | 静态 |
| Cabinet | ||||||
| Module Quantity | 4*3 | 4*3 | 4*3 | 4*3 | 4*3 | 4*3 |
| Cabinet Resolution | 216*162 | 192*144 | 160*120 | 128*96 | 128*96 | 80*60 |
| Cabinet Size(mm) | 1280*960*100;Customizable | |||||
| Cabinet Area(㎡) | 1.2288 | |||||
| Cabinet Material | Profile Aluminum | |||||
| Cabinet Weight | 32kg | 32kg | 32kg | 32kg | 37kg | 35kg |
| Density(pixels/㎡) | 28476 | 22500 | 15625 | 10000 | 10000 | 3096 |
| Protection Level | IP65 | |||||
| Optics | ||||||
| Brightness(nits/㎡) | 6500 | 6500 | 7000 | 7000 | 10000 | 10000 |
| Calibration | Support Single-dot Calibration | |||||
| Color Temperature | 1700-9500K Adjustable | |||||
| Viewing Angle | H140°,V140° | |||||
| Light Decay Rate | <3% | |||||
| Contrast Ratio | 9000:01:00 | |||||
| Grey Scale | 13-16bit | |||||
| Electric | ||||||
| Max Power Consumption/㎡ | 640W | 700W | 680W | 680W | 360W | 420W |
| Average Power Consumption/㎡ | 220W | 230W | 230W | 230W | 120W | 140W |
| Cabinet Maintenance | Full Front/Rear Service | |||||
| Input Voltage | AC100~240V(50-60Hz) | |||||
| Performance | ||||||
| Drive Mode | Constant Current Drive | |||||
| Refresh Rate | ≥3840Hz | |||||
| Frame Rate | 60Hz | |||||
| Working Condition | ||||||
| Working Temperature/Working Humidity | -20℃~+60℃/ 10%-90%RH | |||||
| Storage Temperature/Storage Humidity | -20℃~+60℃/ 10%-90%RH | |||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |||||
