P10 LED Transparent Video Wall With 120 Degree Viewing Angle 10000 Hours Lifespan
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood,flight case,paper board |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Black, Silver, White |
|---|---|---|---|
| Panel Size: | 500*1000mm | LED Chip: | DIP346/SMD3535 |
| Module Size: | 250*500mm | Brightness: | 8500nits |
| Refresh Rate: | 1920Hz-3840Hz | Life Span: | 10000hours |
| Viewing Angle: | 120/120 Degree | Warranty: | 3 Years |
| Material: | Waterproof Diecasting Cabinet | IP Rate: | IP65/IP65 |
| Voltage: | 110-240V/50-60HZ | Pixel Pitch: | 10mm 15mm |
| Port: | Yantian(Shenzhen) Shekou(Shenzhen) | ||
| Highlight: | LED Transparent Video Wall,120 Degree Viewing Transparent Video Wall,120 Degree Viewing Transparent LED Display |
||
Product Description
P7.8-3.9P8.310.4P16 Transparent LED Video Wall with 120/120 Degree Viewing Angle and 10000 Hours Lifespan
Gmesh Product Introduction:
The lightest weight of the box is about 16kg;
The refresh rate is as high as 3840Hz, and the white balance brightness is ≥ 8000cd/㎡;
Support single point correction, color temperature 6500-9500K manually adjustable;
The minimum average power consumption is 120W;
Visual angles H140 °, V120 °;
Can be fully maintained before/after.
The product has a protection level of IP65 before and after, suitable for various weather conditions
High Light Transmittance
Light transmittance:20%-60%
Low wind resistance
Great heat dissipation

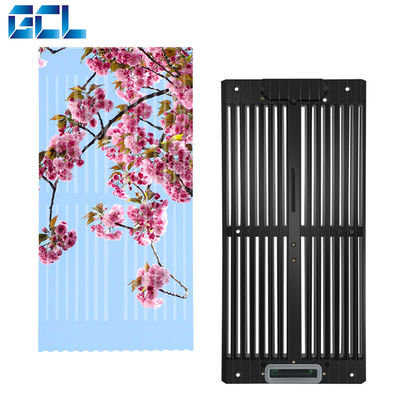

Light and Slim
Cabinet weight: 9.5kg(P10 SND)
11kg(P15.6 DIP)
Cabinet Thickness:45mm
Front &Rear Maintenance
All parts be dismounted from the front;
Both front and rear maintenance;
Easy Maintenance
Loose 8 screws to dismount each module
Loose 8 screws to dismount the front cover,
then dismount the power supply, receiving card and HUB card
Seamless 90°Splicing
Optional Curve Lock
Concave and convex curve;
Curve degree:-15° to+15°
Integrated Power and Signal Cable
Save 50% of the cable connecting time
