Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, UL, EMC, and ETL. GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. We have warehouses in America, Russia and Malaysia.

|

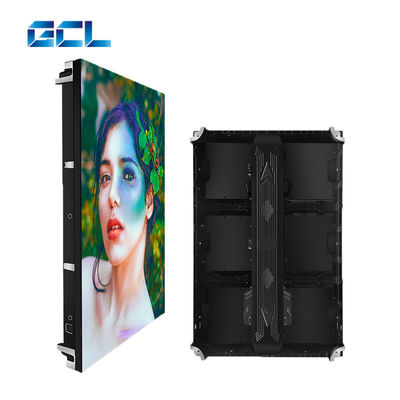

Die-casting Waterproof P4 P5 Giant Outdoor LED Video Wall Panel Screens for Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | outdoor P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | plywood,flight case,paper board |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Advertising, Adervertising | Color: | Customized |
|---|---|---|---|
| Panel Size: | 640*960mm | Brightness: | 6500cd/sqm |
| Module Size: | 320mm*160mm | LED Chip: | Nationstar |
| Refresh Rate: | 1920Hz-3840Hz | Cabinet Size: | 640*960mm |
| Viewing Angle: | 140/140 Degree | Material: | Die-casting |
| Warranty: | 3years | Certificate: | CE ROHS FCC |
| Pixel Pitch: | P4 | Port: | Shenzhen |
Product Description
Products Description
outdoor fixed installation led screen P5.9 P8 P10 Outdoor LED Display Advertising Billboard
|
Product
|
P4
|
P5.92
|
P8
|
P10
|
|||
|
Pitch(mm)
|
4
|
5.92
|
8
|
10
|
|||
|
Density(pixels/m2)
|
62500
|
28476
|
15625
|
10000
|
|||
|
LED Type
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD3535
|
|||
|
Brightness(nits)
|
5500
|
5500
|
5500
|
6000
|
|||
|
Scan Method
|
1/10
|
1/9
|
1/5
|
1/3
|
|||
|

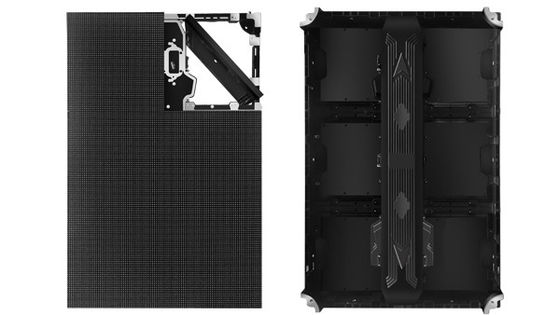

Cabinet Size(mm)
|
W640*H960T85mm
|
|
|
|
|||
|
Module Size(mm)
|
320*320mm
|
|
|
|
|||
|
Cabinet Material
|
Diecasting Aluminum
|
|
|
|
|||
|
Cabinet Weight(kg)
|
17
|
17
|
16.5
|
16
|
|||
|
Protection Level
|
IP65
|
|
|
|
|||
|
Cabinet Maintenance
|
Front and Rear Service
|
|
|
|
|||
|
Max Power Consumption
|
600w/m2
|
|
|
|
|||
|
Average Power Consumption
|
180w/m2
|
|
|
|
|||
|
Refresh Rate
|
1920-3840HZ
|
|
|
|
|||
|
Grey Scale
|
16 bit
|
|
|
|
|||
|
Viewing Angle
|
H140o,V1400 H1200 , V1200
|
|
|
|
|||
|
Voltage
|
AC100~240V(50-63Hz)
|
|
|
|
|||
|
Working Temperature
|
-40 oC - + 75 oC
|
|
|
|
|||
|
Working Humidity
|
10% -- 90%RH
|
|
|
|
|||
|
Color Temperature
|
6500-9500K
|
|
|
|
|||
|
Certificationa
|
EMC/CE/ROHS/CCC/FCC/ISO
|
|
|
|
|||
Installation GCL understands budgets and we are here to work with you and your budget of any size. Whether it is a Full-Installation, Assisted-Installation, or Remote-Installation we are ready to serve you. We believe 80% of our clients can install their own screen with their own staff and volunteers with video, face-time, and phone support from us with no extra cost. This is a huge savings for those on a budget. We can also send out a Project Manager to manage your team for a minimal cost or do the full install at a very affordable price.
Team Member When you buy from GCL, you are not only making a product purchase, but adding someone to your media and tech team. We will be there for the journey of bringing your vision to fruition and continuing to be a team member by assisting you with ongoing tech support and video wall expansion. So if you need us to jump on a conference call, help provide some creative ideas, or just need things to be explained is simplicity, we are here for you.
ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer which integrates research, development, manufacturing, engineering, installing, sales and aftersales service.
FAQ
Q1. I have never cooperated with your company before, nor have I visited your factory, how do I know that your company is trustworthy? GCL was founded in 1999, we are the most experienced LED display factory in China. All of our company information displayed on Alibaba, including our company video, has been verified by Alibaba. The fact that we have done a lot of magnificent government projects all over the world proves that we are a very professional company. The fact that we provide 3 years warranty while all the other companies provide only 2 years proves that we are more confident about our product quality. You can do the purchase and transfer the money through Trade Assurance on Alibaba, which would 100% project you from any fraud.
Q2.What is your payment terms? Standard payment terms:30% T/T deposit, 70% T/T before shipment. Other payments terms could also be acceptable upon negotiation; Q3. When working days after payment of deposit. Less than a week for our best sales products because we always keep about 500 square meters in stock. Q4. What technical supports can GCL offer? We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Let’s Discuss Your Solution
We do more than provide off the shelf solutions to your challenges. We listen and develop a solution that will work best for your unique situation. From indoor signs to changeable outdoor waterproof signs and Point of Sale integration, call us, we are GCL, the most professional manufacturer and supplier of Led displays, more than 21 years . Want to Know more details about this product
