500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh

500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh

Product Details:

Place of Origin: Guangdong, China
Brand Name: gcl
Certification: EMC/CE/ROHS/CCC/FCC/BIS
Model Number: Gmesh

Payment & Shipping Terms:

Minimum Order Quantity: Min. order: 20
Price: Price to be discussed
Packaging Details: Packing with Flight case & Wooden box & Hard paper box
Supply Ability: 5000 Square Meter/Square Meters per Month
Get Best Price Contact Now

Detail Information

Application: Outdoor Color: Full Color
Panel Size: 500*1000mm Warranty: 3 Years
Pixel Pitch: P15.6 Port: Shenzhen
Highlight:

Outdoor Transparent LED Display

,

Curtain Transparent LED Display

,

Curtain Outdoor Transparent LED Screen

Product Description

500*1000mm Panel Size Full Color Outdoor Transparent Mesh Curtain LED Display Screen


Products Description:

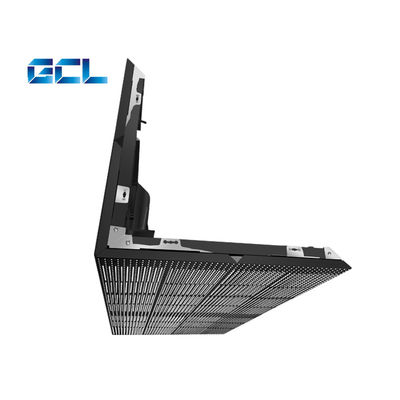

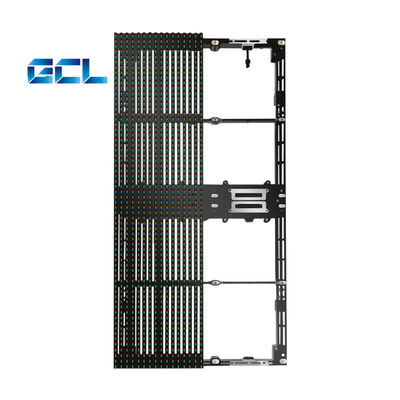

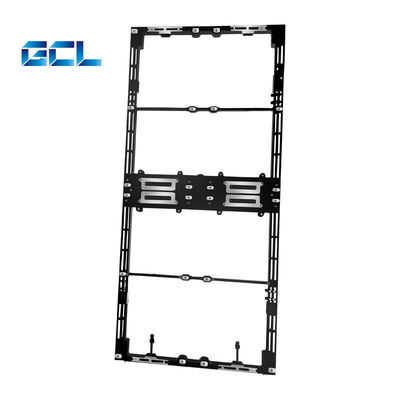

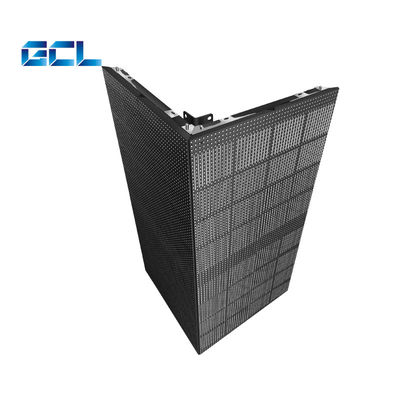

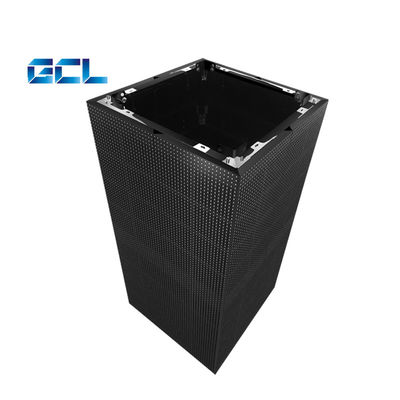

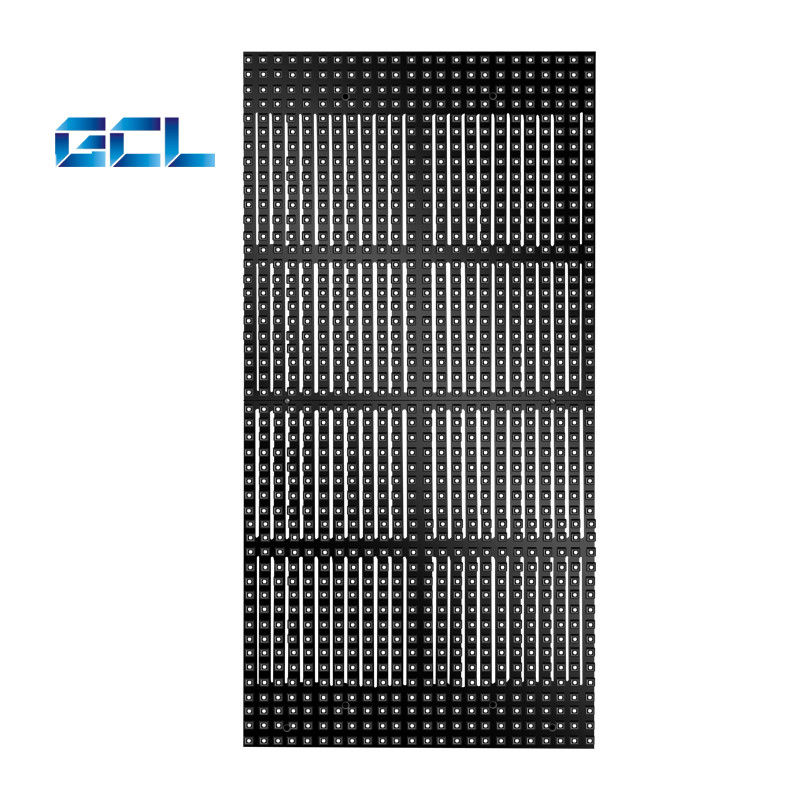

Using full die cast aluminum box, box size 500 * 1000 * 45mm, module size 250 * 500mm;
The lightest weight of the box is about 18kg;
The refresh rate is as high as 3840Hz, and the white balance brightness is ≥ 8000cd/㎡;
Support single point correction, color temperature 6500-9500K manually adjustable;
The minimum average power consumption is 220W;
Visual angles H140 °, V120 °;
Can be fully maintained before/after.
The product has a protection level of IP65 before and after, suitable for various weather conditions

500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 0

500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 1
500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 2
500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 3
500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 4
500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 5
500*1000mm Panel Size Outdoor Transparent LED Display Curtain LED Video Mesh 6

Parameters of Gmesh Series:



Name Gmesh10 Gmesh16-A Gmesh16-B Gmesh16-C Gmesh25
Module
LED Type SMD2727 SMD2727 DIP346 DIP346 DIP346
Pixel Pitch(mm) 10.4 15.625 15.625 31.25-15.625 25-31.25
Module Resolution 24*48 16*32 16*32 8*32 20*8
Module Size(mm) 250*500 250*500 250*500 250*500 500*250
Scan Method 1/3s Static Static Static Static
Cabinet
UnitResolution 2*2 2*2 2*2 2*2 2*2
Cabinet Resolution 48*96 32*64 32*64 16*64 40*16
Cabinet Size(mm) 500*1000*44 500*1000*45 500*1000*50 500*1000*50 1000*500*50
Cabinet Area(m²) 0.5
Cabinet Material Die-casting Aluminum
Cabinet Weight 19kg 18kg 22kg 15kg 14kg
Densiy (pixels/㎡) 9216 4096 4096 2048 1280
Protection Level Front &Rear Ip65
Optics
Brightness(nits/㎡) 5500 5000 10000 10000 8000
Calibration Support Single-dot Calibration
Color Temperature 1700-9500K Adjustable
Viewing Angle H140°,V120° H140°,V120° H100°,V50° H100°,V50° H100°,V50°
Transparency 30% 30% 30% 50% 60%
Light Decay Rate <3%
Contrast Ratio ≥9000:1
Grey Scale 13-16bit
Electric
Max Power Consumption/m² 640W 640W 400W 400W 400W
Average Power Consumption/㎡ 220W 220W 120W 120W 120W
Cabinet Maintenance Full Front/Rear Service
Input Voltage AC100~240V(50-60Hz)

Company Profile

Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines.

The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including EMC, CE, ROHS, CCC, FCC,   ISO.

GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.
