Name: Outdoor Full Color LED Screen With High Brightness And Refresh Rate Of 1920-3840Hz
Brand: Shenzhen GCL Electronics Co., Ltd
SKU: Gsurface
Availability: InStock

Brand Name:	GCL
Model Number:	Gsurface
MOQ:	Min. order: 20
Price:	Price to be discussed

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Type:

LED

Color:

Full Color

Panel Size:

960x960mm, 960x960mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:


Use:

Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education

Function:

SDK

Pixel Pitch:

10mm, 10mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

6000-10000nits, 6000-10000nits, 6000

Contrast Ratio:

2000:1, 2000:1

Lifespan (hours):

100000H, 100000H

IP Rating:

IP65, IP65

HS Code:

8528591090

Resolution:

96x96mm

View Angle（H/V）:

140/140, 140/140

Density:

10000

LED Type:

SMD3535 (3in1)

Scan Method:

1/3

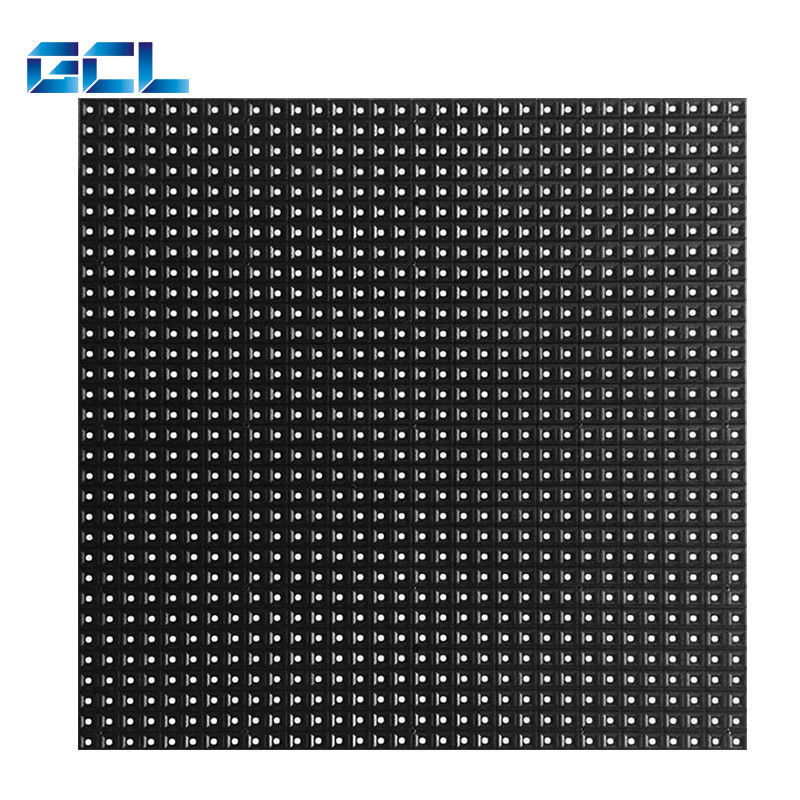

Module Size:

320*320mm

Cabinet Material:

Steel (Aluminum Optional)

Cabinet Weight:

40KG/sqm

Protection Level:

IP65

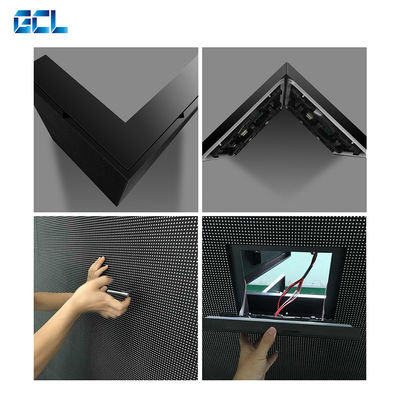

Cabinet Maintenance:

Front Service

Refresh Rate:

1920-3840hz

Highlight:

Outdoor Full Color LED Screen

High Brightness Outdoor ED Screen

Product Description

Products Description:

Outdoor advertising sign board P6 P8 P10 full front service led board display screen Iron steel cabinet

Product Parameter:

Model	Gsurface10	Gsurface8	Gsurface5.95
Pixel Pitch (mm)	10	8	5.95
Pixel Density (dot/m2)	10000	15625	28476
LED Type	SMD3535	SMD3535	SMD2727
Scanning	3S	5S	9S
Module Size (mm)	320*320	320*320	320*320
Cabinet Size (mm)	Customized
Cabinet Weight (±0.25Kg)	40kg/㎡
Cabinet Resolution (PX* PX)	Customized
Cabinet Material	Steel (or Aluminum)
Brightness (CD/m2)	6500
Maximum Power Consumption (w/sqm)	720
Average Power Consumption (w/sqm)	240
Horizontal Viewing Angle (Deg)	140°
Vertical Viewing Angle (Deg)	140°
Grey Scale(bit)	16
Refresh Rate (Hz)	1920-3840Hz
Input Voltage (V)	110-240V
Input Frequency (Hz)	60
Storage Temperature (℃)	﹣40℃－﹢80℃
Working Temperature(℃)	﹣20℃－﹢65℃
Working Humidity (RH)	95%
Cabinet Curve	Outward&Inward
Waterproof Level	IP65
Working Environment	Outdoor
Installation Type	Fixed installation
