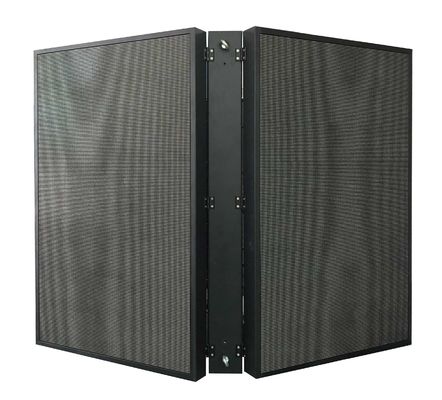

Outdoor Iron Cabinet P4 P5 P6 Led Display Screen for Advertising Digital Billboard

Brand Name:	GCL
Model Number:	Gsurface
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Plywood Case Flight Case

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Color:

FULL COLOR

Panel Size:

320*320mm

Usage:

Outdoor Waterproof

Display Function:

Animation

Brightness:

6000nits

IP Rate:

IP65/IP65

Viewing Angle:

140/140 Degree

Refresh Rate:

1920Hz-3840Hz

LED Chip:

Nationstar

Cabinet Material:

Iron

Control System:

Novastar

Warranty:

3 Years

Pixel Pitch:

P4 P5 P6 P8 P10

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

Outdoor Iron Cabinet LED Display Screen

Advertising Digital Billboard LED Display Screen

P6 Led Display Screen

Product Description

Products Description

Outdoor advertising sign board P6 P8 P10 full front service led board display screen Iron steel cabinet

Model	P4	P6	P8
Pixel Pitch (mm)	4	6	8
Pixel Density (dot/m2)	62500	27777	15625
LED Type	SMD1921	SMD3535	SMD3535
Scanning	8S	8S	4S
Module Size (mm)	256*128	256*128	256*128
Cabinet Size (mm)	Customized			Customized	Customized
Cabinet Weight (±0.25Kg)	40kg/㎡			45kg/㎡	45kg/㎡
Cabinet Resolution (PX* PX)	Customized			Customized	Customized
Cabinet Material	Steel (or Aluminum)			Steel (or Aluminum)	Steel (or Aluminum)
Brightness (CD/m2)	5500~6500			6500	6000
Maximum Power Consumption (w/sqm)	720			720	720
Average Power Consumption (w/sqm)	240			240	240
Horizontal Viewing Angle (Deg)	140°			140°	140°
Vertical Viewing Angle (Deg)	140°			140°	140°
Grey Scale(bit)	16			16	16
Refresh Rate (Hz)	1920-3840Hz			1920-3840Hz	1920-3840Hz
Input Voltage (V)	110-240V			110-240V	110-240V
Input Frequency (Hz)	60			60	60
Storage Temperature (℃)	﹣40℃－﹢80℃			﹣40℃－﹢80℃	﹣40℃－﹢80℃
Working Temperature(℃)	﹣20℃－﹢65℃			﹣20℃－﹢65℃	﹣20℃－﹢65℃
Working Humidity (RH)	95%			95%	95%
Cabinet Curve	Outward&Inward			Outward&Inward	Outward&Inward
Waterproof Level	IP65			IP65	IP65
Working Environment	Outdoor			Outdoor	Outdoor
Installation Type	Fixed installation				Fixed installation

Certifications

Exhibition

Our Advantages

1.GCL has been a professional led display suppier for 21 years.

2.Provide 3 years or more warranty but 95% supplier provide only 2 years.

3. Free technique training and can send engineer to your country to help with the led project if requested.

4.GCL based in shenzhen but we have warehouse and office in Dallas, The united states,and Russia.

FAQ

Q1. Is GCL a manufacturer or a trading company?
Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.

Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.

Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.

Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.

Q5. What technical supports can GCL offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.

Q6. Do you provide any free spare parts in each order?

Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED diod, IC, module mask, power supply, receiving card, etc.
