SMD P10.42 P15.6 Outdoor LED Screen

Brand Name:	GCL
Model Number:	Gmesh
MOQ:	Min. order: 20
Price:	1 - 9 pieces $308， 10 - 19 pieces $298， >= 20 pieces $270
Packaging Details:	plywood,flight case,paper board
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor

Color:

Full Color

Panel Size:

500*1000mm

Density Pixels:

LED Type:

SMD2727

Brightness:

5500nits

Warranty:

3 Years

Module Size:

250*500mm

Material:

Diecasting Aluminum

Life Span:

100000hours

Scan Method:

Refresh Rate:

2880-3840HZ

Weight:

Pixel Pitch:

10.42

Port:

Yantian(Shenzhen) Shekou(Shenzhen)

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

P15.6 Outdoor LED Screen

P10.42 Outdoor LED Screen

P10.42 SMD LED Screen

Product Description

There are 4 physical pictures (1 back +1 side +1 led chip type) +1 easy maintenance +1 curving lock pictures in total 5

Detailed Images

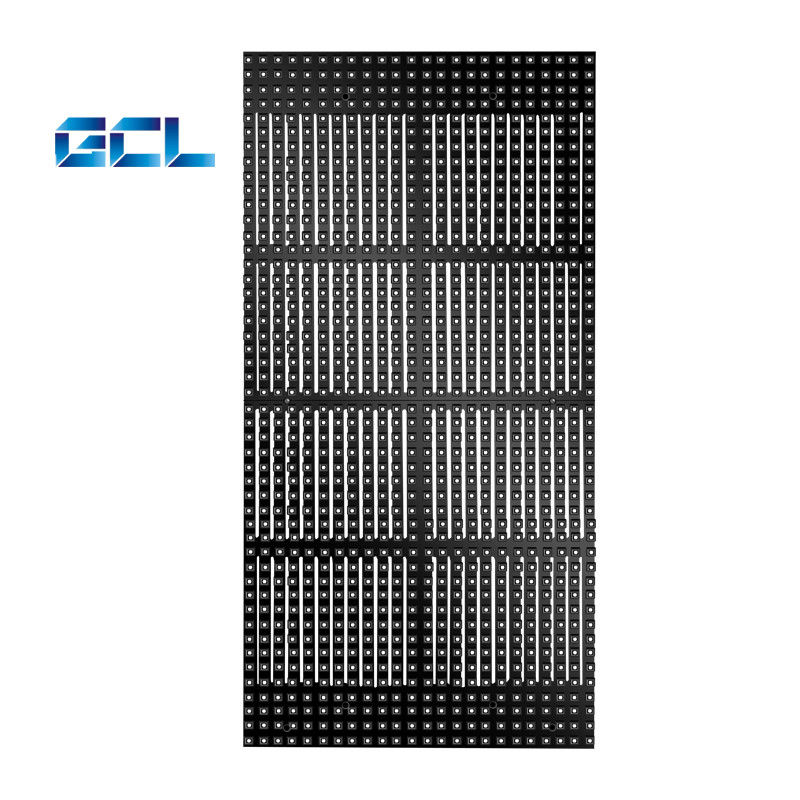

Product detail drawing

Cabinet material is Die-casting aluminum with flexible design.

Ultra light cabinet weight 9KG and slim.

Smart lock system,easy installation.

Gmesh pitch is 15.6mm and density is 4096 pixels/square meter.

Brightness is more than 8000 nits.

30% high transparency.

Optional curve lock.

Concave and convex curve.

Curve degree:-15°~+15°

Front&back maintenance.

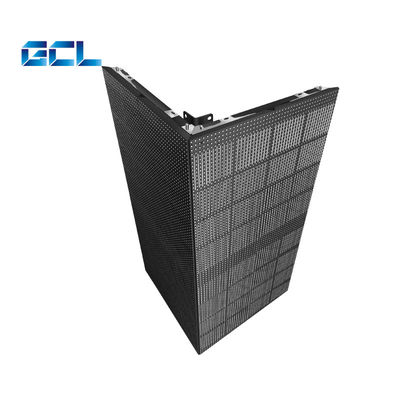

Seamless 90 Degree Splicing

curve cabinet is fixed to the body frame fixed firmware process is simple, smart lock system,easy to operate.

DIP346 LED Typ

High refresh rate 2880-3840HZ ensure the picture is clear and stable. DIP full color led chip high brightness and high transparency

IP65 Protection Level

High quality Seetronic, Reunion, Neutric brand aviation plug are available.Waterproof protection IP65 apply to both outdoor fixed and rental projects.

Front&Back Maintenance

9KG Die-casting aluminum material cabinet 500*1000mm,ultra light and slim.The whole cabinet can be removed easily from the wall.

Product Presentation

Product introduction:

Product	P7.8-3.9	P10	P16-A	P16-B	P16-C	P25	P31.25
Pitch	7.8-3.9mm	10.4mm	15.625mm	15.625mm	15.625-31.25mm	25-31.25mm	31.25mm
Density(pixels/m²)	32768	9216	4096	4096	2048	1280	1024
LED Type	SMD1921	SMD2727	SMD3535	DIP346	DIP346	DIP346	DIP346
Brightness	5500nits	5500nits	6000nits	10000nits	10000nits	10000nits	10000nits
Scan Method	1/8	1/3	Static	Static	Static	Static	Static
Panel Size	500×1000mm
Module Size	250×500mm
Panel Material	Die-casting Aluminum
Panel Weight	9kg	9kg	9kg	10.5kg	10.5kg	10.5kg	10.5kg
Protection Level	IP65
Maintenance	Front&Rear Service
Max Power Consumption	680W/㎡	680W/㎡	680W/㎡	350W/㎡	350W/㎡	350W/㎡	350W/㎡
Average Power Consumption	220W/㎡	220W/㎡	220W/㎡	110W/㎡	110W/㎡	110W/㎡	110W/㎡
Refresh Rate	3840Hz
Grey Scale	16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°	H100°,V50°	H100°,V50°	H100°,V50°	H100°,V50°
Voltage	AC100~240V(50-60Hz)
Working Temperature	‘-30℃ to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

Q1. Why is the Alibaba account of your company only one year old?

We have two Alibaba accounts, both under the same company name. The first one is 11 years old. To boost our sales, we registered a new Alibaba account in 2020.

Q2. I have never cooperated with your company before, nor have I visited your factory, how do I know that your company is trustworthy? GCL was founded in 1999, we are the most experienced LED display factory in China. All of our company information displayed on Alibaba, including our company video, has been verified by Alibaba. The fact that we have done a lot of magnificent government projects all over the world proves that we are a very professional company. The fact that we provide 3 years warranty while all the other companies provide only 2 years proves that we are more confident about our product quality. You can do the purchase and transfer the money through Trade Assurance on Alibaba, which would 100% project you from any fraud.

Q3.What is your payment terms?

Standard payment terms:30% T/T deposit, 70% T/T before shipment. Other payments terms could also be acceptable upon negotiation;

Q4. What is the delivery time?

Usually 15-18 working days after payment of deposit. Less than a week for our best sales products because we always keep about 500 square meters in stock.

Q7. What technical supports can GCL offer? We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.

Q8: What controlling system do you use ? Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc. Q9. Do you provide any free spare parts in each order? Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED diod , IC, module mask, power supply, receiving card,
