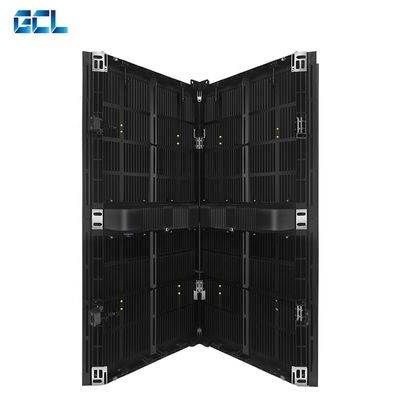

Seamless 90 Degree Splicing
curve cabinet is fixed to the body frame fixed firmware process is simple, smart lock system,easy to operate.

|

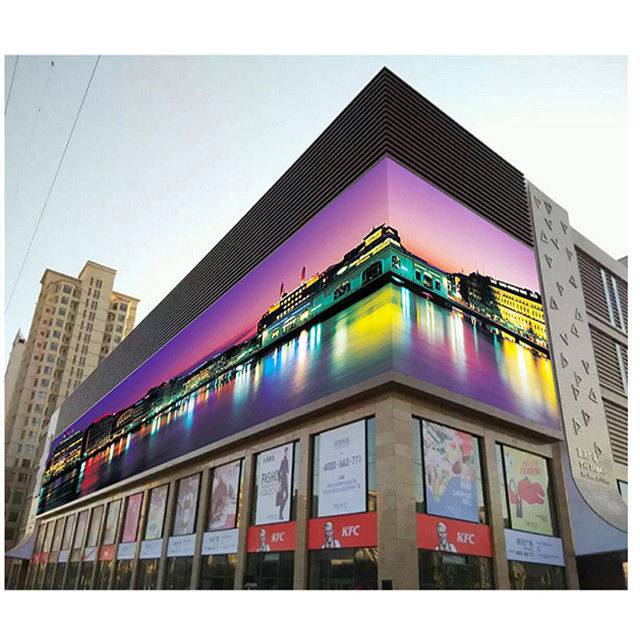

8500nits Brightness Outdoor P10 P15.6 Flexible Building Window Curtain LED Mesh Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | P15.6 mesh led screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | plywood,flight case,paper board |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Black, Silver, White |
|---|---|---|---|
| Panel Size: | 500*1000mm | LED Chip: | DIP346 |
| Module Size: | 250*500mm | Brightness: | 8500nits |
| Refresh Rate: | 1920Hz-3840Hz | Life Span: | 10000hours |
| Viewing Angle: | 120/120 Degree | Warranty: | 3 Years |
| Material: | Waterproof Diecasting Cabinet | IP Rate: | IP65/IP65 |
| Voltage: | 110-240V/50-60HZ | Pixel Pitch: | 15.6 |
| Port: | Yantian(Shenzhen) Shekou(Shenzhen) | ||
Product Description
There are 4 physical pictures (1 back +1 side +1 led chip type) +1 easy maintenance +1 curving lock pictures in total 5
Detailed Images
Product detail drawing
Cabinet material is Die-casting aluminum with flexible design.
Ultra light cabinet weight 9KG and slim.
Smart lock system,easy installation.
Gmesh pitch is 15.6mm and density is 4096 pixels/square meter.
Brightness is more than 8000 nits.
30% high transparency.
Optional curve lock.

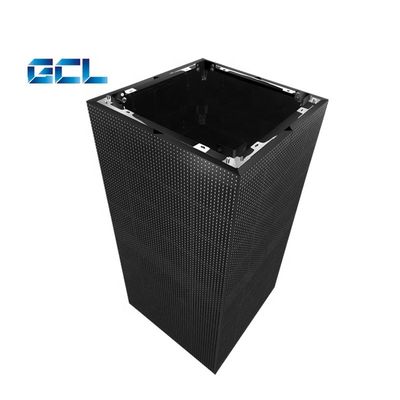

Concave and convex curve.
Curve degree:-15°~+15°
Front&back maintenance.
DIP346 LED Type
High refresh rate 2880-3840HZ ensure the picture is clear and stable. DIP full color led chip high brightness and high transparency

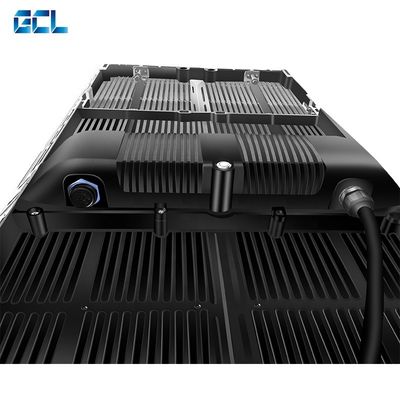

IP65 Protection Level
High quality Seetronic, Reunion, Neutric brand aviation plug are available.Waterproof protection IP65 apply to both outdoor fixed and rental projects.

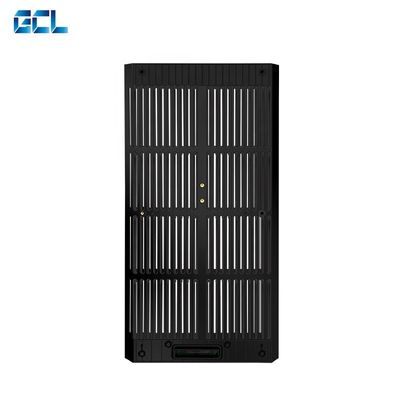

9KG Die-casting aluminum material cabinet 500*1000mm,ultra light and slim.The whole cabinet can be removed easily from the wall.
Product Presentation
|
Product Name
|
P15.6 LED Mesh Screen
|
|
Density(pixels/m²)
|
4096
|
|
LED Type
|
DIP 346
|
|
Module Size
|
250*500mm
|
|
Scan Method
|
Static
|
|
Brightness
|
8000nit
|
|
Cabinet Material
|
Die-casting Aluminum
|
-
Size introduction and size picture
|
Pitch
|
LED Type
|
Cabinet Size
|
Protection Level
|
Transparency
|
|
10.42mm
|
SMD3535
|
500*1000mm
|
IP65
|
20%
|
|
15.6mm
|
SMD3535
|
500*1000mm
|
IP65
|
30%
|
|
15.6mm
|
DIP346
|
500*1000mm
|
IP65
|
25%
|
|
25mm
|
DIP346
|
1000*1000mm
|
IP65
|
Available
|
|
31.25mm
|
DIP346
|
1000*1000mm
|
IP65
|
Available
|
ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer which integrates research, development, manufacturing, engineering, installing, sales and aftersales service. Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, EMC. GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. We have warehouses in America, Russia and Malaysia,Poland.
Q1. Is GCL a manufacturer or a trading company? Manufacturer. GCL has been a professional LED screen manufacturer for more than 21 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees. Q2. Why is the Alibaba account of your company only one year old? We have two Alibaba accounts, both under the same company name. The first one is 11 years old. To boost our sales, we registered a new Alibaba account in 2020. Q3. I have never cooperated with your company before, nor have I visited your factory, how do I know that your company is trustworthy? GCL was founded in 1999, we are the most experienced LED display factory in China. All of our company information displayed on Alibaba, including our company video, has been verified by Alibaba. The fact that we have done a lot of magnificent government projects all over the world proves that we are a very professional company. The fact that we provide 3 years warranty while all the other companies provide only 2 years proves that we are more confident about our product quality. You can do the purchase and transfer the money through Trade Assurance on Alibaba, which would 100% project you from any fraud.
Q4.What is your payment terms? Standard payment terms:30% T/T deposit, 70% T/T before shipment. Other payments terms could also be acceptable upon negotiation; Q5. What is the delivery time? Usually 15-18 working days after payment of deposit. Less than a week for our best sales products because we always keep about 500 square meters in stock. Q6. What technical supports can GCL offer? We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Q7: What controlling system do you use ? Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc. Q8. Do you provide any free spare parts in each order? Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED diod , IC, module mask, power supply, receiving card, etc.
