1.56mm Small Pitch LED Display For High Refresh Rate 4K HD Video Wall

Brand Name:	GCL
Model Number:	GTV
MOQ:	Min. order: 20
Price:	Negotiable
Packaging Details:	plywood,flight case,paper board

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Indoor Video

Color:

Full Color

Panel Size:

600*337*63mm

Use:

Medical Treatment

Pixel Pitch:

1.8mm, 1.56

Specification:

Kiosk

Brightness:

800nits

Density(pixels/m2):

409600

LED Type:

SMD1010 (3in1)

Scan Method:

1/27

Material:

Die Casting Aluminum

Weight:

7.5KG

Module Size:

150*168.5mm

Protection Level:

IP31

Refresh Rate:

3840HZ

Viewing Angle:

H160/V160

Port:

Yantian(Shenzhen) Shekou(Shenzhen)

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

1.56mm Small Pitch LED Display

4K Small Pitch LED Display

High Refresh Rate Small Pixel Screen

Product Description

P1.56mm Pixel Pitch LED Display for High Refresh Rate 4K HD Video Wall P1.2 P1.5 P1.9

The P1.25 small pitch LED display is a high-definition, high refresh rate, low gray, and high-brightness display screen, suitable for indoor command and control rooms, studios, and other venues.

With a cabinet size of 600*337.5mm and pitches of P0.9 and P1.25, it can provide an outstanding visual experience.

This display screen utilizes advanced LED technology to present detailed and vivid images and videos, allowing the audience to enjoy high-quality audiovisual effects. With its high refresh rate and low gray, high brightness features,

The small pitch LED display can deliver smoother and clearer images when playing high-speed videos and dynamic content.

The P1.25 small pitch LED display is a fully front-maintainable, stable performance display device with a three-year warranty, capable of meeting a wide range of indoor high-definition display requirements.

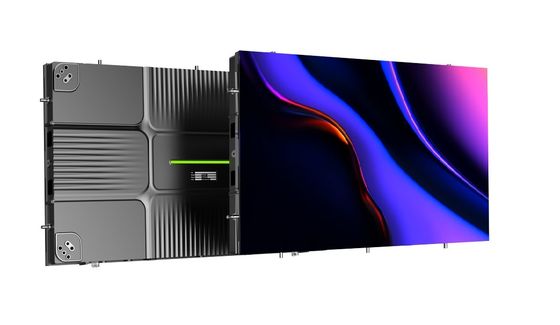

100% Front Service
All modules , power supply and other parts can be dismounted from the front.

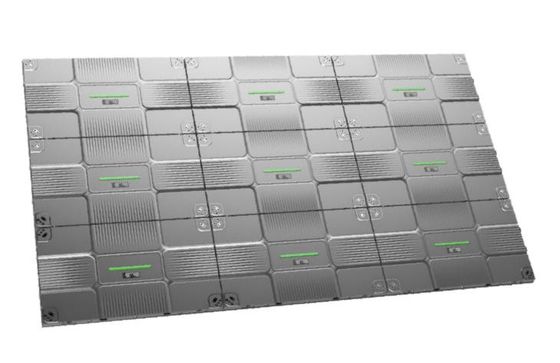

Flexible Installations
There are 3 ways for installation:
1. Hanging; 2. Stacking; 3. Mounting on the wall.

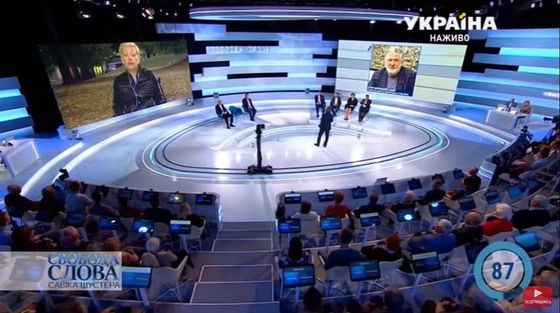

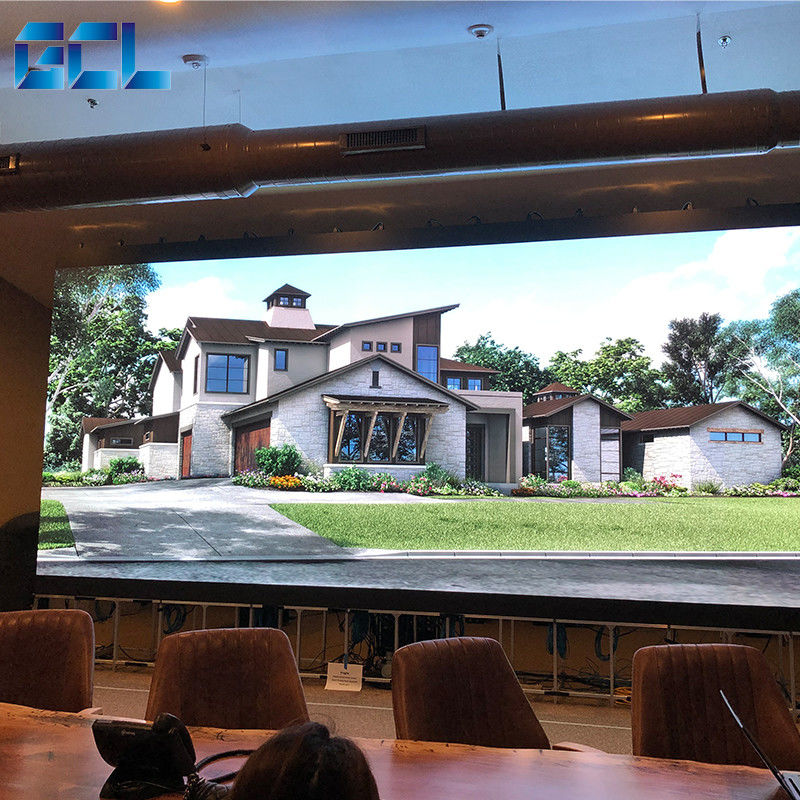

Application Scenarios:
Business Display
Conference Display
Professional display

Parameters of Gtv:

Name	P1.2	P1.5
Module
LED Type	SMD1010	SMD1212
Pixel Pitch(mm)	1.25	1.56
Module Resolution	120*135	96*108
Module Size(mm)	150*168.75	150*168.75
Scan Method	1/27s	1/27s
Cabinet
Unit Resolution	4*2	4*2
Cabinet Resolution	480*270	384*216
Cabinet Size(mm)	600337.563

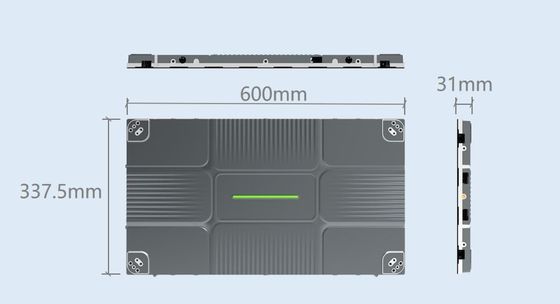

Cabinet Area(㎡)	0.2025
Cabinet Material	Profile Aluminum
CabinetWeight	7.5kg
Densiy (pixels/㎡)	640000	409600
Protection Level	IP31
Optics
Brightness(nits/㎡)	≥600nits
Calibration	Support Single-dot Calibration
Color Temperature	3000-10000K Adjustable
Viewing Angle	H160°,V160°
Light Decay Rate	<3%
ContrastRatio	9000:1
Grey Scale	13-16bit
Electric
Max Power Consumption/㎡	500W	500W
Average Power Consumption/㎡	150W	150W
Cabinet Maintenance	Full Front Service
Input Voltage	AC100~240V(50-60Hz)
