High Resolution LED Digital Signage Display Die Casting Aluminum For Classroom Church
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flightcase |
| Delivery Time: | 15-20Days |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm |
| Supplier Type: | Original Manufacturer, ODM | Media Available: | Datasheet, Photo, EDA/CAD Models, Other |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 2.5mm |
| Specification: | Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 1000nits | Pixel Density: | 160000 Dots/㎡ |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | 34 |
| HS Code: | 8528591090 | Resolution: | 2K-4K |
| View Angle（H/V）: | H160°/V140° | ||
| Highlight: | High Resolution LED Digital Signage Display,Die Casting LED Digital Signage Display,Aluminum Indoor Display Screen |
||
Product Description
P1.5/P1.8/P2mm Pixel Pitch Indoor 640*480mm Die-casting Aluminum LED Vido Wall for Classroom Church

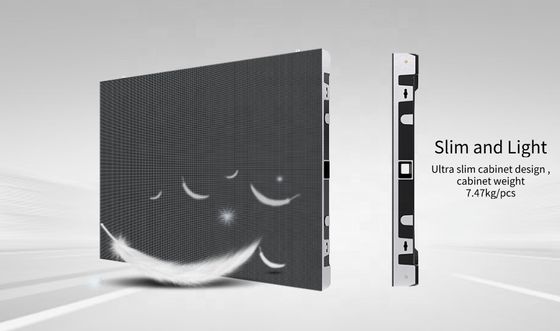

Ultra Light and Thin Cabinet Design
Die-casting aluminum cabinet,thickness:75mm weight:7kg
Magnetic module with front maintenance,quick and convenient maintenance;

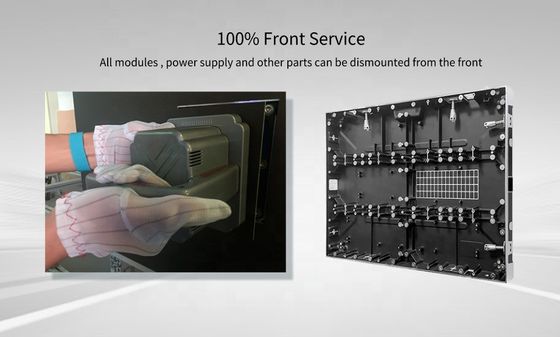

100% Front Service
All modules , power supply and other parts can be dismounted from the front
Full Redundancy
A backup can be installed for both power and signal
Power&Signal Connector Back-up
2power connectors and 4 signal connectors on each cabinet
4:3 Ratio
Cabine size W640*H480mm,the screen size ratio is always 4;3
When there are the same amount of cabinets vertically and horizontally
Easy Installation
4 plates at the corners of each cabinet can be dismounted easily,
Easier for installation for front service screens

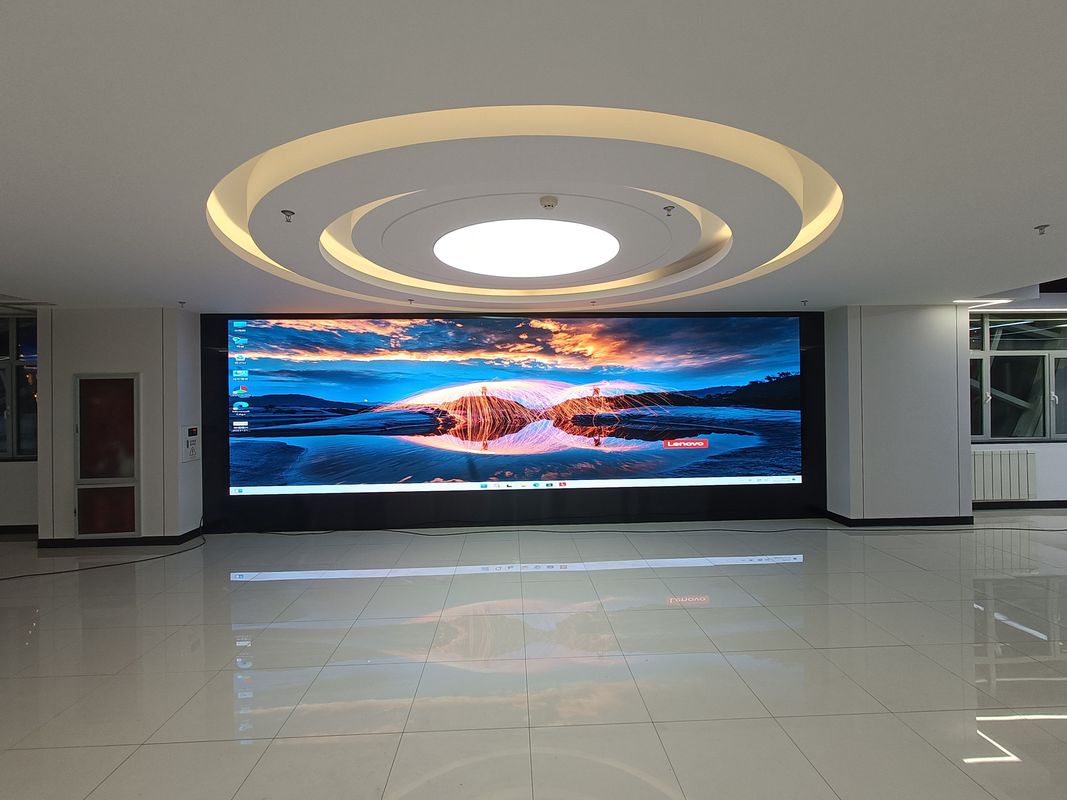

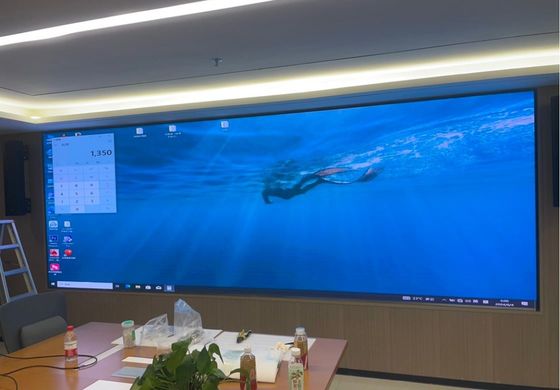

Application Scenarios
advertising publish, retail store, shopping mall, welcome display, airport, subway, elevator, Restaurant & Hotel Supplies, education, hotel lobby, school classroom, exhibition centre hallway
Parameters of Gspark Series
| Name | P1.5 | P1.8 | P2 | |
| Module | ||||
| LED Type | SMD1212 | SMD1515 | SMD1515 | |
| Pixel Pitch(mm) | 1.538 | 1.818 | 2 | |
| Module Resolution | 208*104 | 176*88 | 160*80 | |
| Module Size(mm) | 320*160 | |||
| Scan Method | 1/52s | 1/44s | 1/40s | |
| Cabinet | ||||
| Unit Resolution | 2*3 | |||
| Cabinet Resolution | 416*312 | 352*264 | 320*240 | |
| Cabinet Size(mm) | 640*480*75 | |||
| Cabinet Area(㎡) | 0.3072 | |||
| Cabinet Material | Profile Aluminum | |||
| CabinetWeight | 7.47kg | 7.4kg | 7.3kg | |
| Densiy (pixels/㎡) | 422756 | 302557 | 250000 | |
| Protection Level | IP34 | |||
| Optics | ||||
| Brightress (nits/㎡) | 600nits | 800nits | 800nits | |
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-9500K Adjustable | |||
| Viewing Angle | H160°,V140° | |||
| Light Decay Rate | <3% | |||
| ContrastRatio | 9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 540W | |||
| Average Power Consumption/㎡ | 180W | |||
| Cabinet Maintenance | Full Front Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
| Performance | ||||
| Drive Mode | Constant Current Drive | |||
| Refresh Rate | ≥3840Hz | |||
| Frame Rate | 50Hz/60Hz | |||
| Working Condition | ||||
| Working TemperatureWoking Humidiy | -30℃~+65℃/10%-90%RH | |||
| Storage Temperature/Storage Humidity | -30℃~+65℃/10%-90%RH | |||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |||
