High Resolution Full Color Indoor LED Display Screen With Network Control
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment |
| Specification: | Digital Poster, Video Wall | Brightness: | 800nits, 800nits |
| Contrast Ratio: | 5000:1 | IP Rating: | IP 34 |
| Resolution: | 3840Hz | View Angle（H/V）: | H160°/V140° |
| Module Size: | 320*160mm | Warranty: | 3years |
| Cabinet Material: | Die Casting Alunimum | Viewing Angle: | H160° V140° |
| Refresh Rate: | 3840Hz | Weight: | 8.5Kg/panel |
| Scan Method: | 1/20S | ||
| Highlight: | High Resolution Indoor LED Display Screen,Network Control Indoor LED Display Screen,High Resolution Small Pitch LED Display |
||
Product Description
HD Indoor LED Display Screen Vidoe Wall Full Color SMD1515P1.5, P1.8,P2
Die-Casting Aluminum Design
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands.
Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with a humanized design is stronger, more light-weight, and precise. This LED panel is highly praised for a better user experience
HD Narrow Pixel Pitch
3840HZ high refresh rate with high brightness, and fast assembling, light & thin, and good heat dissipation.
By adopting high tech GOB technology, the screen is waterproof and anti-collision.
100% front maintenance.
Fully front maintenance modules, Full redundancy,power supply, data,HUB cards and receving cards.

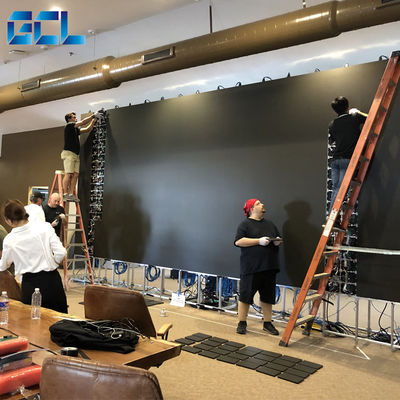

Easy Installation.
Connectors only,no cables,more stable.Ratio is 16:9 depth only 63mm ultra slim design,
Multiple Functions
This indoor LED panel is usually be used for:
- Fashion shop

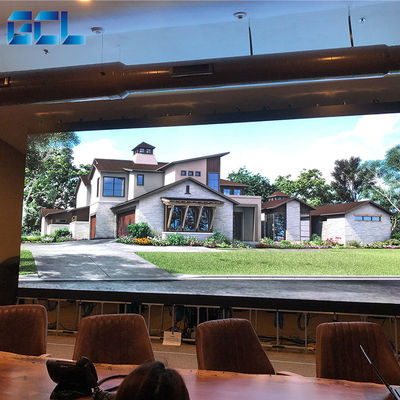

- Meeting room
- Church
- Indoor advertising
- Airport
Parameters of Gspark Series
| Name | P1.5 | P1.8 | P2 | P2.5 | P3.07 | P4 | |
| Module | |||||||
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD2121 | |
| Pixel Pitch(mm) | 1.538 | 1.818 | 2 | 2.5 | 3.07 | 4 | |
| Module Resolution | 208*104 | 176*88 | 160*80 | 128*64 | 104*52 | 80*40 | |
| Module Size(mm) | 320*160 | ||||||
| Scan Method | 1/52s | 1/44s | 1/40s | 1/32s | 1/26s | 1/20s | |
| Cabinet | |||||||
| Unit Resolution | 2*3 | ||||||
| Cabinet Resolution | 416*312 | 352*264 | 320*240 | 256*192 | 208*156 | 160*120 | |
| Cabinet Size(mm) | 640*480*75 | ||||||
| Cabinet Area(m) | 0.3072 | ||||||
| Cabinet Material | Profile Aluminum | ||||||
| CabinetWeight | 7.47kg | 7.4kg | 7.3kg | 7.24kg | 7.16kg | 7.1kg | |
| Densiy (pixels/m) | 422756 | 302557 | 250000 | 160000 | 105688 | 62500 | |
| Protection Level | IP34 | ||||||
| Optics | |||||||
| Brightress (nits) | 600nits | 800nits | 800nits | 800nits | 1000nits | 1000nits | |
| Calibration | Support Single-dot Calibration | ||||||
| Color Temperature | 3000-9500K Adjustable | ||||||
| Viewing Angle | H160°,V140° | ||||||
| Light Decay Rate | <3% | ||||||
| ContrastRatio | 9000:1 | ||||||
| Grey Scale | 13-16bit | ||||||
| Electric | |||||||
| Max Power Consumption/m | 540W | ||||||
| Average Power Consumption/m | 180W | ||||||
| Cabinet Maintenance | Full Front Service | ||||||
| Input Voltage | AC100~240V(50-60Hz) | ||||||
| Performance | |||||||
| Drive Mode | Constant Current Drive | ||||||
| Refresh Rate | ≥3840Hz | ||||||
| Frame Rate | 50Hz/60Hz | ||||||
| Working Condition | |||||||
| Working TemperatureWoking Humidiy | -30℃~+65℃/10%-90%RH | ||||||
| Storage Temperature/Storage Humidity | -30℃~+65℃/10%-90%RH | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||||||
