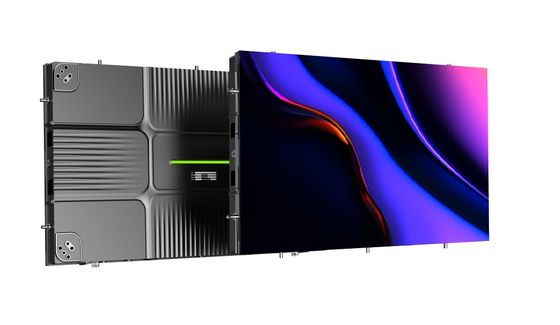

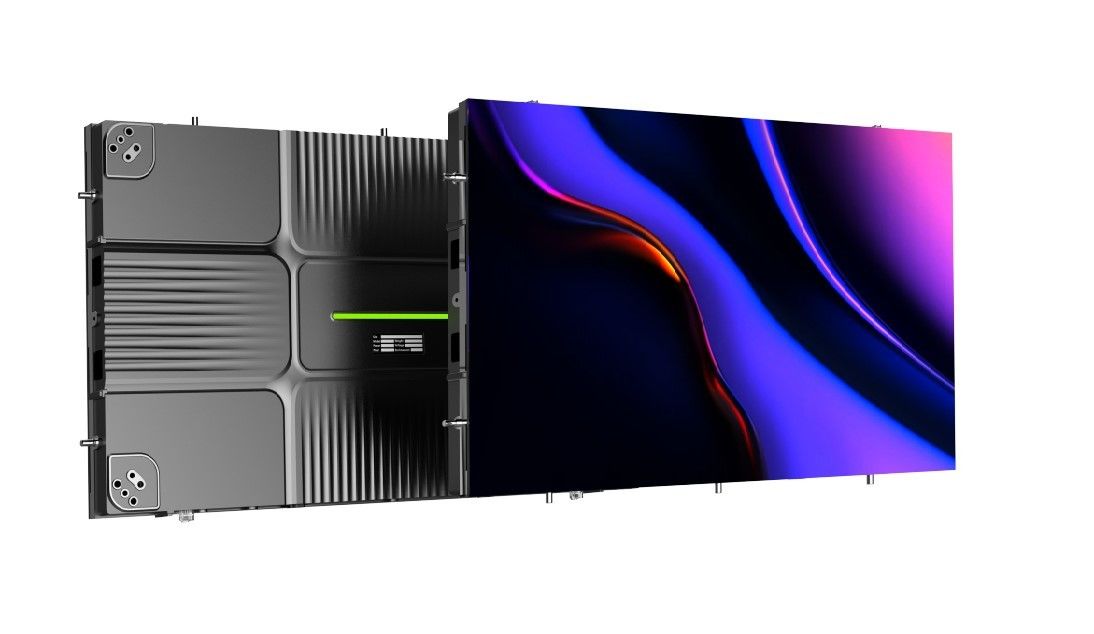

P1.5mm Pixel Pitch COB HD LED Display Video Wall Chinese Origin Manufacturers
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flightcase |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337.5mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Broading Studio, Monitoring Center, Meeting Room, School Classroom | Pixel Pitch: | 1.2mm\1.5mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | ≥600nits, ≥600nits | Pixel Density: | 409600 |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | IP 34 |
| HS Code: | 8528591090 | Resolution: | 2k-4k |
| View Angle（H/V）: | H160°/V160° | Pixels: | 640000 |
| LED Type: | SMD1010 | Scan Method: | 1/27 |
| Module Size: | 150*168.5mm | Weight: | 7.5kg |
| Material: | Die-Casting Aluminum | Protection Level: | IP34 |
| Cabinet Maintenance: | Full Front Service | Refresh Rate: | 3840Hz |
| Highlight: | 1.5mm Pixel Pitch HD LED Display,Full Color Small Pitch LED Display,1.5mm Pixel Pitch Indoor Display Screen |
||
Product Description
Pixel: PH0.9mm/1.2mm/1.5mm/1.875mm
100% full front service maintenance
Full redundancy: power supply data, receiving card
63mm thickness, Ultra slim design
3840Hz~7680Hz high refresh
Cabinet 16:9 ratio
Weight: 6.5kg/panel
High Resolution
Fine pixel pitches form high resolution, which can capture and hold the attention of passerby.
Visual Performance
High contrast: The contrast ratio of the LED screen gives a sharp image quality.
Energy Saving
We use customized PCB and power supply, so average power consumption is less than 150W/sqm
| Product | P0.9 | P1.2 | P1.5 | P1.875 |
| Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| Density(pixels/m²) | 1137777 | 640000 | 409600 | 284444 |
| LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
| Brightness | ≥600nits | |||
| Scan Method | 1/36 | 1/45 | 1/54 | 1/45 |
| Panel Size | 600×337.5×32mm | |||
| Module Size | 150×168.75mm | 300×168.75mm | 300×168.75mm | 300×168.75mm |
| Panel Material | Die-casting Aluminum | |||
| Panel Weight | 4kg | |||
| Protection Level | IP31 | |||
| Maintenance | Full Front Service | |||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average PowerConsumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | ≥3840Hz | |||
| Grey Scale | 13-16bit | |||
| Viewing Angle | H160°,V160° | |||
| Voltage | AC100~240V(50-60Hz) | |||
| Working Temperature | -20℃to 60℃ | |||
| Working Humidity | 10%-90%RH | |||
| Color Temperature | 3000-9500K | |||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |||
Product packaging
FAQ
Q1. Is GCL a manufacturer or a trading company?
Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.
Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.
Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.
Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.
Q5. What technical supports can GCL offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Q6: What controlling system do you use ?
Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc.
Q7. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
diod,IC, module mask, power supply, receiving card, etc.
Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.
Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.
Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.
Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.
Q5. What technical supports can GCL offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.
Q6: What controlling system do you use ?
Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc.
Q7. Do you provide any free spare parts in each order?
Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
diod,IC, module mask, power supply, receiving card, etc.
