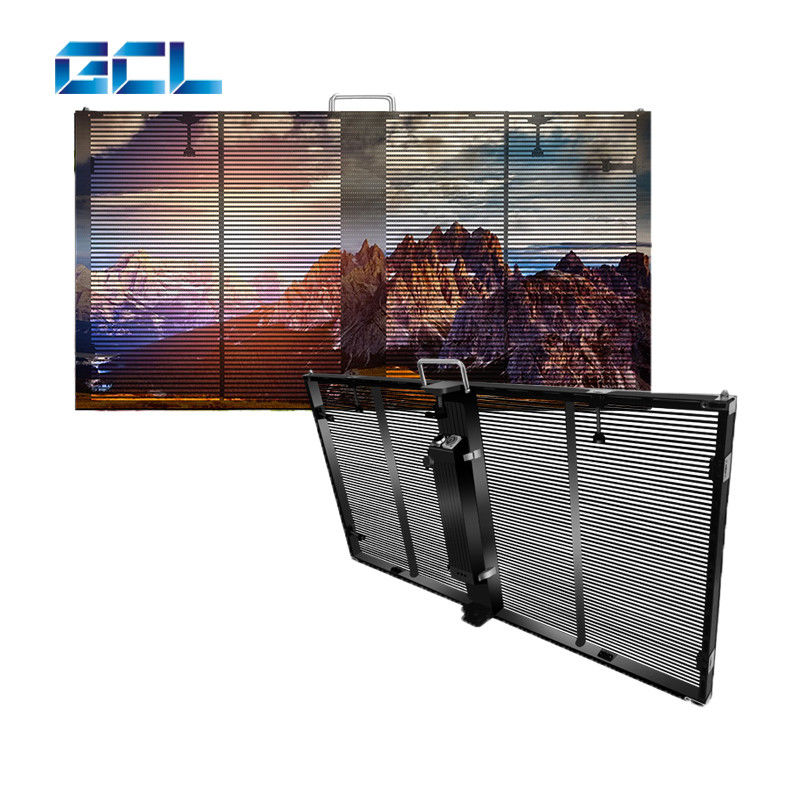

High Definition GCL P3.9 Transparent LED Display Waterproof Easy Installation

Brand Name:	GCL
Model Number:	Gair
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	To protect the LED screen well during the long transportation : 1) If it's for rental use, we will pack all cabinets by flight cases; 2) If it's for fixed installation, we will pack all cabinets by plywood cases.

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Indoor

Type:

LED

Color:

Full Color

Panel Size:

500*1000mm

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other, Video

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Advertising Media, Landmark Building, Car Dealership

Pixel Pitch:

3.9-7.8, 3.9-7.8mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

2000, 2000nits

Pixel Density:

32768

Contrast Ratio:

5000:1

Color Depth:

256

Lifespan (hours):

100,000

IP Rating:

IP 42

Resolution:

2K-4K

View Angle（H/V）:

H140°/V140°

Module Size:

500*125mm

Warranty:

3years

Keyword:

Transparent

Cabinet Weight:

7kg

Refresh Rate:

3840hz

Scan Method:

1/16

Panel Material:

Profile Aluminum

Maintenance:

Front & Rear Service

Port:

Shenzhen

Supply Ability:

10000 Square Meter/Square Meters per Month

Highlight:

High Definition Transparent LED Display

Waterproof Transparent LED Display

Easy Installation Transparent Video Wall

Product Description

Products Description

1. Super light and slim 2.Super high transparency: 50% 3.Suitable for both rental and fixed installation use 4.Installation ways: hanging and stacking 5.Optional curve locks 6.Both front and rear maintenance, 7.IP42

Product	P2.6-5.2	P3.9-7.8	P10.4
Pitch	2.6-5.2mm	3.9-7.8mm	10.4mm
Density (pixels/m²)	73728	32768	4608
LED Type	SMD1921	SMD1921	SMD1921
Brightness	3500nits	3500nits	4500nits
Scan Method	1月16日	1/81/16	1/4
CabinetSize	100050078mm	100050078mm	100050078mm
Module Size	125*500mm	125*500mm	125*500mm
Cabinet Material	Profile Aluminum
Cabinet Weight	10kg	8.5kg	8.5kg
Protectian Leve	P42
Cabinet Maintenance	Front &Rear Service
Max Power Consumption	450W/m²	480W/m²	640W/m²
Average Power Consumption	150W/m²	160W/m²	210W/m²
Transparency	38%	40%	75%
Refresh Rate	3840Hz
Grey Scale	14bit
ViewingAngle	H140°,V140°
Voltage	AC100~240V(50-63Hz)
Working Temperature	-30C-+65℃
Working Humidity	10%-90%RH
Color Temperature	3000-10000K
Certifications	EMC/CE/ROHS/CCC/FCC/ISO

Company Profile

Shenzhen GCL Electronics CO.,Ltd, founded in 1999 with the registered capital of 10 million dollars, has been a professional manufacturer of LED screen for more than 21 years. GCL is a high-tech enterprise which integrates researching, development,manufacturing, engineering, installation, sales and aftersales services. Headquartered in Shenzhen, China.GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 30 high-speed production machines with high accuracy and more than 10 modern assembly lines.

The annual capacity of GCL is over two hundred millions USD and it has been granted with more than ten LED application products-related patents and certifications in compliance with the ISO9001, ISO1400 and ISO18001 standards. Our products have also been certified with multiple standards, including CCC, FCC, CE, ROHS, EMC, and ETL.

GCL has finished more than 10,000 led screen and led lighting projects all over the world, including the international government projects in 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc.

Certifications

Exhibition

Our Advantages

1.GCL has been a professional led display suppier for 21 years.

2.Provide 3 years or more warranty but 95% supplier provide only 2 years.

3. Free technique training and can send engineer to your country to help with the led project if requested.

4.GCL based in shenzhen but we have warehouse and office in Dallas, The united states,and Russia.

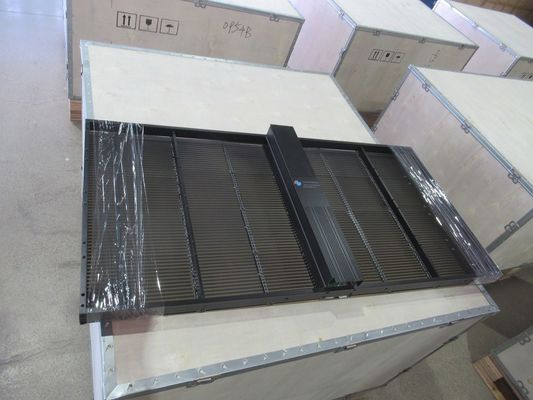

Product packaging

To protect the LED screen well during the long transportation :
1) If it's for rental use, we will pack all cabinets by flight cases;
2) If it's for fixed installation, we will pack all cabinets by plywood cases .

FAQ

Q1. Is GCL a manufacturer or a trading company?
Manufacturer. GCL has been a professional LED screen manufacturer for more than 19 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.

Q2. How long is the warranty?
The standard warranty is 3 years. It could be longer upon request.

Q3.What is your payment terms?
Payment terms:30% T/T deposit, 70% T/T before shipment.

Q4. What is the delivery time?
Usually 12-15 working days after payment of deposit. Less than a week for our best sales because we always keep about 500 square meters in stock.

Q5. What technical supports can GCL offer?
We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct the installation.

Q6: What controlling system do you use ?
Our standard controlling system is Novastar which is the most famous and popular system in the market. We can also provide other control systems such as Colorlight, Linsn, Xixun, Onbon, etc.

Q7. Do you provide any free spare parts in each order?

Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED diod, IC, module mask, power supply, receiving card, etc.
