640000 Pixel Density Indoor Fixed LED Display Waterproof For Mall Advertising P2 LED Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood,flight case,paper board |
| Delivery Time: | 15-22Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337.5mm, 600*337.5mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Education, Broading Studio, Monitoring Center, Meeting Room, School Classroom | Pixel Pitch: | 1.2MM, 1.2MM |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | ≥600nits, ≥600nits, ≥600nits | Pixel Density: | 640000, 640000 |
| Contrast Ratio: | 5000:1, 5000:1 | Lifespan (hours): | 100,000, 100,000 |
| IP Rating: | IP 31, IP 31 | Resolution: | 2k-4k |
| View Angle（H/V）: | H160°/V160°, H160°/V160° | Pixels: | 284444 |
| LED Type: | SMD1010 | Scan Method: | 1/27 |
| Module Size: | 300*168.5mm | Weight: | 7.5kg |
| Material: | Die-Casting Aluminum | Protection Level: | IP31 |
| Cabinet Maintenance: | Full Front Service | Refresh Rate: | 3840Hz |
| Highlight: | Mall Advertising Indoor Fixed LED Display,Waterproof Indoor Fixed LED Display,640000 Pixel Density Indoor LED Display |
||
Product Description
640000 Pixel Density Waterproof HD Indoor P0.9 P1.25 High Brightness LED Screen Display

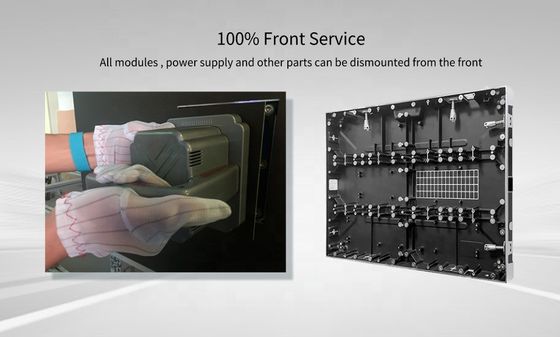

Front Access Design
All electrical components: power supply, receiving card, and data cable are easily accessed from the front of the GTV LED display. This design feature allows for direct wall mount installation.
Advanced Visual Performance
Gold aspect ratio:Cabinet size W600*H337mm, 4:3/16:9. Customized resolution: 1080p, 2K, 4K, 8K, etc. Wide Viewing Angle: 160°(H) | 140°(V)
They are achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 16bits luminance intensity.
Full Redundancy
A backup can be installed for both power and signal.
Ultra Slim
Slim cabinet and module design

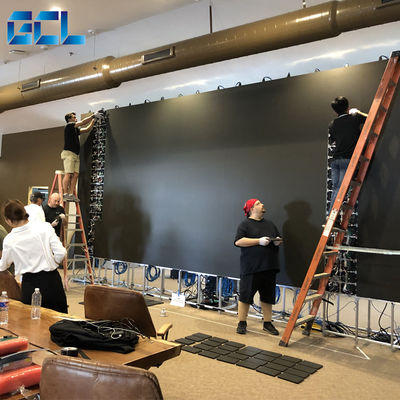

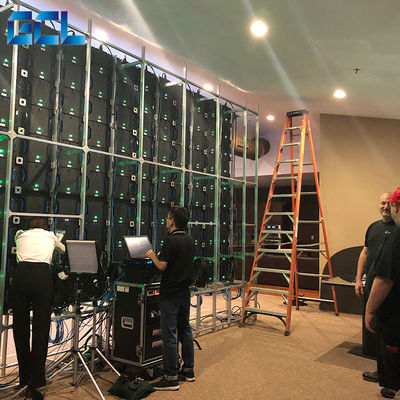

Flexible Installations
There are 3 ways for installation:
1. Hanging; 2. Stacking; 3. Mounting on the wall.

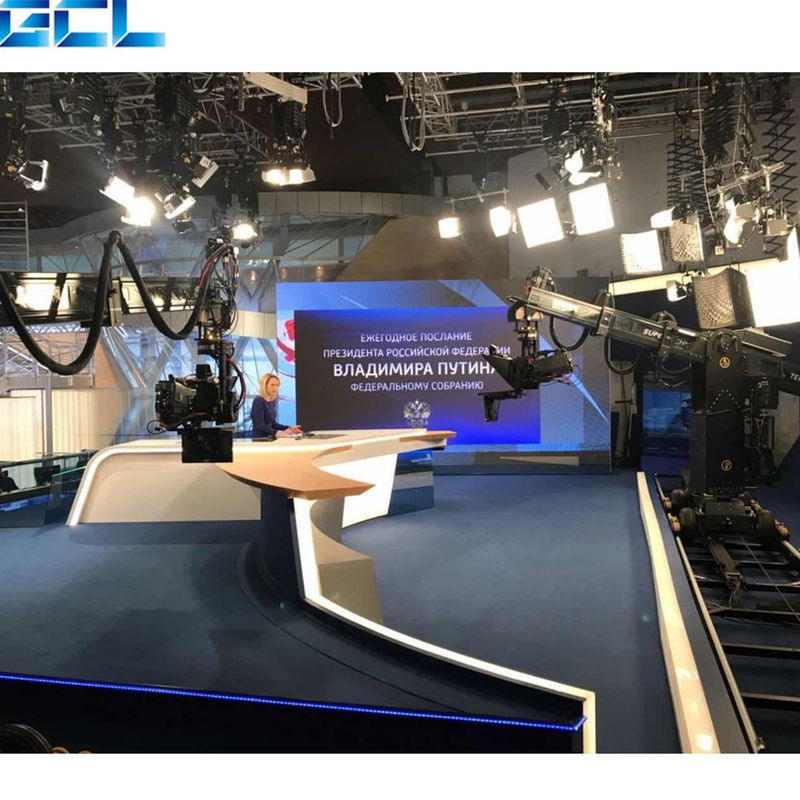

Application Scenarios:
Business Display
Conference Display
Professional display
Parameters of Gtv Series:
| Name | P0.9 | P1.2 | P1.5 | P1.875 |
| Module | ||||
| LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Module Resolution | 160*180 | 120*135 | 96*108 | 160*90 |
| Module Size(mm) | 150*168.75 | 150*168.75 | 150*168.75 | 300*168.75 |
| Scan Method | 1/36s | 1/27s | 1/27s | 1/54s |
| Cabinet | ||||
| Unit Resolution | 4*2 | 4*2 | 4*2 | 2*2 |
| Cabinet Resolution | 640*320 | 480*270 | 384*216 | 320*180 |
| Cabinet Size(mm) | 600*337.5*63 | |||
| Cabinet Area(㎡) | 0.2025 | |||
| Cabinet Material | Profile Aluminum | |||
| CabinetWeight | 7.5kg | |||
| Densiy (pixels/㎡) | 1137777 | 640000 | 409600 | 284444 |
| Protection Level | IP31 | |||
| Optics | ||||
| Brightness(nits/㎡) | ≥600nits | |||
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-10000K Adjustable | |||
| Viewing Angle | H160°,V160° | |||
| Light Decay Rate | <3% | |||
| ContrastRatio | 9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 400W | 500W | 500W | 500W |
| Average Power Consumption/㎡ | 120W | 150W | 150W | 150W |
| Cabinet Maintenance | Full Front Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
| Performance | ||||
| Drive Mode | Constant Current Drive | |||
| Refresh Rate | ≥3840Hz | |||
| Frame Rate | 50Hz/60Hz | |||
| Working Condition | ||||
| Working Temperature,Woking Humidiy | -30℃~+65℃/10%-90%RH | |||
| Storage Temperature,Storage Humidity | -30℃~+65℃/10%-90%RH | |||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |||
