GCL Conference Room Indoor Display Screen Full Color LED Video Wall Easy Installation Digital Signage Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Flight case, Ply-wooden case |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor, Conference Room | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm, 640*480mm, 640x480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Hotel Lobby, School Classroom, Exhibition Centre Hallway | Pixel Pitch: | 1.5mm,1.8mm,2mm,2.5mm, 4mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 1000nits, 1000nits, 1000nits | Pixel Density: | 62500, 62500 |
| Lifespan (hours): | 100,000, 100,000 | IP Rating: | IP34, IP34 |
| Resolution: | 2k-4k | View Angle（H/V）: | H160°/V140°, H160°/V140° |
| Module Size: | 320*160mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD2121 | Viewing Angle: | H160°/V140° |
| Scan Method: | 1/20 | Cabinet Material: | Die-casting Alumium |
| Weight: | 8.5Kg/panel | IP Rate: | IP34 |
| Port: | Shenzhen | ||
| Highlight: | Conference Room Indoor Display Screen,Full Color Indoor Display Screen,Easy Installation Indoor LED Display Screen |
||
Product Description
P1.5mm P1.8mm P2mm Indoor Display Screen Full Color LED Video Wall Easy Installation Digital Signage Display

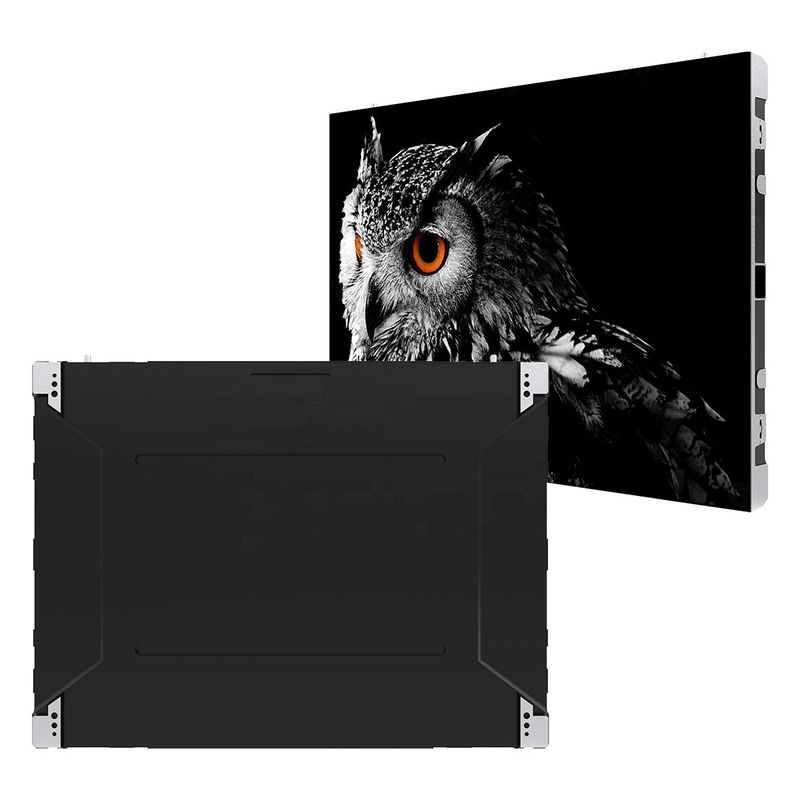

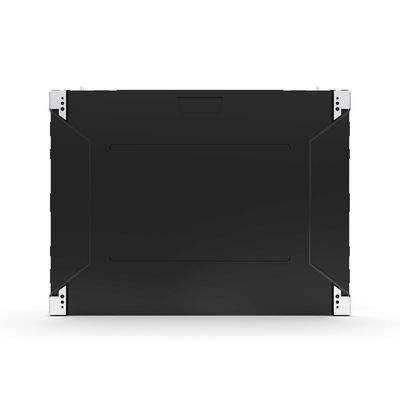

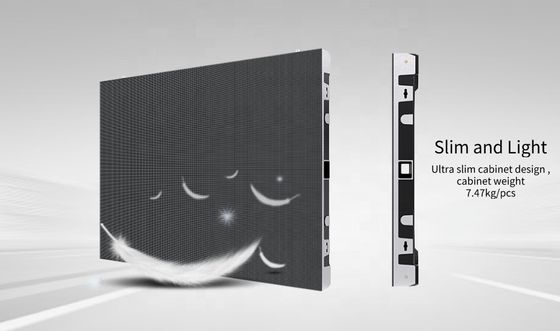

Ultra Light and Thin Cabinet Design:
Die-casting aluminum cabinet,thickness:75mm weight:7kg

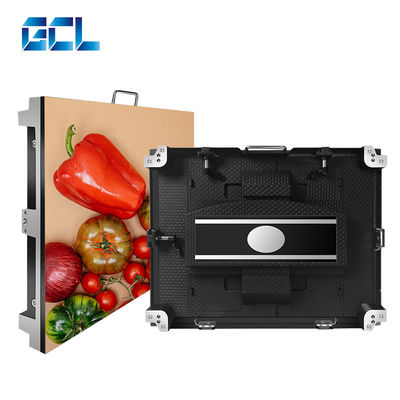

Magnetic module with front maintenance,quick and convenient maintenance;
100% Front Service
All modules , power supply and other parts can be dismounted from the front
Full Redundancy
A backup can be installed for both power and signal
Power&Signal Connector Back-up
2power connectors and 4 signal connectors on each cabinet
4:3 Ratio
Cabine size W640*H480mm,the screen size ratio is always 4;3
When there are the same amount of cabinets vertically and horizontally

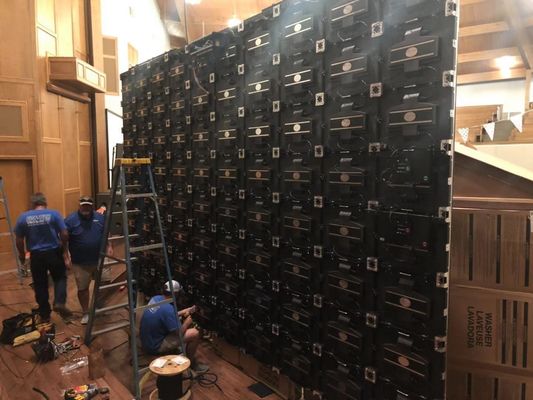

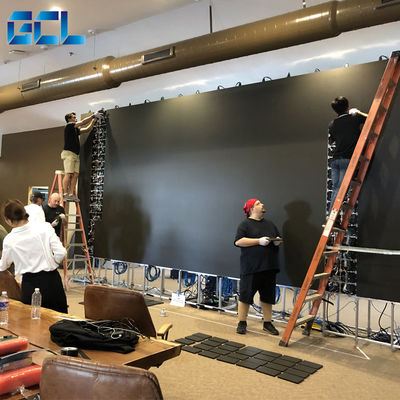

Easy Installation
4 plates at the corners of each cabinet can be dismounted easily,
Easier for installation for front service screens
| Name | P1.5 | P1.8 | P2 | P2.5 | |
| Module | |||||
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2121 | |
| Pixel Pitch(mm) | 1.538 | 1.818 | 2 | 2.5 | |
| Module Resolution | 208*104 | 176*88 | 160*80 | 128*64 | |
| Module Size(mm) | 320*160 | ||||
| Scan Method | 1/52s | 1/44s | 1/40s | 1/32s | |
| Cabinet | |||||
| Unit Resolution | 2*3 | ||||
| Cabinet Resolution | 416*312 | 352*264 | 320*240 | 256*192 | |
| Cabinet Size(mm) | 640*480*75 | ||||
| Cabinet Area(㎡) | 0.3072 | ||||
| Cabinet Material | Profile Aluminum | ||||
| CabinetWeight | 7.47kg | 7.4kg | 7.3kg | 7.24kg | |
| Densiy (pixels/㎡) | 422756 | 302557 | 250000 | 160000 | |
| Protection Level | IP34 | ||||
| Optics | |||||
| Brightress (nits/㎡) | 600nits | 800nits | 800nits | 800nits | |
| Calibration | Support Single-dot Calibration | ||||
| Color Temperature | 3000-9500K Adjustable | ||||
| Viewing Angle | H160°,V140° | ||||
| Light Decay Rate | <3% | ||||
| ContrastRatio | 9000:1 | ||||
| Grey Scale | 13-16bit | ||||
| Electric | |||||
| Max Power Consumption/㎡ | 540W | ||||
| Average Power Consumption/㎡ | 180W | ||||
| Cabinet Maintenance | Full Front Service | ||||
| Input Voltage | AC100~240V(50-60Hz) | ||||

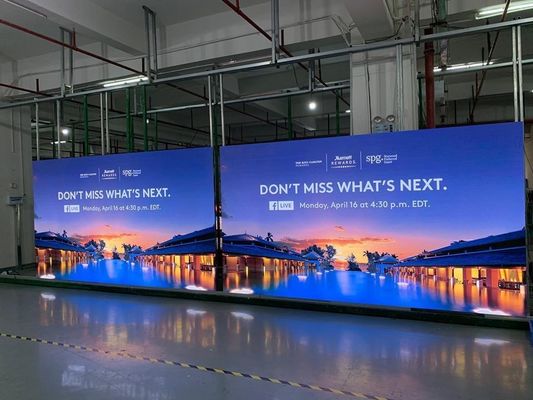

Application
ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer over 21 years which integrates research, development, manufacturing, engineering, installing, sales and aftersales service.
Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, UL, EMC, and ETL.
GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. We have warehouses in America, Russia and Malaysia.,Poland.
Let’s Discuss Your Solution Now:
We do more than provide off the shelf solutions to your challenges. We listen and develop a
solution that will work best for your unique situation. From indoor signs to changeable outdoor waterproof signs and Point of sale integration, call us, we are GCL, the most professional manufacturer and supplier of Led displays, more than 21 years .
Want to Know more details about this product
