IP31 Rated Network Control Indoor Fixed LED Display P2.6 LED Screen For Mall Advertising
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Flight case, Ply-wooden case |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor, Conference Room | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm, 640*480mm, 640x480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Self-service Business, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Hotel Lobby, School Classroom, Exhibition Centre Hallway | Pixel Pitch: | 4mm, 4mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 1000nits, 1000nits, 1000nits | Pixel Density: | 62500, 62500 |
| Lifespan (hours): | 100,000, 100,000 | IP Rating: | IP34, IP34 |
| Resolution: | 2k-4k | View Angle（H/V）: | H160°/V140°, H160°/V140° |
| Module Size: | 320*160mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD2121 | Viewing Angle: | H160°/V140° |
| Scan Method: | 1/20 | Cabinet Material: | Die-casting Alumium |
| Weight: | 8.5Kg/panel | IP Rate: | IP34 |
| Port: | Shenzhen | ||
| Highlight: | Network Control Indoor Fixed LED Display,IP34 Rated Indoor Fixed LED Display,Mall Advertising Fixed LED Screen |
||
Product Description
Products Description:
Indoor HD P2.5 led display screen video wall for Church, Meeting Room
| Product | P1.5 | P1.86 | P2 | P2.5 | P3.07 | P4 |
| Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.07mm | 4mm |
| Density(pixels/m²) | 422500 | 288906 | 250000 | 160000 | 105625 | 62500 |
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 600nits | 700nits | 700nits | 700nits | 700nits | 700nits |
| Scan Method | 1/52 | 1/43 | 1/40 | 1/32 | 1/26 | 1/20 |

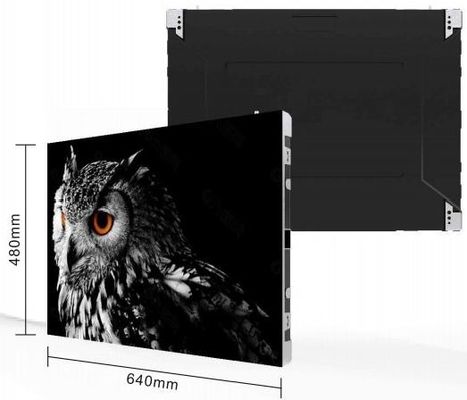

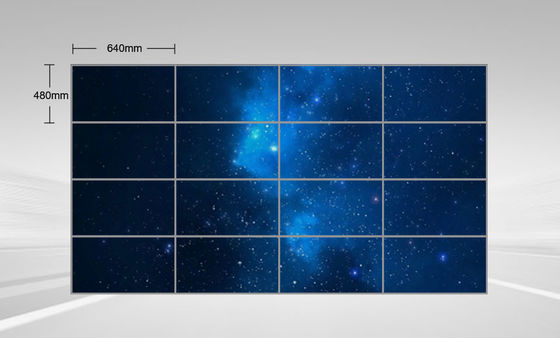

| Panel Size | 640×480mm | |||||
| Module Size | 320×160mm | |||||
| Panel Material | Die-casting Aluminum | |||||
| Panel Weight | 7 kg | |||||
| Protection Level | IP31 | |||||
| Maintenance | Full Front Service | |||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 3840Hz | |||||
| Grey Scale | 13~16bit | |||||
| Viewing Angle | H160°,V160° | |||||
| Voltage | AC100~240V(50-60Hz) | |||||
| Working Temperature | -20℃to 60℃ | |||||
| Working Humidity | 10%-90%RH | |||||
| Color Temperature | 3000-9500K | |||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |||||

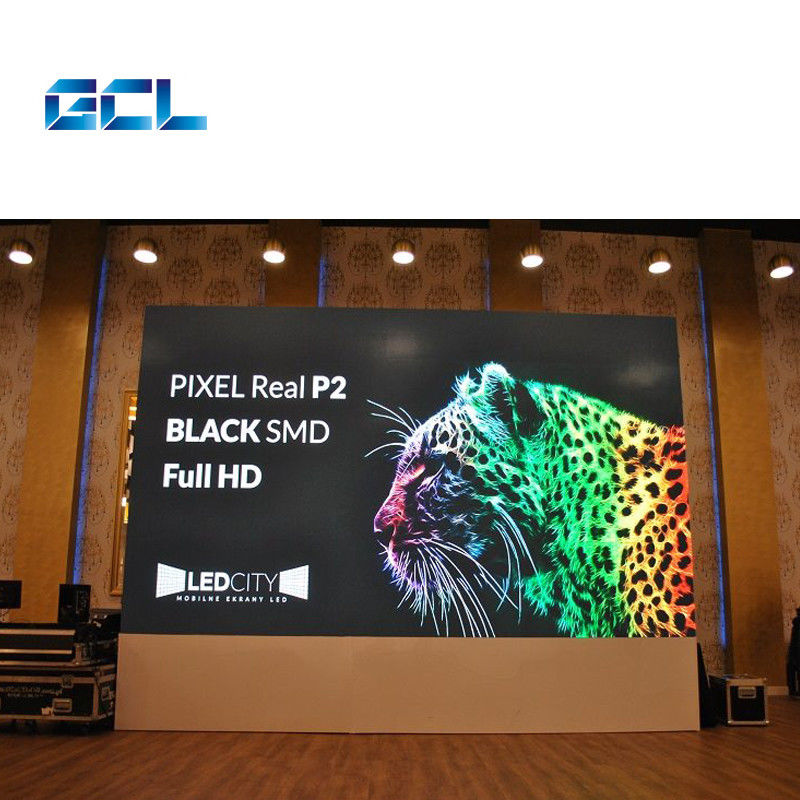

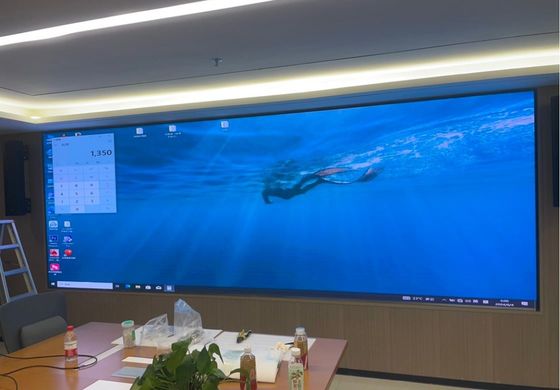

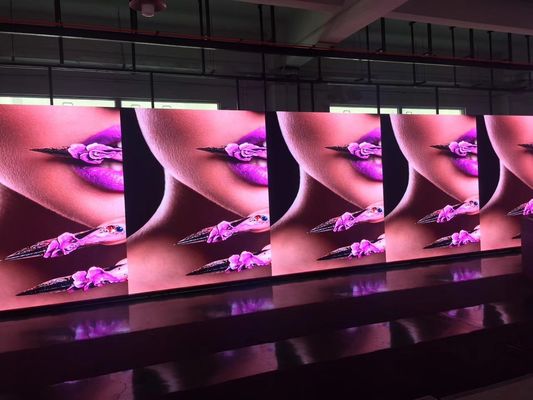

Application
ABOUT GCL
Shenzhen GCL Electronics CO., Ltd, founded in 1999, is a professional LED display manufacturer over 21 years which integrates research, development, manufacturing, engineering, installing, sales and aftersales service.
Headquartered in Shenzhen, China, GCL is staffed with over 300 employees and in our dust free workshop which covers more than 100,000 square feet, there are more than 40 high-speed production machines with high accuracy and more than 10 modern assembly lines. GCL has a very powerful productivity with over 5000 square meters LED screens each month. We have been granted with more than ten LED application products-related patents and certifications in compliance with the ISO 9001, ISO 1400 and ISO18001 standards. Our products have also been certificated with multiple standards, including CCC, FCC, CE, ROHS, UL, EMC, and ETL.
GCL has finished more than 10,000 led screen projects all over the world, including some magnificent international government projects such as 2010 World Cup in South Africa, 2010 Shanghai Expo, 2014 China-Asian Expo, 2015 Milan Expo, etc. We have warehouses in America, Russia and Malaysia.,Poland.
Let’s Discuss Your Solution Now
We do more than provide off the shelf solutions to your challenges. We listen and develop a
solution that will work best for your unique situation. From indoor signs to changeable outdoor waterproof signs and Point of sale integration, call us, we are GCL, the most professional manufacturer and supplier of Led displays, more than 21 years .
Want to Know more details about this product
