Indoor 600*337.5mm PH0.9\1.25mm HD Large LED Advertising Screen For Indoor Fixed Installation

Brand Name:	GCL
Model Number:	Gspark
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Flight case, Ply-wooden case

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Conference Room

Type:

LED

Color:

Full Color

Panel Size:

600*337.5mm,

Supplier Type:

Original Manufacturer, ODM, OEM

Media Available:

Photo, Other, Video

Use:

Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Hotel Lobby, School Classroom, Exhibition Centre Hallway

Pixel Pitch:

P0.9mm\1.25mm

Specification:

Digital Poster, Video Wall

Touch Screen Type:

Capacitive

Brightness:

600-800nits

IP Rating:

IP34

Resolution:

2k-4k

View Angle（H/V）:

H160°/V140°

Refresh Rate:

3840Hz

Viewing Angle:

H160°/V140°

Cabinet Material:

Die-casting Alumium

Weight:

4.7Kg/panel

Maintenance:

Full Front Service

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

Large LED Advertising Screen

HD LED Advertising Screen

Fixed Installation Indoor Display Screen

Product Description

600*337.5mm Panel Size P1.25 HD led large screen display for Indoor Fixed Installation

Products Description:

The P1.25 small pitch LED display is a high-definition, high refresh rate, low gray, and high-brightness display screen, suitable for indoor command and control rooms, studios, and other venues. With a cabinet size of 600*337.5mm and pitches of P0.9 and P1.25, it can provide an outstanding visual experience.

This display screen utilizes advanced LED technology to present detailed and vivid images and videos, allowing the audience to enjoy high-quality audiovisual effects. With its high refresh rate and low gray, high brightness features, the small pitch LED display can deliver smoother and clearer images when playing high-speed videos and dynamic content.

The P1.25 small pitch LED display is a fully front-maintainable, stable performance display device with a three-year warranty, capable of meeting a wide range of indoor high-definition display requirements.

16: 9-inch, 27 inch screen, easy to achieve 2K/4K ultra clear picture splicing
Large domain, richer color hierarchy, multifunctional body

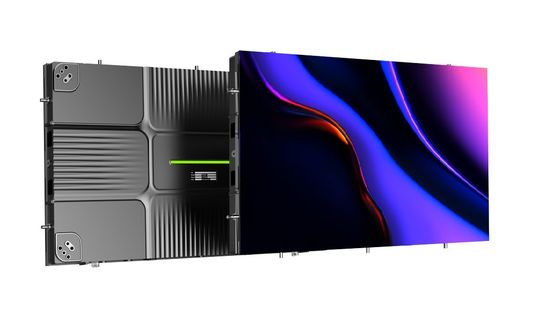

Front end installation
Connect the box to the frame through M50x50 screws from the front of the box and clamp the installation bracke

Rear installation
Connect the box and frame from the rear using M5x50 screws and clamp the mounting bracket

Flexible Installations
There are 3 ways for installation:
1. Hanging; 2. Stacking; 3. Mounting on the wall.

Application Scenarios:
Business Display

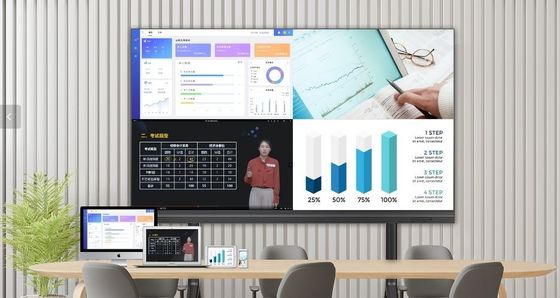

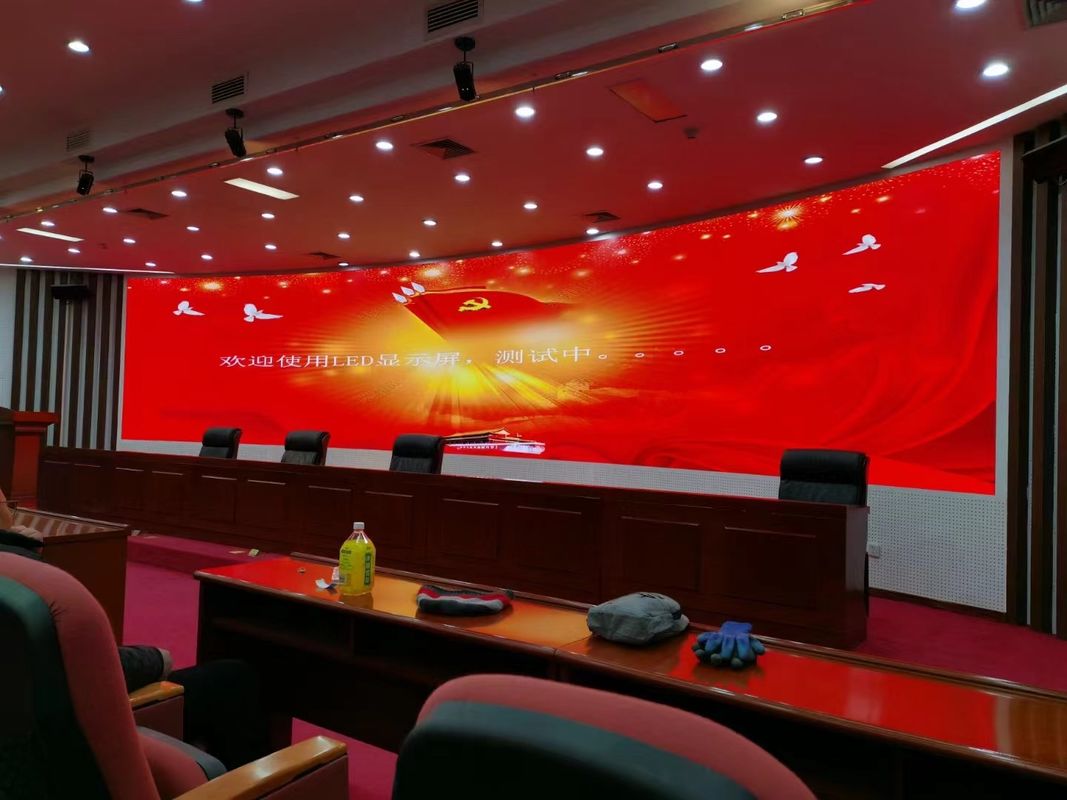

Conference Display
Professional display

Product	P0.9	P1.2	P1.5	P1.875
Pitch	0.9375mm	1.25mm	1.5625mm	1.875mm
Density(pixels/m²)	1137777	640000	409600	284444
LED Type	Mini09	SMD1010	SMD1212	SMD1515
Brightness	≥600nits
Scan Method	1/36	1/45	1/54	1/45

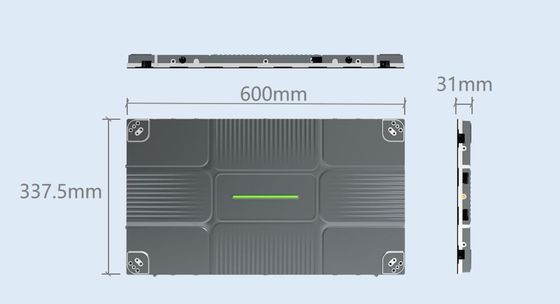

Panel Size	600×337.5×32mm
Module Size	150×168.75mm	300×168.75mm	300×168.75mm	300×168.75mm
Panel Material	Die-casting Aluminum
Panel Weight	4kg
Protection Level	IP31
Maintenance	Full Front Service
Max Power Consumption	450W/㎡	450W/㎡	450W/㎡	450W/㎡
Average PowerConsumption	150W/㎡	150W/㎡	150W/㎡	150W/㎡
Refresh Rate	≥3840Hz
Grey Scale	13-16bit
Viewing Angle	H160°,V160°
Voltage	AC100~240V(50-60Hz)
Working Temperature	-20℃to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
