Large Electronic HD LED Display Screen Commercial With Panel Size 640*480mm
Product Details:
Place of Origin: | Guangdong, China |
Brand Name: | GCL |
Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
Model Number: | Gspark |
Payment & Shipping Terms:
Minimum Order Quantity: | Min. order: 20 |
---|---|
Price: | Price to be discussed |
Packaging Details: | Flight case, Ply-wooden case |
Supply Ability: | 5000 Square Meter/Square Meters per Month |
Detail Information |
|||
Application: | Indoor, Conference Room | Type: | LED |
---|---|---|---|
Color: | Full Color | Panel Size: | 640*480mm, 640*480mm, 640x480mm |
Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
Use: | Advertising Publish, Retail Store, Shopping Mall, Welcome Display, Exhibition Hall, Airport, Subway, Restaurant & Hotel Supplies, Education, Hotel Lobby, School Classroom, Exhibition Centre Hallway | Pixel Pitch: | 1.8mm, 1.8mm |
Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
Brightness: | 800nits, 800nits, 800nits | Pixel Density: | 302560, 302560 |
Lifespan (hours): | 100,000, 100,000 | IP Rating: | IP34, IP34 |
Resolution: | 2k-4k | View Angle(H/V): | H160°/V140°, H160°/V140° |
Module Size: | 320*160mm | Refresh Rate: | 3840Hz |
LED Chip: | SMD1515 | Viewing Angle: | H160°/V140° |
Scan Method: | 1/44 | Cabinet Material: | Die-casting Alumium |
Weight: | 8.5Kg/panel | IP Rate: | IP34 |
Port: | Shenzhen Port | ||
Highlight: | Electronic HD LED Display,Large HD LED Display,Commercial Small Pitch LED Display |
Product Description
The Large Led Display Super Thin P 1.5mm HD LED Display Screen With Panel Size 640*480mm
Full Redundancy
A backup can be installed for both power and signal
Low gray and high brightness technology
Even at low brightness levels of 100cd/㎡ to 300cd/㎡, it can perfectly present dark details, and there will be no grainy, blurry, or distorted images when viewed up close
4:3 Ratio
Cabine size W640*H480mm,the screen size ratio is always 4:3
When there are the same amount of cabinets vertically and horizontallyHigh definition and high refresh rate
Up to 3840Hz refresh, no shaking or ghosting in the playback screen, no water ripple phenomenon;

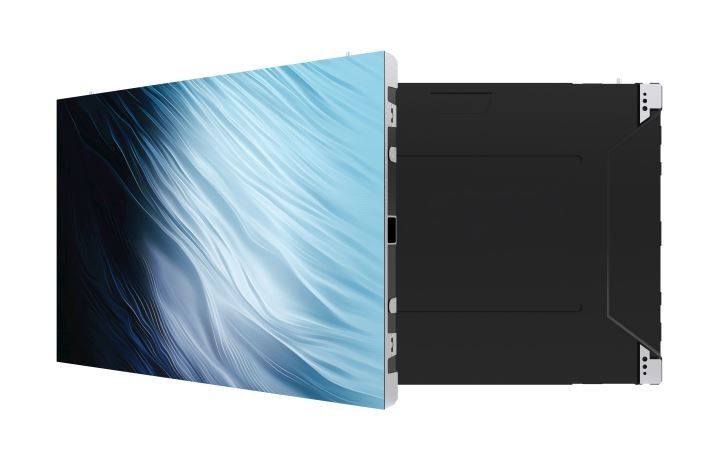

Slim and Light
Ultra slim cabinet design , cabinet weight 7.47kg/pcs

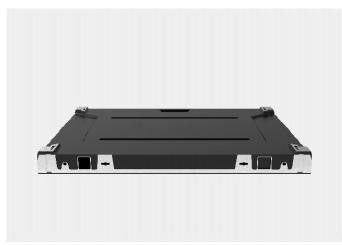

Easy Installation
4 plates at the corners of each cabinet can be dismounted easily,
Easier for installation for front service screens

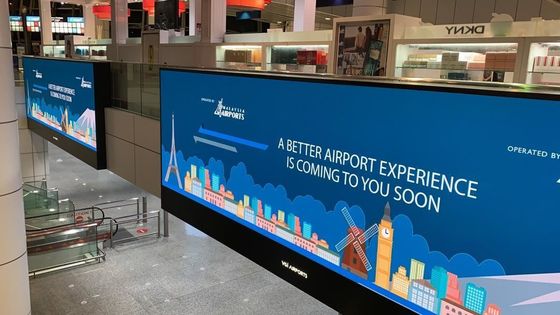

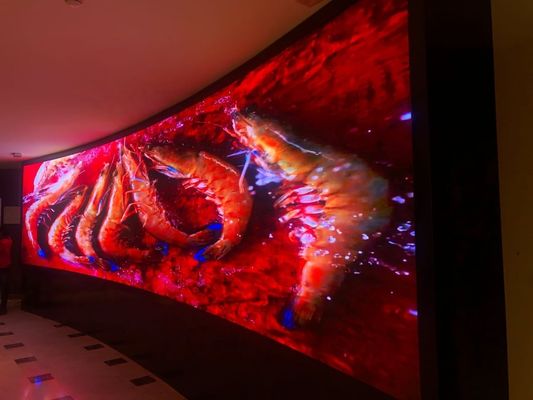

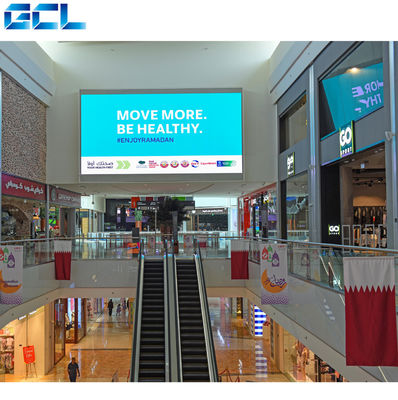

Application Scenarios
advertising publish, retail store, shopping mall, welcome display, airport, subway, elevator, Restaurant & Hotel Supplies, education, hotel lobby, school classroom, exhibition centre hallway
Parameters of Gspark Series
Product | P1.5 | P1.86 | P2 | P2.5 |
Pitch | 1.538mm | 1.86mm | 2mm | 2.5mm |
Density(pixels/m²) | 422500 | 288906 | 250000 | 160000 |
LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2020 |
Brightness | 600nits | 700nits | 700nits | 700nits |
Scan Method | 1/52 | 1/43 | 1/40 | 1/32 |
Panel Size | 640×480mm | |||
Module Size | 320×160mm | |||
Panel Material | Die-casting Aluminum | |||
Panel Weight | 7 kg | |||
Protection Level | IP31 | |||
Maintenance | Full Front Service | |||
Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 450W/㎡ |
Average Power Consumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 150W/㎡ |
Refresh Rate | 3840Hz | |||
Grey Scale | 13~16bit | |||
Viewing Angle | H160°,V160° | |||
Voltage | AC100~240V(50-60Hz) | |||
Working Temperature | -20℃to 60℃ | |||
Working Humidity | 10%-90%RH | |||
Color Temperature | 3000-9500K | |||
Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO |
