IP42 Rated P4mm Fixed Installation Transparent LED Display For Landmark Buildings

Brand Name:	GCL
Model Number:	Gair
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	To protect the LED screen well during the long transportation : 1) If it's for rental use, we will pack all cabinets by flight cases; 2) If it's for fixed installation, we will pack all cabinets by plywood cases.

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Indoor, Video Play

Type:

LED

Color:

Full Color

Panel Size:

500*1000mm,customizable, 500*1000mm,customizable

Supplier Type:

Original Manufacturer, OEM

Media Available:


Use:

Advertising Publish, Shopping Mall, Landmark Building, Car Dealership

Pixel Pitch:

P2.6-7.8mm, P3.91mm, P2.6-10.4

Specification:

Digital Poster, Video Wall

Brightness:

5500nits, 5500nits, 4500nits

Contrast Ratio:

≥5000:1, ≥5000:1

Lifespan (hours):

100000, 100000

IP Rating:

IP42, IP42

View Angle（H/V）:

H140°, V140°, H140°, V140°

Module Size:

500*1000mm

Warranty:

3years

Usage:

Indoor Fixed Installation

Port:

SHENZHEN

Supply Ability:

10000 Square Meter/Square Meters per Month

Highlight:

IP42 Rated Transparent LED Display

Landmark Buildings Transparent LED Display

Fixed Installation Transparent LED Screen

Product Description

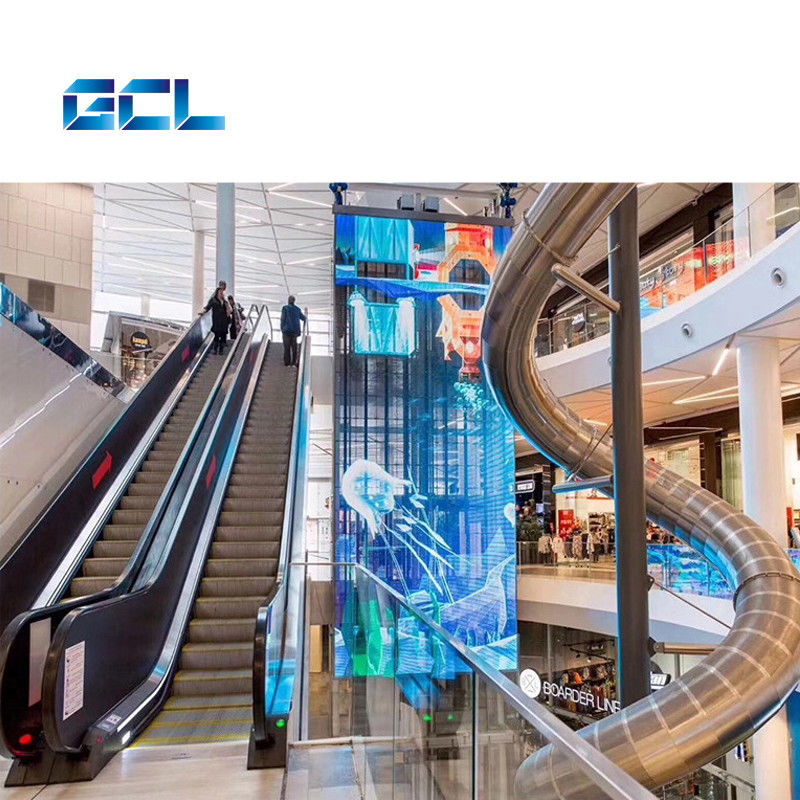

IP42 Rated P4mm Fixed Installation Transparent LED Display Screen for Landmark Building

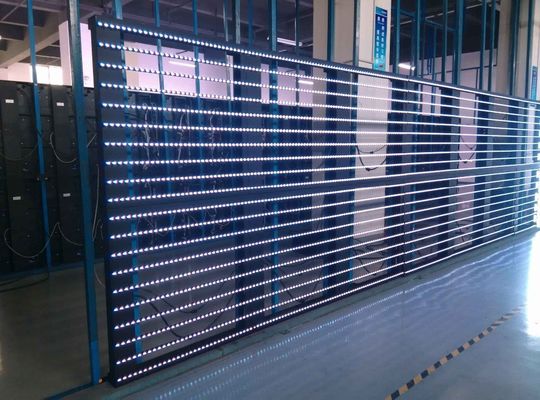

High Transparency
Super high transparency:≥50%

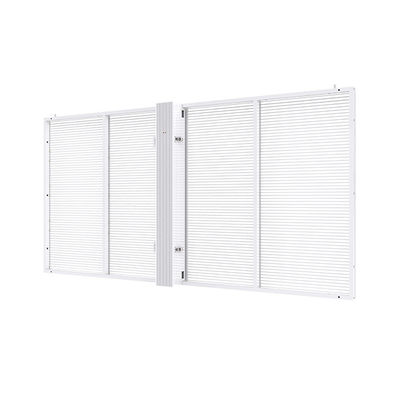

Light and Slim
Cabinet weight 4.7kg/pcs. Cabinet depth 3.5cm

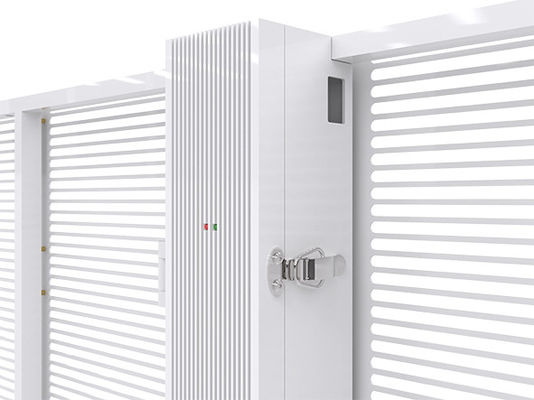

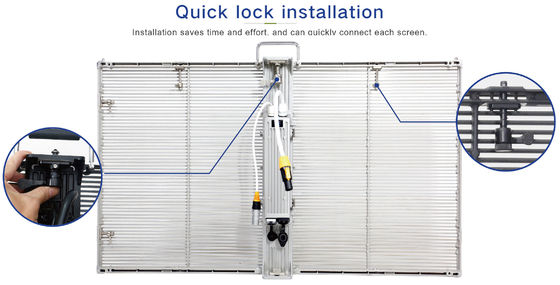

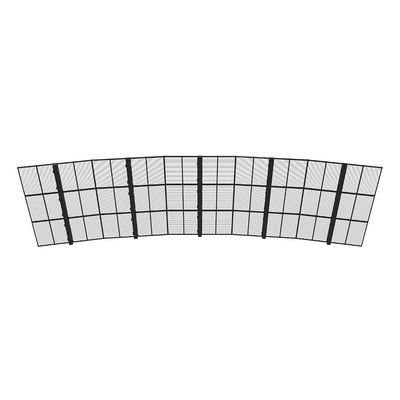

Optional Curving Lock
The curving degree of the curving lock is -5° to+5°

Easy Maintenance
integrated design of the back cover,

Easy replacement and maintenance

IP degree:

IP42 with the transparent acrylic board in the front

High Transparency；Ultra Light & Thin；Front&Rear Maintenance；Easy Installation；Non Steel Frame Structure ；Wide Perspective；

Model	Gair P3.9-7.8
Pixel Pitch (mm)	3.9-7.8
Pixel Density (dot/m2)	32768
LED Type	SMD2121
Scanning	1/16S
Module Size (mm)	500*125
Cabinet Size (mm)	W500*H1000
Cabinet Weight (±0.25Kg)	7
Cabinet Resolution (PX* PX)	128*128
Cabinet Material	Diecasting Aluminum
Brightness (CD/m2)	900
Maximum Power Consumption (w/sqm)	600
Average Power Consumption (w/sqm)	240
Horizontal Viewing Angle (Deg)	140
Vertical Viewing Angle (Deg)	140
Grey Scale(bit)	16
Refresh Rate (Hz)	2880-3840
Input Voltage (V)	AC110-240V
Input Frequency (Hz)	60
Storage Temperature (℃)	-40℃~ +80℃
Working Temperature(℃)	-30℃ ~ +65℃
Working Humidity (RH)	< 95%
Cabinet Curve	Outward&Inward
Waterproof Level	IP 42
Working Environment	Indoor
Installation Type	Rental/Fixed
