High Precision Transparent LED Display BoardP10.4mm P15.6 25mm for Advertising Publish
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh PH7.8-3.9/10.4/15.625/15.625/31.25-15.625/25-31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size: 60X20X120 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C,T/T,D/A,D/P |
|
Detail Information |
|||
| Pitch: | 7.8-3.9mm/10.4/15.625-31.25mm | Transmittance: | 60% |
|---|---|---|---|
| Brightness: | 6000-10000nits | Protection Level: | IP 65 |
| Panel Size: | 500*1000mm | Panel Weight: | 9-10Kg |
| Highlight: | High Precision Transparent LED Display Board,Advertising Publish Transparent LED Display Board,High Precision Outdoor LED Display Board |
||
Product Description
EMC Class-B certificated
Our products are EMC Class-B certificated,Safer and more environment

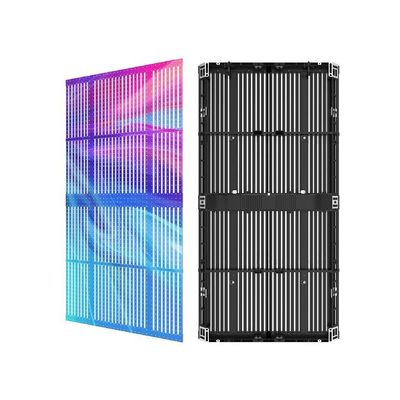

High Light Transmittance
Light transmittance:20%-60%; Low wind resistance;Great heat dissipation
Light and Slim
Cabinet weight: 9.5kg(P10 SMD);11kg(P15.6 DIP);Cabinet Thickness:45mm
Front &Rear Maintenance
All parts be dismounted from the front;Both front and rear maintenance;
Easy Maintenance
Loose 8 screws to dismount each module;Loose 8 screws to dismount the front cover,
then dismount the power supply, receiving card and HUB card

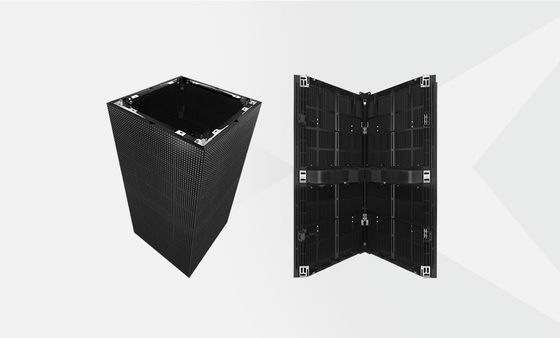

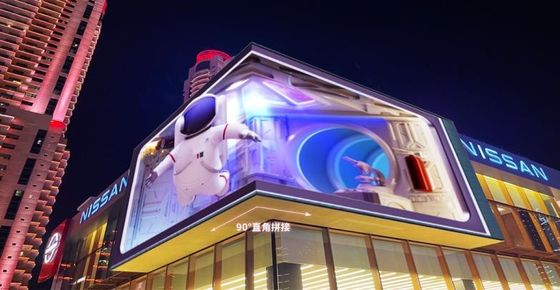

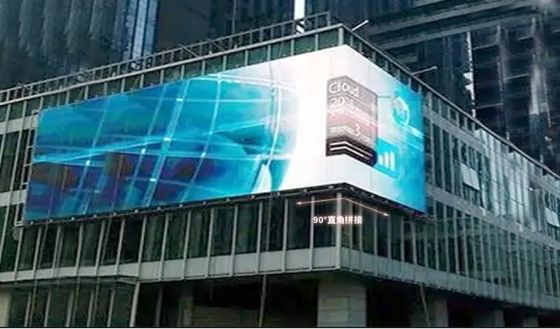

Seamless 90°Splicing

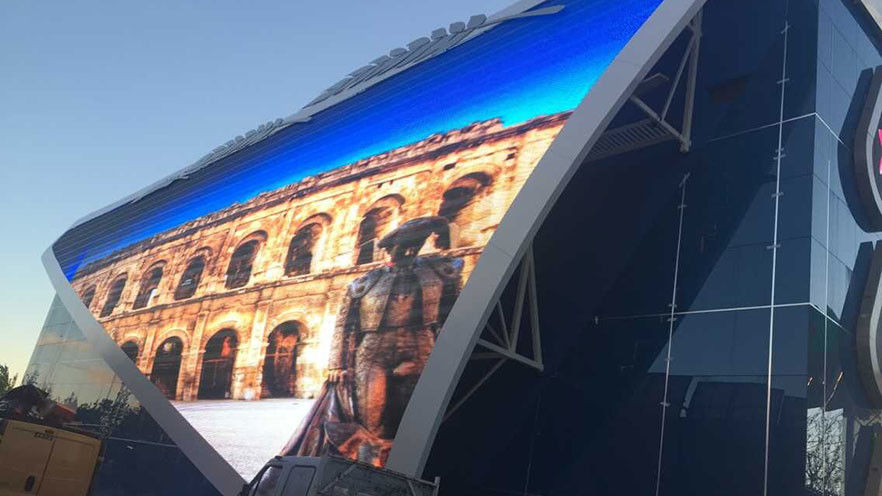

Optional Curve Lock
Concave and convex curve;Curve degree:-15° to+15°
Integrated Power and Signal Cable
Save 50% of the cable connecting time
Both SMD and DIP
Brightness 550-6500 nits(SMD);Brightness＞8000 nits(DIP)
Key attributes
| Product | P7.8-3.9 | P10 | P16-A | P16-B | P16-C | P25 | P31.25 |
| Pitch | 7.8-3.9mm | 10.4mm | 15.625mm | 15.625mm | 15.625-31.25mm | 25-31.25mm | 31.25mm |
| Density(pixels/m²) | 32768 | 9216 | 4096 | 4096 | 2048 | 1280 | 1024 |
| LED Type | SMD1921 | SMD2727 | SMD3535 | DIP346 | DIP346 | DIP346 | DIP346 |
| Brightness | 5500nits | 5500nits | 6000nits | 10000nits | 10000nits | 10000nits | 10000nits |
| Scan Method | 1/8 | 1/3 | Static | Static | Static | Static | Static |
| Panel Size | 500×1000mm | ||||||
| Module Size | 250×500mm | ||||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 9kg | 9kg | 9kg | 10.5kg | 10.5kg | 10.5kg | 10.5kg |
| Protection Level | IP65 | ||||||
| Maintenance | Front&Rear Service | ||||||
| Max Power Consumption | 680W/㎡ | 680W/㎡ | 680W/㎡ | 350W/㎡ | 350W/㎡ | 350W/㎡ | 350W/㎡ |
| Average Power Consumption | 220W/㎡ | 220W/㎡ | 220W/㎡ | 110W/㎡ | 110W/㎡ | 110W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||||||
| Grey Scale | 16bit | ||||||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° | H100°,V50° | H100°,V50° | H100°,V50° |
| Voltage | AC100~240V(50-60Hz) | ||||||
| Working Temperature | ‘-30℃ to 60℃ | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 3000-9500K | ||||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||||
