Giant Stage Background Led Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmars PH1.953mm /2.5mm/2.604mm/2.976mm/3.91mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | 2 - 49 pieces $260， 50 - 199 pieces $255， ≥ 200 pieces $252 |
| Packaging Details: | Single package size:80X30X80 cm |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Viewing Angle:: | H160°,V140° | Brightness:: | 900-1200nits |
|---|---|---|---|
| Warranty:: | 3 Year | Refresh Rate:: | 3840-7680HZ |
| Gray Scale: | 14-20bit | IP Rating:: | IP34-IP65 |
| Supplier Type: | Manufacturer, OEM/ODM Factory, Retailer | Warehouse:: | Urope House, USA House, Rental Outdoor P3.91,P4.81; Rental IndoorP1.9, P2.6, P3.91 |
| Highlight: | Giant Stage Background Led Video Wall,1200nits Brightness XR LED Display,Giant Stage Background XR LED Screen |
||
Product Description
500x500mm 500*1000Indoor and Outdoor Giant Stage Background Led Video Wall P2.6 P2.9 P3.91 P4.81 Seamless Splicing Rental Led Displa
Product Overview
Anti-collision design in four corners
Corner protection and anti-collision design around, facilitating transportation and preventing collision with lights
Jointable inner and outer arcs
±6° Concave and Convex curve shape Straight and curved locks are optional

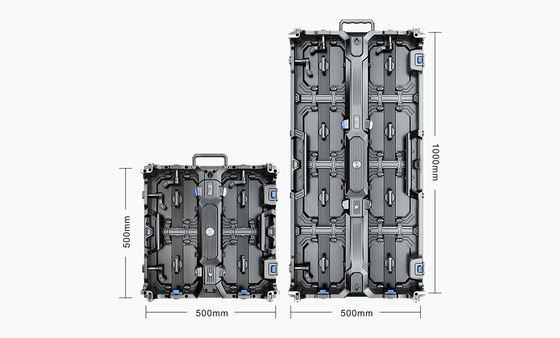

2 sizes of cabinet options
500×500mm and 500×1000mm both size; Two types of cabinet can be freely mixed and matched
Precise positioning, convenient maintenance
100% full front service maintenance;The cabinet is equipped with positioning pins and positioning steel ball design for quick positioning and installation
Excellent In-camera Visual Effects
3840Hz-7680Hz high refresh, smooth screen playback, no lag or flicker
With a wide viewing angle of H160° and V140°, audiences can clearly see the display content from multiple angles.
Magnetic attachment module design for easier installation and maintenance.
Die-cast aluminium enclosure, lightweight and durable.

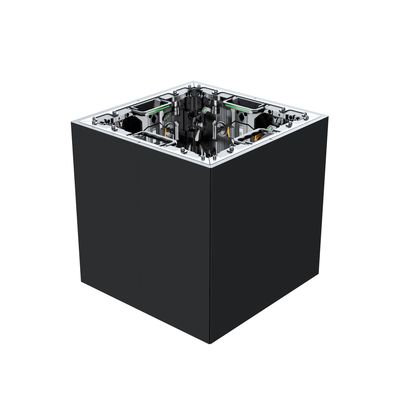

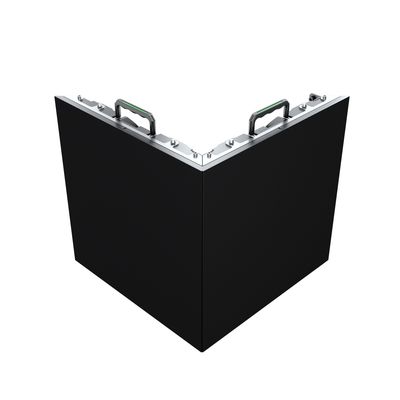

45-degree inclined box shape can be assembled into a right angle, curved, the top choice for products with a 3D effect visible to the naked eye.
| Indoor | |||||
| Product | P1.5 | P1.953 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Density (pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD2020 | SMD2020 |
| Brightness | 1200nits | 1200nits | 1200nits | 1200nits | 1000nits |
| Scan Method | 1/32 | 1/25 | 1/32 | 1/28 | 1/16 |
| Panel Size | 500×500mm/500×1000mm both available) | ||||
| Module Size | 250×250mm | ||||
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 8kg | ||||
| Protection Leve | IP31 | ||||
| Maintenance | Module Front Service &Rear Service | ||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ |
| Average PowerConsumption | 150W/㎡ | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz~7680Hz | ||||
| GreyScale | 14-16bit | ||||
| Viewing Angle | H160°,V140° | ||||
| CurveDegrees(Optional) | -6°~+6° | ||||
| Voltage | AC100~240V(50-60Hz) | ||||
| Working Temperature | -30℃to 60℃ | ||||
| Working Humidity | 10%-90%RH | ||||
| Color Temperature | 3000-95000K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||
