High Brightness Outdoor Fixed LED Display

Brand Name:	GCL
Model Number:	PH5.71/6.67/8/10/16
MOQ:	Min. order: 20
Price:	1 - 49 pieces $630， 50 - 99 pieces $620， ≥ 100 pieces $600
Packaging Details:	Single package size:105X20X116 cm
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Cabinet Size(mm):

960*960mm

Pixel Pitch(mm):

P10 DIP

CabinetWeight:

30KG

Brightness(nits):

10000

Protection Level:

IP65

Average Power Consumption:

120W

Supply Ability:

2000 Square Meter/Square Meters per Month

Highlight:

High Brightness Outdoor Fixed LED Display

P10 DIP Outdoor LED Display

High Brightness Outdoor LED Display Board

Product Description

High Brightness Outdoor Fixed LED Display

Product Specifications

Attribute	Value
Cabinet Size (mm)	960×960mm
Pixel Pitch (mm)	P10 DIP
Cabinet Weight	30KG
Brightness (nits)	10000
Protection Level	IP65
Average Power Consumption	120W

Key Features

Fully Enclosed Module, High-Level Protection

Fully enclosed module with waterproof aluminum bottom shell design. Module and box feature high-quality dustproof and waterproof construction, suitable for any outdoor weather conditions.

Self-Cooling Effect, No Air Conditioning Required

Aluminum box and aluminum bottom shell module provide excellent heat dissipation. Can be installed without air conditioning, saving electricity and reducing operational costs.

Standardized Design with Strong Compatibility

Cabinet body available in die-casting aluminum and profile aluminum. Standardized design with modular products of different point spacing can unify aluminum bottom shell and box body.

Intelligent Module with Monitoring Capabilities

Intelligent module design supports storage of correction coefficient, temperature and voltage monitoring. Can accurately identify fault points on screen through port signals.

Omni-Directional Installation & Maintenance

Supports front and rear installation and maintenance simultaneously. Independent modular design allows easy front/rear maintenance of modules, power supply, and receiving cards.

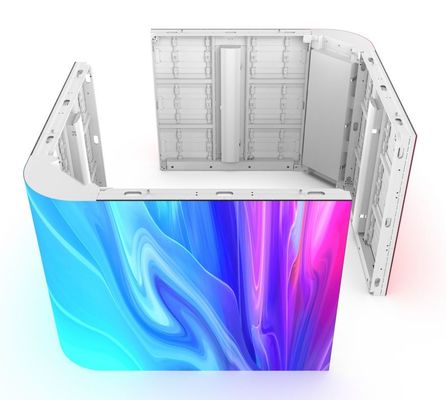

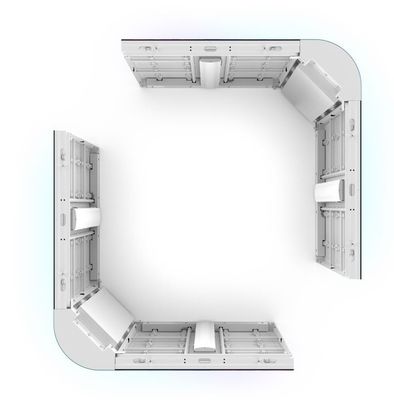

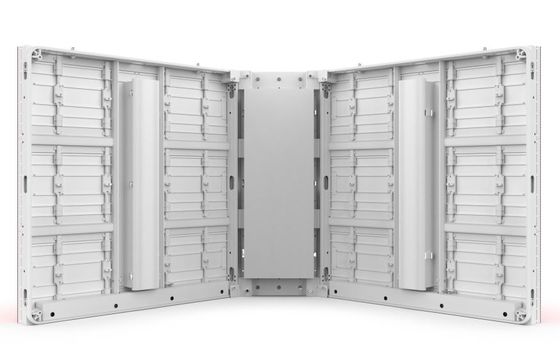

Right Angle & Radian Options

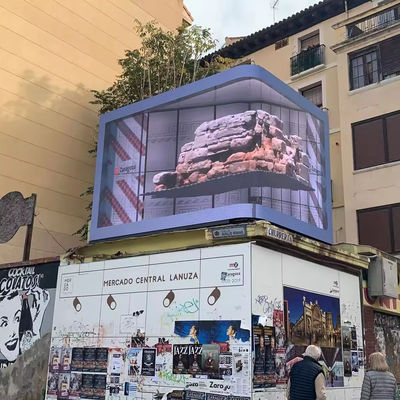

Modular design with superior protection supports straight edge, arc and 90° splicing. Customizable for project requirements, ideal for outdoor naked-eye 3D commercial advertising.

Dual-Voltage Power Supply for Energy Efficiency

Features dual voltage power supply for enhanced energy savings. Uses brand gold wire lamp with brightness of 10000cd/㎡ and power consumption ≤330W/㎡.

Technical Specifications

Product	P5.71	P6.67	P8	P10	P10D
Pitch	5.71mm	6.67mm	8mm	10mm	10mm
Density (pixels/m²)	30625	22500	15625	10000	10000
LED Type	SMD2727	SMD2727	SMD2727	SMD2727	DIP346
Brightness	6500nits	6500nits	6500nits	6500nits	10000nits
Scan Method	1/7	1/6	1/4	1/2	1/4
Panel Size	960×960mm
Module Size	480×320mm
Panel Material	Profile Aluminum
Panel Weight	30kg	29.5kg	29.5kg	29.5kg	38.8kg
Protection Level	IP65
Maintenance	Front & Rear Service
Max Power Consumption	650W/㎡	650W/㎡	650W/㎡	650W/㎡	350W/㎡
Average Power Consumption	210W/㎡	210W/㎡	210W/㎡	210W/㎡	110W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H140°,V120°	H140°,V120°	H140°,V120°	H140°,V120°	H100°,V50°
Voltage	AC96~264V(50-60Hz)
Working Temperature	-30℃ to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

Product Images
