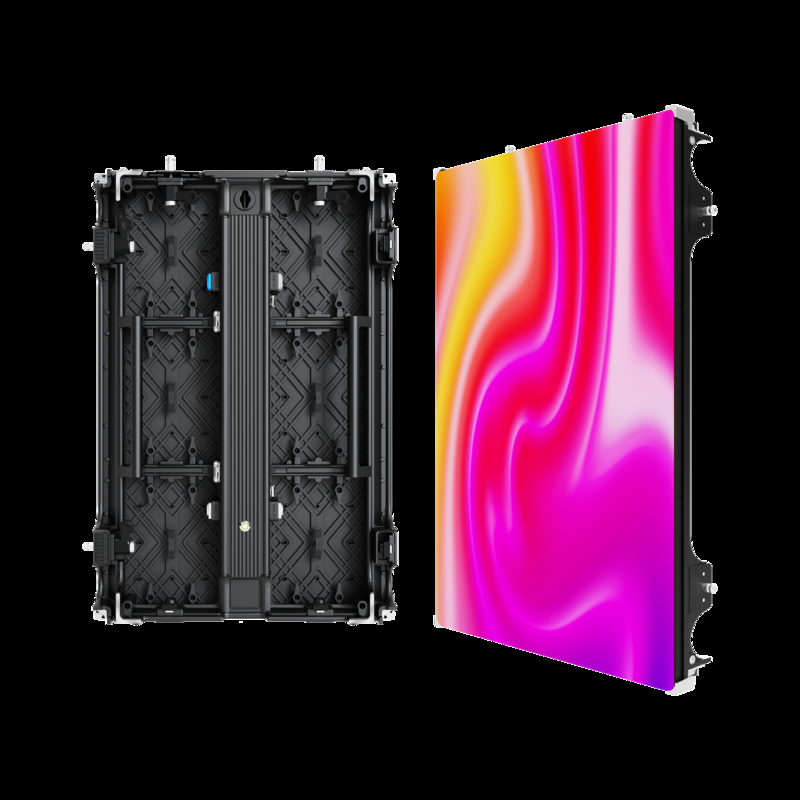

Gstar II Series Ultra-Slim Smart And Versatile Indoor Fixed LED Display

Brand Name: GCL
Model Number: Gstar-II P1.5 P1.95 P2.6 P2.9 P3.91
MOQ: Min. order: 20
Price: Price to be discussed
Packaging Details: Wooden case
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Document:
Gair-II.pdf
Usage:
Indoor Fixed Or Rental
Panel Size:
500*750*78mm/500*1000*78mm
Module Size:
250*250mm
Material:
Die-Cast Aluminum
Panel Weight:
14KG
Ip Rating:
IP31
Refresh:
3840Hz
Viewing Angle:
H160°,V140°
Certification:
EMC/CE/ROHS/CCC/FCC/BIS
Supply Ability:
5000 Square Meter/Square Meters per Month
Highlight:

ultra-slim indoor LED display

,

versatile fixed LED screen

,

smart indoor LED display

Product Description

Gstar-II Series – Ultra-Slim, Smart, and Versatile LED Display


The Gstar-II Series is designed to deliver stunning visuals with exceptional flexibility.

Featuring cabinet sizes of 500×750mm and 500×1000mm, it adapts to a wide range of applications while maintaining a sleek, ultrathin profile of just 78mm.


Key Features & Benefits:

  • Flexible Cabinet Size – 500×750mm design offers more installation possibilities, especially for projects requiring creative splicing or compact layouts.

  • Front & Rear Maintenance – Simplifies servicing by allowing modules, power supplies, and HUBs to be replaced from either side, ideal for narrow spaces.

  • Magnetic Adsorption Modules – Enables fast assembly and safe installation with stable magnetic connections.

  • Ultra-Slim & Lightweight – Wall-mounted thickness under 100mm ensures a clean, modern look while saving valuable space.

  • Creative Splicing Options – Supports 45° and 90° angle designs, enabling innovative display shapes for unique visual experiences.

  • High Performance – With a refresh rate up to 3840Hz, wide viewing angles (H160°/V140°), and excellent color accuracy, it delivers vibrant and smooth visuals for any setting.

From conferences and exhibitions to stages, studios, and smart city applications, the Gstar-II Series combines cutting-edge technology with practical design, making it a top choice for professional LED display solutions.


Gstar-II series Parameters:

Parameter P1.5 P1.9 P2.6 P2.9 P3.9
Pixel Pitch (mm) 1.5625 1.953 2.604 2.976 3.91
Pixel Density (/m²) 409,600 262,144 147,456 112,896 65,536
LED Model SMD1010 SMD1515 SMD1515 SM2020 SMD2020
Brightness (cd/m²) 1000
Scanning 1/40 1/32 1/24 1/21 1/16
Cabinet Size (mm) 500*750*78mm/500*1000*78mm
Module Size (mm) 250×250
Cabinet Material Die-casting Aluminum
Cabinet Weight 14kg
Maintenance Method Front Maintenance
Max Power Consumption (/m²) 450-550W
Avg. Power Consumption (/m²) 150-180W
Refresh Rate 3840
Grayscale Level 13-16bit
Viewing Angle H160°, V140°
Input Voltage AC100~240V (50-60Hz)
Operating Temperature -20℃~+60℃


Gstar II Series Ultra-Slim Smart And Versatile Indoor Fixed LED Display 0Gstar II Series Ultra-Slim Smart And Versatile Indoor Fixed LED Display 1
