Gflow 500*500mm P3.9-7.8mm Outdoor Transparent LED Display LED Video Mesh Curtain
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gflow |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500mm,500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P3.9-7.8,P10.4 | Port: | Shenzhen |
| Highlight: | P3.9 Transparent LED Display,500*500mm LED Video Mesh Curtain,Outdoor Transparent LED Display |
||
Product Description
Gflow 500*500mm P3.9-7.8mm Outdoor Transparent LED Display Curtain LED Video Mesh
Products Description:
50%High Transparency
With a light transmittance of up to 50%, it offers excellent self-cooling performance, eliminating the need for air conditioning.
Concave and Convex Curve Lock
The -15° to +15° curve locks allow compatibility with straight, concave, and convex configurations, making them suitable for various application scenarios.
Outer 90-Degree Angle Installation
Supports outer 90-degree angle installation, allowing for a variety of creative displays in rental applications.

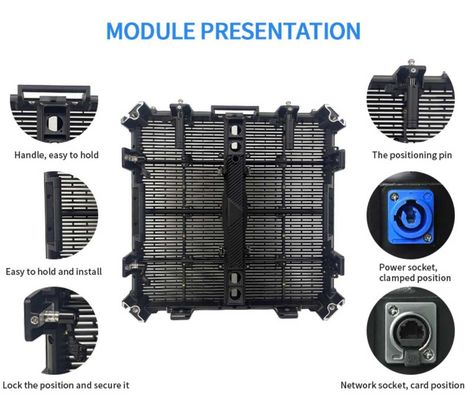

Cabinet Functionality Details
Features upper and lower positioning pins along with left and right quick locks, and power and network card connectors designed for convenient and rapid installation.

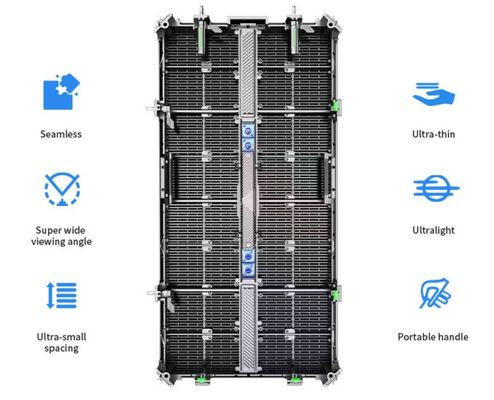

Two Cabinet Sizes
The 500×500mm and 500×1000mm cabinet sizes can be freely combined and used together vertically, saving operational costs and installation time.
Lightweight Design
The cabinet features a die-cast aluminum design, weighing only 18kg per square meter, ensuring no pressure on building structures. With a thickness of just 75mm, it allows for easy installation and maintenance by a single person.
Multiple Cabinets Configured for 1000x1000mm Shipment
Before shipment, multiple cabinets can be configured to a size of 1000x1000mm, significantly reducing on-site installation time and improving work efficiency.
High Brightness & High Contrast
The brightness of 4500 nits ensures exceptional performance during daytime rental events. With a contrast ratio of 6000:1, it guarantees outstanding display quality even during evening rental activities.
| Product | P3.9 | P10.4 |
| Pitch | 3.9-7.8mm | 10.4-10.4mm |
| Density(pixels/m²) | 32768 | 9216 |
| LED Type | SMD1921 | SMD2727 |
| Brightness | 5000nits | 5000nits |
| Scan Method | 1/8 | 1/2 |
| Panel Size | 500×500×75mm/500×1000×75mm | |
| Module Size | 500×125×12mm | |
| Panel Material | Die-casting Aluminum | |
| Panel Weight | 6kg/9kg | 5.5kg/8.5kg |
| Protection Level | IP65 | |
| Maintenance | Rear Service | |
| Max Power Consumption | 680W/sq.m | |
| Average Power Consumption | 220W/sq.m | |
| Refresh Rate | 3840Hz | |
| Grey Scale | 16bit | |
| Viewing Angle | H140°,V140° | |
| Voltage | AC100~240V(50-60Hz) | |
| Working Temperature | -30℃ to 60℃ | |
| Working Humidity | 10%-90%RH | |
| Color Temperature | 3000-9500K | |
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | |
