GCL CTV IV Indoor Fixed HD LED Display Video Wall P0.9 P1.2 P1.5 For Power Saving Stage Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV IV |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | TV, Video | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337mm |
| Function: | SDK | LED Chip: | Nationstar |
| Brightness: | 800nits | Viewing Angle: | H160/V160 |
| Certificate: | CE ROHS FCC | Life Span: | 100000hours |
| Cabinet Material: | Die-casting Alumium | Warranty: | 3 Years |
| Refresh Rate: | 3840Hz | Weight: | 7.5KG/panel |
| Pixel Pitch: | P0.9 P1.2 P1.5 | Port: | Shenzhen |
| Highlight: | Stage Installation LED Display Video Wall,P1.5 Indoor Fixed HD LED Display,Stage Installation HD LED Display |
||
Product Description
GCL TV Indoor Fixed HD LED Display Video Wall P0.9 P1.2 P1.5 For Power Saving Stage Installation
HD 4K, 8K Screen 16: 9 P1.9 P1.25 P1.56 Indoor LED Display Wall Rental LED Display
Ultra HD 2K/4K
27-inch screen, easily achieving a 16:9 golden ratio display, with ultra clear 2K/4K image stitching
Features a wide viewing angle, allowing viewers to enjoy clear and lifelike images from different perspectives. Whether watching up close or from a distance, users can experience an exceptional visual experience.
High Definition and High Refresh Rate for the Best Visual Experience
Features a 16-bit high gray scale and precise color calibration system, delivering high fidelity and consistency in color.
Capable of eliminating moiré patterns and supports HDMI/DVI/VGA/AV input interfaces.

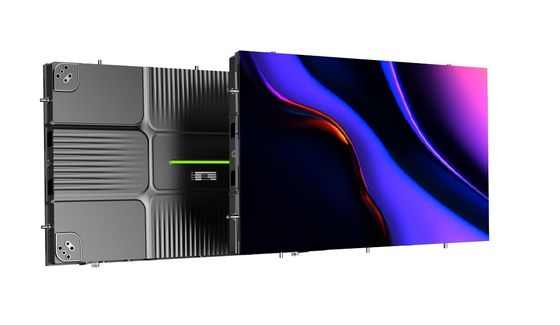

Die-Casting Aluminum Design
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands.
Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with a humanized design is stronger, more light-weight, and precise. This LED panel is highly praised for a better user experience. The pixel pitches of this LED screen are SMD P0.9P1.25, P1.56 P1.875

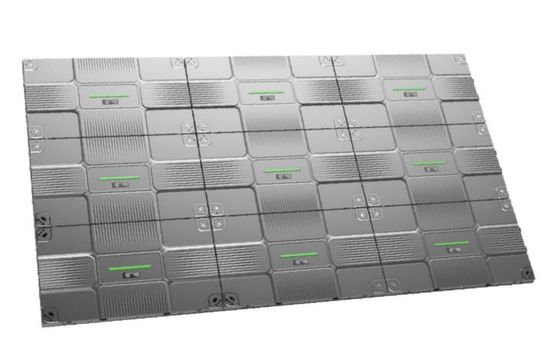

All-front Maintenance Design
Modules, power supplies, and all other accessories can be removed from the front, making front maintenance and installation more convenient.
The modular magnetic design allows for quick and easy maintenance.
Parameters of Gtv IV:
| Name | P0.9 | P1.2 | P1.5 | P1.875 |
| Module | ||||
| LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Module Resolution | 160*180 | 120*135 | 96*108 | 160*90 |
| Module Size(mm) | 150*168.75 | 150*168.75 | 150*168.75 | 300*168.75 |
| Scan Method | 1/36s | 1/27s | 1/27s | 1/54s |
| Cabinet | ||||
| Unit Resolution | 4*2 | 4*2 | 4*2 | 2*2 |
| Cabinet Resolution | 640*320 | 480*270 | 384*216 | 320*180 |
| Cabinet Size(mm) | 600*337.5*63 | |||
| Cabinet Area(㎡) | 0.2025 | |||
| Cabinet Material | Profile Aluminum | |||
| CabinetWeight | 7.5kg | |||
| Densiy (pixels/㎡) | 1137777 | 640000 | 409600 | 284444 |
| Protection Level | IP31 | |||
| Optics | ||||
| Brightness(nits/㎡) | ≥600nits | |||
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-10000K Adjustable | |||
| Viewing Angle | H160°,V160° | |||
| Light Decay Rate | <3% | |||
| ContrastRatio | 9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 400W | 500W | 500W | 500W |
| Average Power Consumption/㎡ | 120W | 150W | 150W | 150W |
| Cabinet Maintenance | Full Front Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
