SMD P3.91 P2.976 3840HZ Outdoor Rental LED Display for Stage Background Video Wall
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gstar-II P1.953/P2.5/P2.604/P2.976/P3.91/P4.81 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | P3.91 Outdoor Rental LED Display,Outdoor Rental LED Display,Stage Background Video Wall |
||
|---|---|---|---|
Product Description
NewP3.91 P2.976 Outdoor 3840HZz Rental Stage Background Big Screen LED Video Wall Smd Booth Panel
Model Number: P2.6, P2.97, P3.91,P4.81
1.Anti-collision design in four corners
Corner protection and anti-collision design around, facilitating transportation and preventing collision with lights

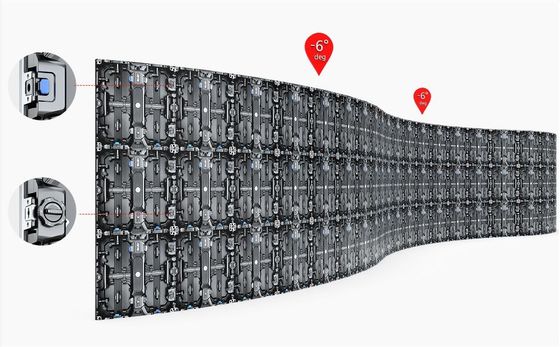

2.Jointable inner and outer arcs
±6° Concave and Convex curve shape
Straight and curved locks are optional

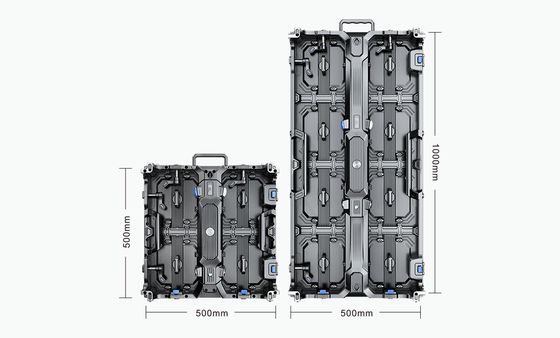

3.2 sizes of cabinet options:
500×500mm and 500×1000mm both size
Two types of cabinet can be freely mixed and matched

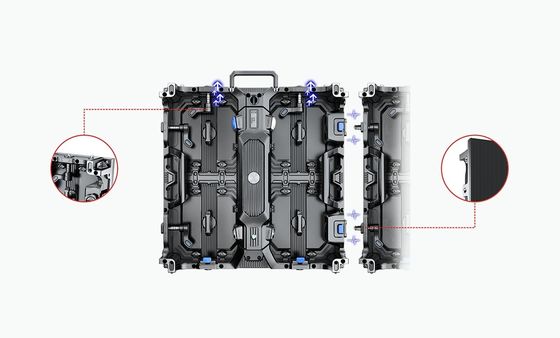

4.Precise positioning, convenient maintenance
100% full front service maintenance
The cabinet is equipped with positioning pins and positioning steel ball design for quick positioning and installation
Parameters of Gmars :
| Product | P1.5 | P1.953 | P2.604 | P2.976 | P3.91 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm | 2.976mm | 3.91mm |
| Density(pixels/m²) | 409600 | 262144 | 147456 | 112896 | 65536 |
| LED Type | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Brightness | 800nits | 800nits | 800nits | 800nits | 800nits |
| Scan Method | 1/32 | 1/16 | 1/24 | 1/21 | 1/16 |
| Panel Size | 500×750×78mm/500×1000×78mm | ||||
| Module Size | 250×250mm | ||||
| Panel Material | Die-casting Aluminum | ||||
| Panel Weight | 14kg | ||||
| Protection Level | IP31 | ||||
| Maintenance | Module Front Service &Rear Service | ||||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 550W/㎡ | 550W/㎡ | 550W/㎡ |
| Average Power Consumption | 150W/㎡ | 150W/㎡ | 180W/㎡ | 180W/㎡ | 180W/㎡ |
| Refresh Rate | 3840Hz | ||||
| Grey Scale | 13-16bit | ||||
| Viewing Angle | H160°,V140° | ||||
| Voltage | AC100~240V(50-60Hz) | ||||
| Working Temperature | -20℃ to 60℃ | ||||
| Working Humidity | 10%-95%RH | ||||
| Color Temperature | 3000-9500K | ||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||
