Indoor 1200 Nit XR LED Display 500mm Panel Giant Screens For Virtual Shooting Studio
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmars PH1.953mm /2.5mm/2.604mm/2.976mm/3.91mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | Virtual Shooting Studio XR LED Display,1200 Nit XR LED Display,500mm XR LED Display |
||
|---|---|---|---|
Product Description
Indoor 1200 Nit XR LED Display 500mm Panel Giant Screens For Virtual Shooting Studio
LED Stage Screen Indoor Full Color Rental LED Display Screen XR Shooting Available
Great Cabinet Design

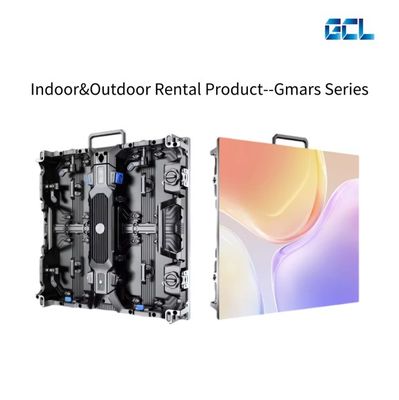

The receiving card, power supply and hub card are placed in the control box in the back of the cabinet. The control box can be swapped out quickly. In case of emergency, you can replace the whole control box in a short time. That greatly reduces the “down time” during the event.

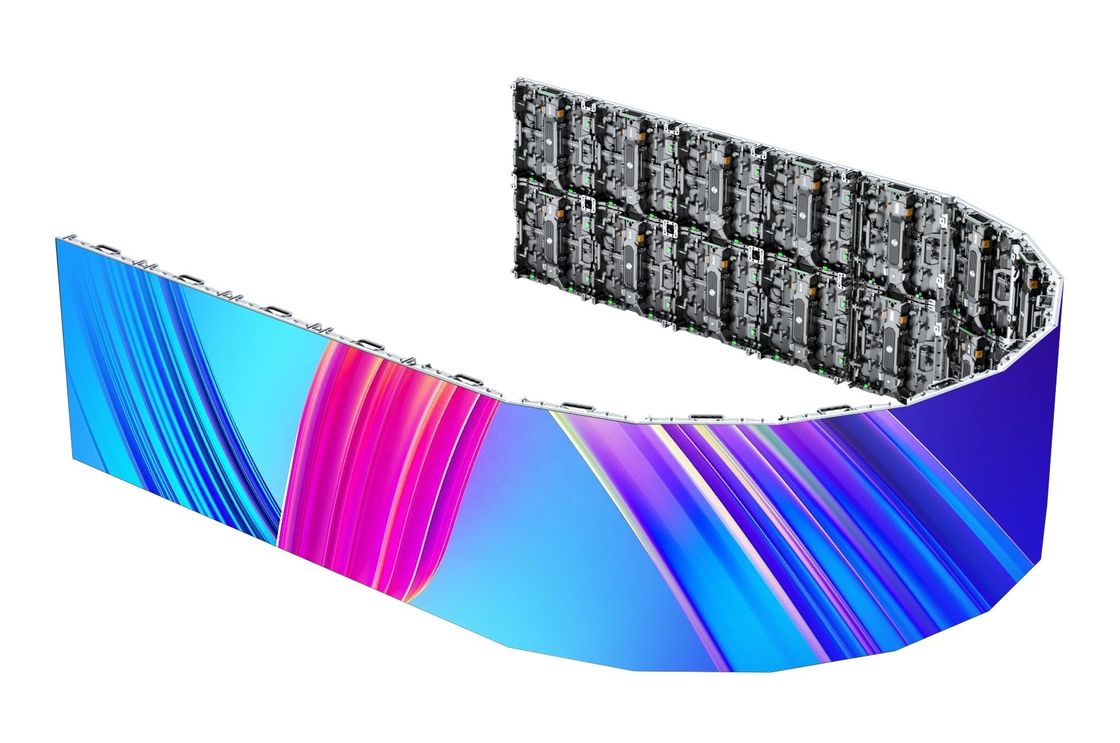

Putting connectors down is for easier pulling out and inserting in. Testing button is to test the panel before building up the screen. Strong locking system and curved design are available. The lock is very secure and strong. It can be designed to be curved to form a curved screen from -15°(convex) to +15°(concave).
Brilliant Visual Performance
“Gmars XR” Series LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.
Ultimate Refresh Rate Refresh rate of “Gmars XR” LED video wall can be up to 7680Hz
Excellent Gray Scale Gray Scale of this kind of LED panel can be (16bits-24bits)
Parameters of Gmars XR Series:
| Product | P1.5 | P1.953 | P2.604 |
| Pitch | 1.5625mm | 1.953mm | 2.604mm |
| Density (pixels/m²) | 409600 | 262144 | 147456 |
| LED Type | SMD1212 | SMD1212 | SMD1515 |
| Brightness | 1200nits | 1200nits | 1200nits |
| Scan Method | 1/32 | 1/25 | 1/32 |
| Panel Size | 500×500mm/500×1000mm both available) | ||
| Module Size | 250×250mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 8kg | ||
| Protection Leve | IP31 | ||
| Maintenance | Module Front Service &Rear Service | ||
| Max Power Consumption | 450W/㎡ | 450W/㎡ | 450W/㎡ |
| Average PowerConsumption | 150W/㎡ | 150W/㎡ | 150W/㎡ |
| Refresh Rate | 7680Hz | ||
| GreyScale | 14-16bit | ||
| Viewing Angle | H160°,V140° | ||
| CurveDegrees(Optional) | -6°~+6° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -30℃to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-95000K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
