Outdoor P3.91/P10.4 Tech Transparent LED Display Screen for Network Control 500*1000mm
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P3.91\P10.4 | Port: | Shenzhen |
| Highlight: | P3.91 Transparent LED Display Screen,Network Control Transparent LED Display Screen,P10.4 Transparent LED Display Screen |
||
Product Description

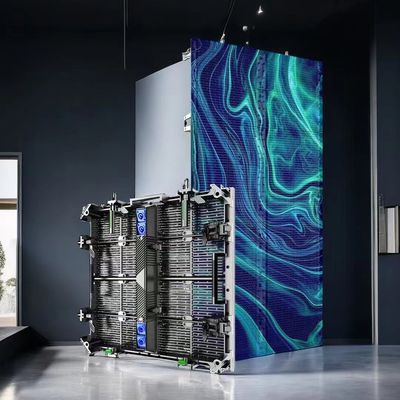

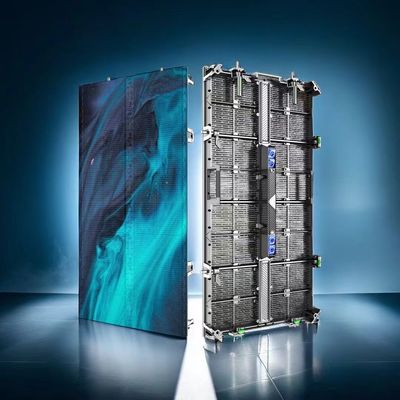

P3.9,P10.4,500*500mm/500*1000mm Panel Size Full Color Outdoor Transparent Mesh Curtain LED Display Screen
Products Description
High transparency:
With a translucency of up to 50%, it boasts excellent self-cooling properties, eliminating the need for air conditioning.

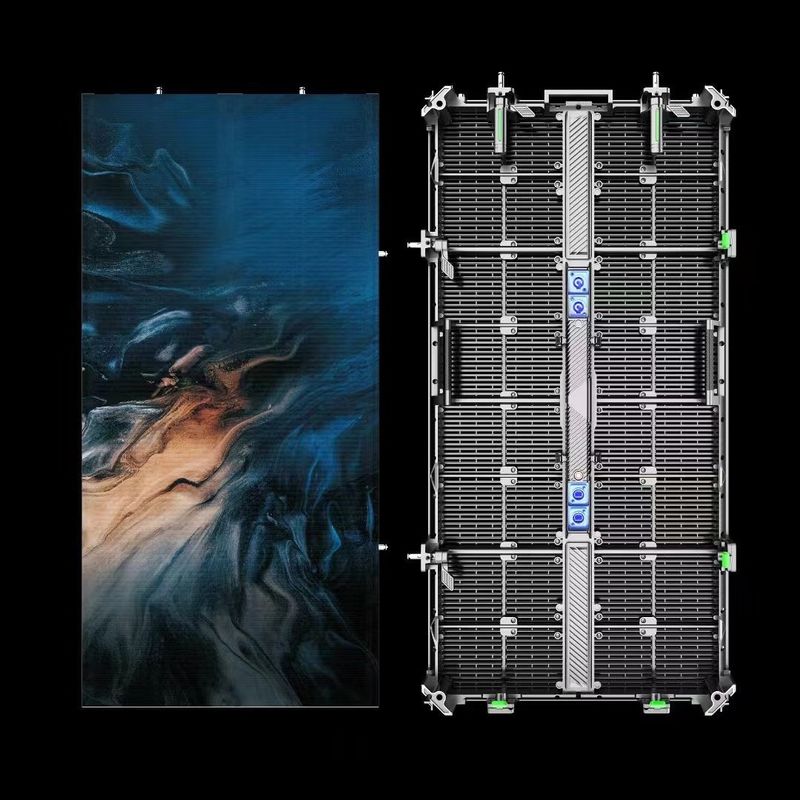

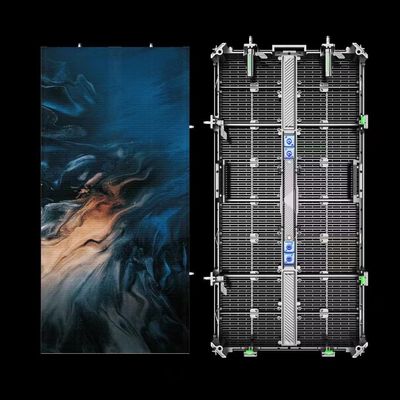

Two types of boxes can be assembled together:
The 500x1000mm and 500x500mm boxes can be mixed and matched flexibly, making them suitable for various installation spaces and helping to reduce stock costs.

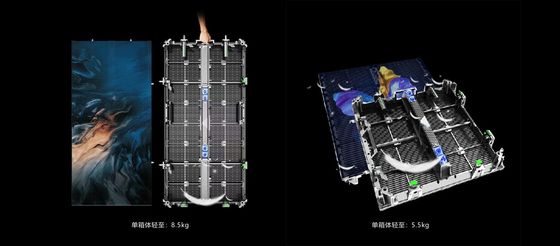

Lightweight Design:
The enclosure is made from die-cast aluminum, measuring only 75mm in thickness and weighing 18KG/㎡, eliminating structural stress; a single person can easily install and maintain it.
The IP65 waterproof design:
The enclosure has a protection rating of IP65, making it suitable for use in various harsh weather conditions.

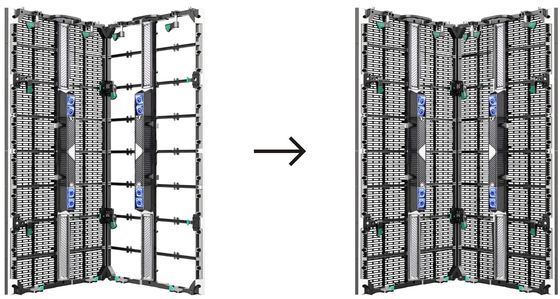

90° Right Angle Assembly:
The casing supports a 90° right angle assembly, allowing modules to be easily disassembled and inserted from the rear of the casing, making it convenient for plugging and maintenance.
High Refresh Rate and Brightness:
The display offers smooth playback without stuttering or flickering, delivering excellent inner visual effects and vibrant, rich colors. The Gmesh-R series ensures that every frame of high frame rate video sources is clear and colorful. In contrast, ordinary screens with high frame rate video sources may result in blurriness and lag.
140° Ultra Wide Angle:
H140, V140° large angle perfectly presents the visual experience.
Parameters of Gmesh Series:
| Name | Gmesh-R3.9 | Gmesh-R10 |
| Pixel Pitch(mm) | 3.9-7.8 | 10.4-10.4 |
| Densiy (pixels/㎡) | 32768 | 9216 |
| LED Type | SMD1921 | SMD2727 |
| Brightress (nits/㎡) | ≥5000cd/㎡ | ≥5000cd/㎡ |
| Scan Method | 1/8S | 1/2S |
| Cabinet Size(mm) | 500*1000*75mm/500*500*75mm | 500*1000*75mm/500*500*75mm |
| Module Size(mm) | 500*125*12mm | 500*125*12mm |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| CabinetWeight | 500*500 6kg 500*1000 9kg |
500*500 5.5kg 500*1000 8.5kg |
| Protection Level | IP65 | 前后IP65 |
| Cabinet Maintenance | Rear Service | Rear Service |
| Max Power Consumption/㎡ | 700 W | 700 W |
| Average Power Consumption/㎡ | 150W | 150W |
| Refresh Rate | 3840HZ | 3840HZ |
| Transparency | 50% | 50% |
| Viewing Angle | H140°, V140° | |
| Input Voltage | AC100~240V(50-60Hz) | |
| Working Temperature | ﹣40℃－﹢70℃ | |
| Woking Humidiy | 10%－90%RH | |
| Color Temperature | 6500-9500K Adjustable | |
| Installation Way | Rental &Fixed Installation &Hanging Installation | |
| Support Radians | Fixed Installation:-45°-+45,Rental:-10°-+10° | |
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | |
