Ggalaxy 500*500mm Indoor P1.95 P2.5 mm Video Wall Display with 3840Hz Refresh Rate
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Ggalaxy |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Flight case, Ply-wooden case |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Conference Room | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*500mm | Brightness: | 1200cd/sqm |
| Module Size: | 250*250mm | Refresh Rate: | 3840Hz |
| LED Chip: | SMD1212 | Power Supply: | Meanwell |
| Viewing Angle: | 160H/140V | Scan Mode: | 1/20Scan |
| Cabinet Material: | Die-casting Alumium | Weight: | 7.5Kg/panel |
| IP Rate: | IP43/IP43 | Pixel Pitch: | P1.95mm P2.5mm |
| Port: | Shenzhen Port | ||
| Highlight: | 500*500mm Video Wall Display,3840Hz Video Wall Display,Indoor P1.95 Video Wall Display |
||
Product Description
500*500mm Indoor Full Colour P1.95 P2.5 mm Video Wall Led Display Screen
Product features:

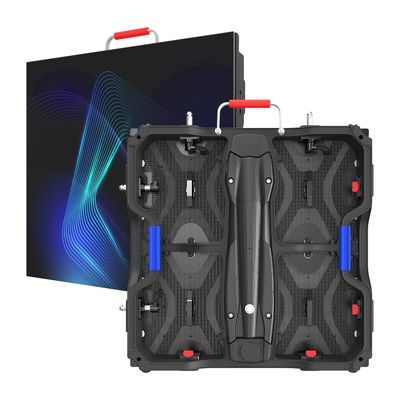

The Ggalaxy series is a newly designed indoor die-cast aluminium enclosure; it is lightweight and can be wall-mounted. Made from die-cast aluminium, it features a modular design that supports full front maintenance, offers low grey with high brightness and wide viewing angles, and is widely used in churches, auditoriums, bars, data security, and command monitoring centres.
Low Grey High Brightness Technology:
Featuring 16-bit high grey scale, high brightness, no afterimage, and low power consumption, it is non-reflective for indoor use, with a contrast ratio of up to 6000:1；
Wide Viewing Experience:
With a horizontal viewing angle of 160° and a vertical viewing angle of 140°, the display allows for a clear view of the content from multiple angles; the surface flatness of the display screen is within ≤1mm.
High refresh rate:
With a refresh rate of 3840Hz, effectively reducing screen flicker.
Lightweight and easy to install:
The lightweight die-cast aluminium casing is as thin as 8mm, and the internally curved handle design facilitates convenient installation.
Wall-Mount Installation:

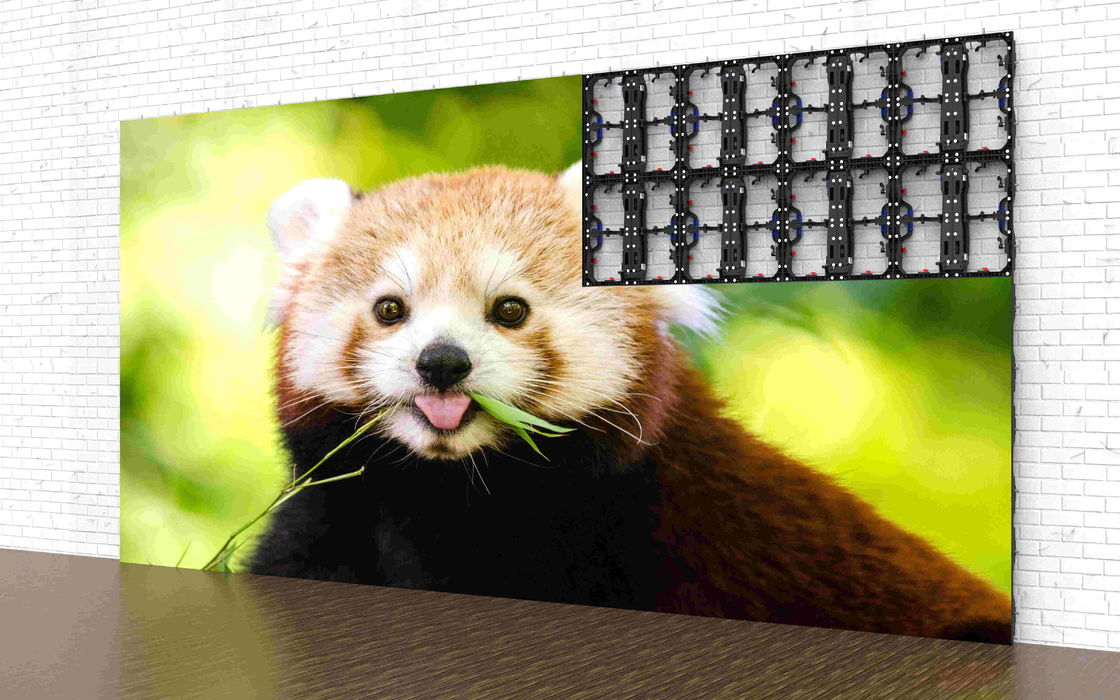

The lightweight design of the unit allows small screens to be easily mounted on the wall without a heavy steel frame, saving both costs and installation space.

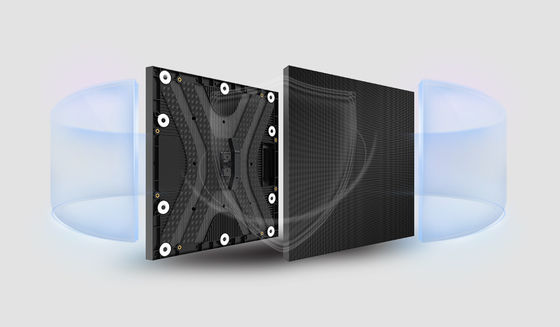

Modular design for easy maintenance:
specifically designed for wall-mounted projects, it eliminates the need for a dedicated maintenance passage. Maintenance can be easily performed by removing just two screws, allowing the power box to be detached effortlessly for servicing.
Parameters of Ggalaxy Series:
| Product | P1.953 | P2.5 | P2.604 |
| Pitch | 1.953mm | 2.5mm | 2.604mm |
| Density (pixels/m² | 262144 | 160000 | 147456 |
| LED Type | SMD1212 | SMD1212 | SMD1515 |
| Brightness | 800nits | 800nits | 900nits |
| Scan Method | 1/32 | 1/32 | 1/32 |
| Cabinet Size | 500*500mm | ||
| Module Size | 250*250mm | ||
| Cabinet Material | Die-casting Aluminum | ||
| Cabinet Weight | 7.6kg | 7.5kg | 7.5kg |
| Protection Level | IP34 | ||
| Cabinet Maintenance | Module Front Service &Rear Service | ||
| Max Power Consumption | 400W/m² | 360W/m² | 450W/m² |
| Average Power Consumption | 136W/m | 120W/m | 150W/m |
| Refresh Rate | 3840Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H160°,V140° | ||
| Curve Degrees (Optional) | -10°~+10° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -30℃-+65℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | EMC/CE/ROHS/CCC/FCC/ISO | ||
