Background XR LED Display P2.6 Virtual Shooting LED Screen For Wedding Stage Decoration
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmars PH1.953mm /2.5mm/2.604mm/2.976mm/3.91mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | Background XR LED Display,P2.6 XR LED Display,Wedding Stage Decoration XR LED Screen |
||
|---|---|---|---|
Product Description
XR Background LED Screen P 1.9P2.6 Wedding Stage Decoration LED Video Wall
Virtual Production LED Display in High Refresh Rate 7680Hz P1.9 Rental Studio Video Wall
Custom LED display for Virtual Production P2 Fixed Installation in High Gray Scale 16 Bits 24 Bits
Two cabinet size
Both 500*500mm and 500*1000mm cabinet sizes available
Two cabinet sizes mix
500*500mm cabinet and 500*1000mm cabinet can be installed together;

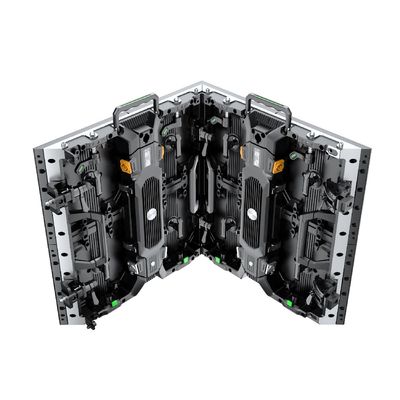

Panel 45° cut angle

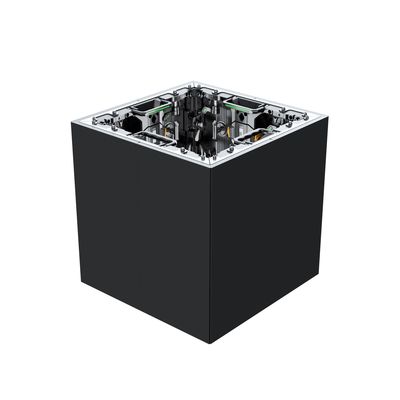

The cabinet can be cut at 45° and assembled into a tetrahedron at 90°.

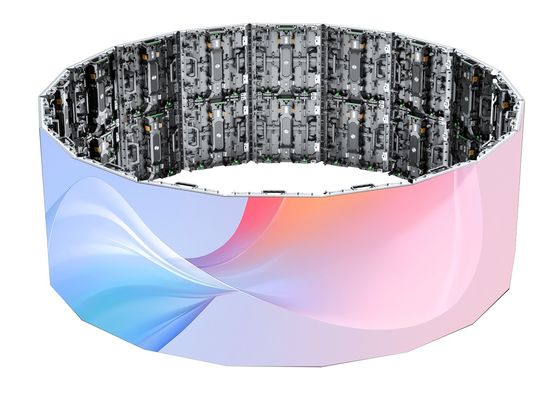

Concave and convex curv
Cabinet curve degree -10o to +10o
Corner Protection
Intelligent corner protection design, 360o protecting the LEDs from damage during transportation and installation

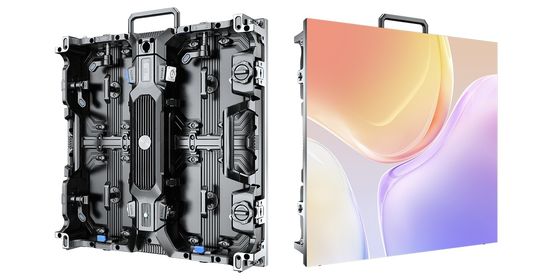

Front and rear service
Foldable Module Handle
XR Virtual Production LED Screen P3.91 P4.81for Indoor Outdoor Rental or Hiring

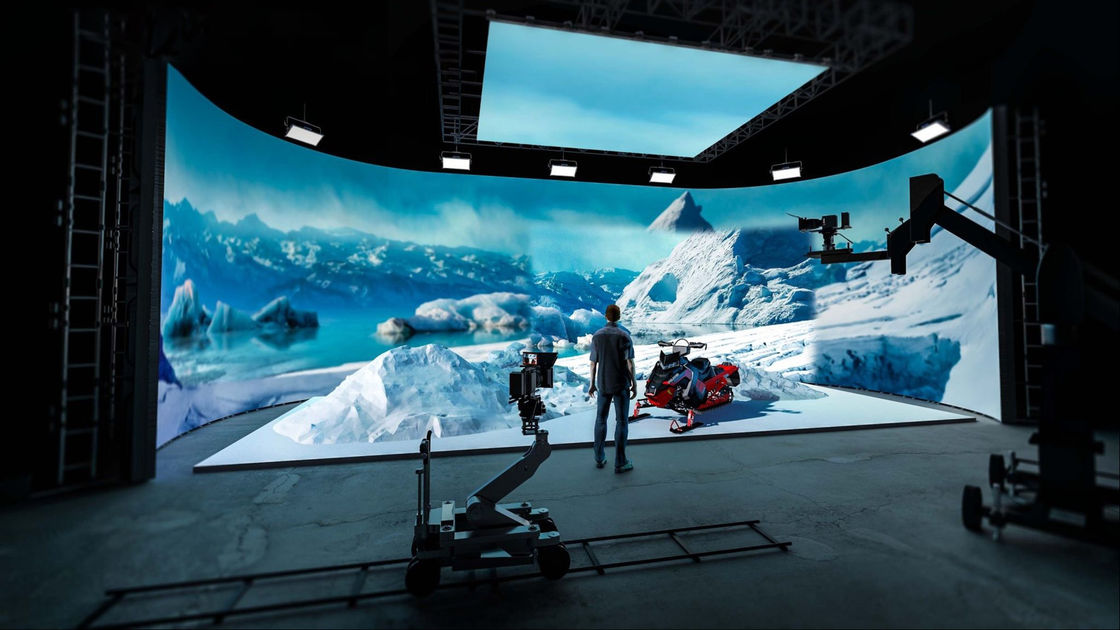

Indoor Cinema LED Video Wall for Virtual Production Studio Shooting Immersive Stage 3D Effect
HD Unreal Engine Full Color LED Display Movie Virtual Production LED Studio in Custom Shape
Corner protection and anti-collision design around, facilitating transportation and preventing collision with lights
±10° Concave and Convex curve shape,Straight and curved locks are optional
Precise positioning, convenient maintenance
| Name | Indoor | ||||||
| P1.95 | P2.5 | P2.604 | P2.976 | P3.91 | |||
| Module | |||||||
| LED Type | SMD1212 | SMD1212 | SMD1515 | SMD2121 | SMD2121 | ||
| Pixel Pitch(mm) | 1.953 | 2.5 | 2.604 | 2.976 | 3.91 | ||
| Module Resolution | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 | ||
| Module Size(mm) | 250*250 | ||||||
| Scan Method | 1/32s | 1/25s | 1/32s | 1/28s | 1/16s | ||
| Cabinet | |||||||
| Unit Resolution | 2*2 | ||||||
| Cabinet Resolution | 256*256 | 200*200 | 192*192 | 168*168 | 128*128 | ||
| Cabinet Size(mm) | 500*500*75/500*1000*75 | ||||||
| Cabinet Area(m²) | 0.25/0.5 | ||||||
| Cabinet Material | Die-casting Aluminum | ||||||
| CabinetWeight | 7.5kg | 7.5kg | 7.5kg | 7.5kg | 7.5kg | ||
| Densiy (pixels/㎡) | 262144 | 160000 | 147456 | 112896 | 65536 | ||
| Protection Level | IP34 | ||||||
| Optics | |||||||
| Brightness(nits) | 900nits | 900nits | 900nits | 1000nits | 1200nits | ||
| Calibration | Supports single point correction | ||||||
| Color Temperature | 2000-10000K Adjustable | ||||||
| Viewing Angle | H160°,V140° | ||||||
| Loht Decay Rate | <3% | ||||||
| ContrastRatio | 6000:1 | ||||||
| Grey Scale | 16bit | ||||||
| Electric | |||||||
| Max Power Consumption/㎡ | 400w | 400W | 400w | 520W | 480w | ||
| Average Power Consumption/㎡ | 135W | 135W | 135W | 170W | 160W | ||
| Cabinet Maintenance | Front&Rear Service | ||||||
| Input Voltage | AC110~220V(50-60Hz) | ||||||
| Performance | |||||||
| Drive Mode | Constant Current Drive | ||||||
| Refresh Rate | ≥7680Hz | ||||||
| Frame Rate | 50Hz/60Hz | ||||||
| Working Condition | |||||||
| Working TemperatureWorking Humidity | -30℃~+60℃/10%-95%RH | ||||||
| Storage Temperature/Sorage Humidiy | -30℃~+85℃ /10%-95%RH | ||||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||||||
