Network Control Transparent LED Display Screen High Technology Energy Saving
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | gcl |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gmesh |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-20Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | Full Color |
|---|---|---|---|
| Panel Size: | 500*1000mm | Warranty: | 3 Years |
| Pixel Pitch: | P15.6 | Port: | Shenzhen |
| Highlight: | Network Control Transparent LED Display Screen,High Technology Transparent LED Display Screen,Energy Saving Translucent LED Screen |
||
Product Description

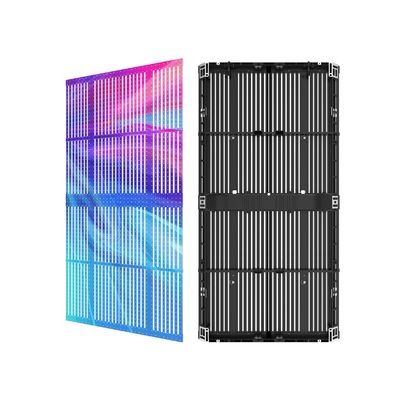

P7.8-3.9,500*1000mm Panel Size Full Color Outdoor Transparent Mesh Curtain LED Display Screen
Products Description
1. The first national 7.8-3.9 grille screen product;
2. High safety performance: The product has passed international ClassB certification and has excellent flame retardant and heat dissipation effects. It has extremely high safety performance and can be used with confidence.
3. High product transparency: with a light transmittance of up to 60%; Installing outdoors does not affect indoor lighting.
4. Diversified creative installation: can support up to 90 degree external arc installation (right angle installation), and can achieve creative displays such as internal and external arcs,
5. Multi scenario use: can be used in two scenarios: stage rental and outdoor fixed screen.

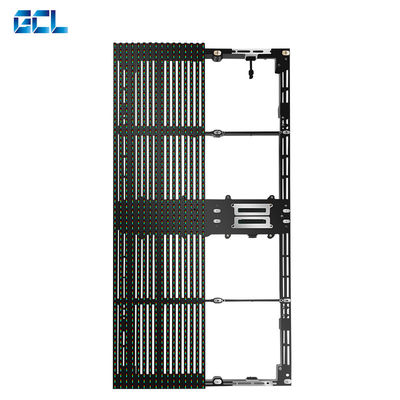

6. Support full front maintenance (power supply, card, module can be removed from the front), and can also be installed for rear maintenance

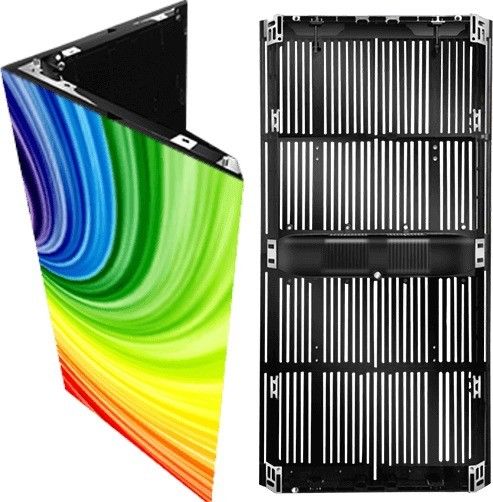

7.Seamless 90°Splicing
8.Optional Curve Lock
9.Concave and convex curve;
10.Curve degree:-15° to+15°
11.Integrated Power and Signal Cable
12.Save 50% of the cable connecting time
Parameters of Gmesh Series:
| Name | Gmesh7.8-3.9 | Gmesh10 | Gmesh16-A | Gmesh16-B |
| Module | ||||
| LED Type | SMD1921 | SMD2727 | SMD2727 | DIP346 |
| Pixel Pitch(mm) | 7.8-3.9 | 10.4 | 15.625 | 15.625 |
| Module Resolution | 32*128 | 24*48 | 16*32 | 16*32 |
| Module Size(mm) | 250*500 | 250*500 | 250*500 | 250*500 |
| Scan Method | 1/8s | 1/3s | Static | Static |
| Cabinet | ||||
| UnitResolution | 2*2 | 2*2 | 2*2 | 2*2 |
| Cabinet Resolution | 64*256 | 48*96 | 32*64 | 32*64 |
| Cabinet Size(mm) | 500*1000*41 | 500*1000*44 | 500*1000*45 | 500*1000*50 |
| Cabinet Area(m²) | 0.5 | |||
| Cabinet Material | Die-casting Aluminum | |||
| Cabinet Weight | 19kg | 19kg | 18kg | 22kg |
| Densiy (pixels/㎡) | 32768 | 9216 | 4096 | 4096 |
| Protection Level | Front &Rear Ip65 | |||
| Optics | ||||
| Brightness(nits/㎡) | 5000 | 5500 | 5000 | 10000 |
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 1700-9500K Adjustable | |||
| Viewing Angle | H140°,V120° | H140°,V120° | H140°,V120° | H100°,V50° |
| Transparency | 20% | 30% | 30% | 30% |
| Light Decay Rate | <3% | |||
| Contrast Ratio | ≥9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/m² | 640W | 640W | 640W | 400W |
| Average Power Consumption/㎡ | 220W | 220W | 220W | 120W |
| Cabinet Maintenance | Full Front/Rear Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
| Performance | ||||
| Drive Mode | Constant Current Drive | |||
| Refresh Rate | ≥3840Hz | |||
| Frame Rate | 50Hz/60Hz | |||
