High Brightness Indoor Display Screen Full Color Indoor High Definition Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | COB P0.9\P1.25\P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | Single package size:65X40X30 cm |
| Delivery Time: | 15-20Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Highlight: | High Brightness Indoor Display Screen,Full Color Indoor Display Screen,Full Color HD LED screen |
||
|---|---|---|---|
Product Description

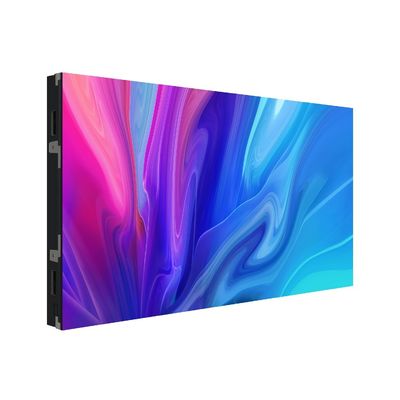

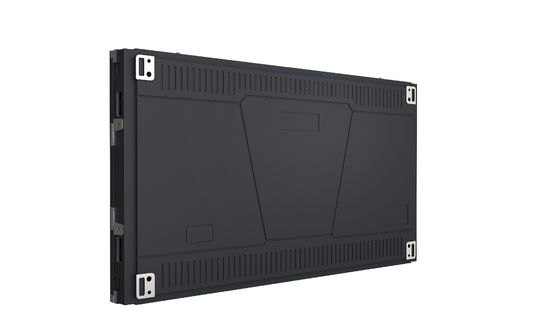

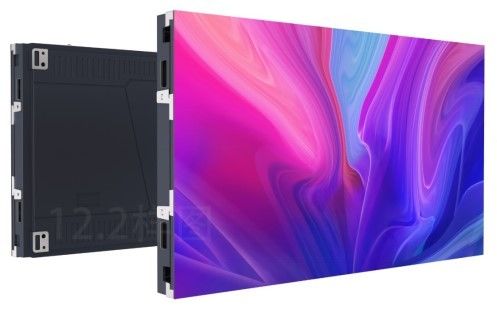

Led Video Wall HD COB P0.9 P1.25 P1.5 Led Display Indoor Led Screen
1 ,Standard display unit, supporting dual power and dual card backup display units;
1 unit box: 8 light boards+backup power supply+HUB+die cast box
2,Product size: 150mm (width) X168.75mm (height)
Product Features
RGB full flip chipRGB full flip chip
Excellent hardware protection (anti knock, waterproof, anti static, scrubbing)
Ultra high brightness, contrast, gamut, and ink at one time
The extending screen mirror black and bright, comparable to the appearance of the LCD screen
RoHS compliance meets RoHS requirements

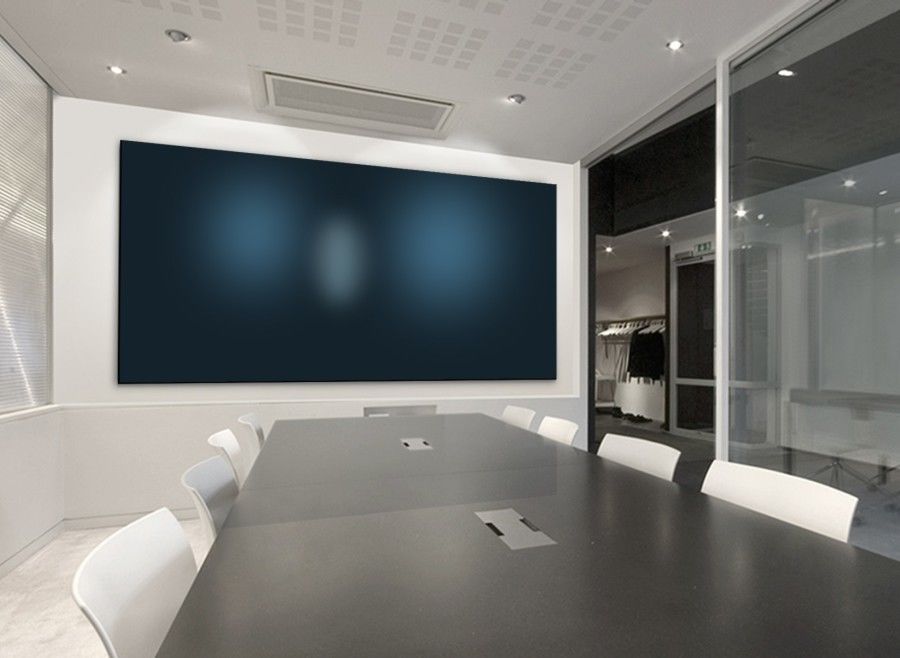

Application scenarios
►Commercial display
► Special consumer display
►General use
Packaging
Display module packaging specifications: 8pcs per layer for inner packaging, 5 layers per box, a total of 40pcs light boards per box,
Outer box size: 450mm * 417mm * 310mm.
Unit box packaging specifications: 5pcs per box, outer box size: 680mm * 310mm * 420mm
| Product | P0.9 | P1.2 | P1.5 |
| Pitch | 0.9375mm | 1.25mm | 1.5625mm |
| Density(pixels/m²) | 1137777 | 640000 | 409600 |
| LED Type | Flip Chip COB | ||
| Brightness | 600nits | ||
| Scan Method | 1/40 | 1/40 | 1/48 |
| Panel Size | 600×337.5×29.2mm | ||
| Module Size | 150×168.5mm | ||
| Panel Material | Die-casting Aluminum | ||
| Panel Weight | 4.2kg | ||
| Protection Level | IP50 | ||
| Maintenance | Full Front Service | ||
| Max Power Consumption | 275W/㎡ | 245W/㎡ | 205W/㎡ |
| Average PowerConsumption | 90W/㎡ | 80W/㎡ | 70W/㎡ |
| Refresh Rate | ≥3840Hz | ||
| Grey Scale | 13-16bit | ||
| Viewing Angle | H170°,V170° | ||
| Voltage | AC100~240V(50-60Hz) | ||
| Working Temperature | -20℃to 60℃ | ||
| Working Humidity | 10%-90%RH | ||
| Color Temperature | 3000-9500K | ||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||
About GCL :
The focus of GCL lies in the manufacturing of various types of LED display screens, including indoor and outdoor displays, rental displays, flexible displays, transparent displays, dance floor series, high-definition resolution displays, perimeter displays, stadium sport screens, LED signs, display boards and billboards.
