Steel Cabinet P10 Stadium Perimeter LED Display E Sports Display Screen For Large Football Stadium
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gsport |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | plywood,flight case,paper board |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor | Color: | FULL COLOR |
|---|---|---|---|
| Panel Size: | Customized | Brightness: | 6500nits |
| Module Size: | 320*160mm | Cabinet Weight: | 35kg/m2 |
| LED Type: | SMD3535 | Usage: | Sport |
| Protection Level: | IP65 | Cabinet Service: | Rear Service |
| Warranty: | 3 Years | Pixel Pitch: | P6 P8 P10cm |
| Highlight: | Steel Cabinet Stadium Perimeter LED Display,Football Stadium Perimeter LED Display,Steel Cabinet Perimeter LED Display |
||
Product Description
Products Description:
Football stadium LED display screens are essential for enhancing the spectator experience by providing clear, vibrant visuals of live action, replays, and advertisements. These screens are available in three pixel pitch options: P6, P8, and P10cm, ensuring high-resolution displays suitable for various viewing distances.
One of the standout features of these LED screens is their front maintenance capability, which simplifies servicing and reduces downtime. The screens are designed with separate waterproofing for cabinets and modules, achieving an IP65 protection rating. This ensures durability and reliable performance even in harsh weather conditions, making them ideal for outdoor use.

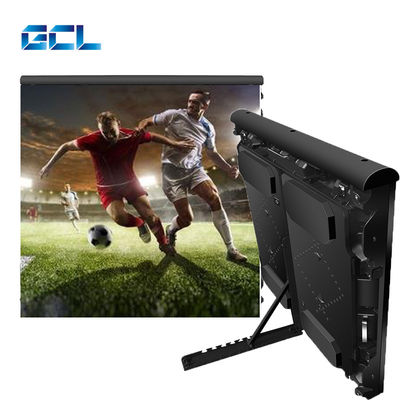

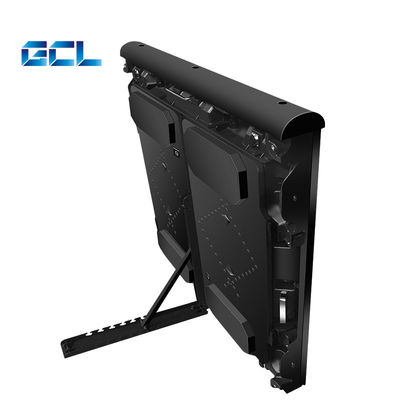

The screens boast high protection performance and easy installation. Each cabinet is equipped with two fast locks on both sides and the top, allowing for quick and secure assembly. Additionally, the design eliminates the need for protection pads and supporting legs, further streamlining the setup process.
These LED displays are versatile and can be used for both outdoor rental events and fixed installations. Whether for temporary setups or permanent stadium fixtures, they deliver exceptional performance, making them a top choice for modern football stadiums.
| Product | P6 | P8 | P10 |
| Pitch(mm) | 6 | 8 | 10 |
| Density(pixels/m2) | 27777 | 15625 | 10000 |
| LED Type | SMD3535 | ||
| Brightness(nits) | 60000 | 6000 | 6500 |
| Scan Method | 1/8S | 1/4S | 1/3S |
| Cabinet Size(mm) | Customized | ||
| Module Size | 192*192 | 256*128 | 320*160 |
| Cabinet Material | Magnesium Diecasting | ||
| Cabinet Weight | 35kg/m2 | ||
| Protection Level | IP65 | ||
| Cabinet Maintenance | Rear Service | ||
| Max Power Consumption | 750w/m2 | 800w/m2 | 720w/m2 |
| Average Power Consumption | 250w/m2 | 300w/m2 | 240w/m2 |
| Refresh Rate | 2880-3840HZ | ||
| Grey Scale | 16 bit | ||
| Viewing Angle | H140o,V140o | ||
| Voltage | AC100~240V(50-63Hz) | ||
| Working Temperature | -30 oC - + 65 oC | ||
| Working Humidity | 10% -- 90%RH | ||
| Color Temperature | 6500-9500K | ||
| Certificationa | EMC/CE/ROHS/CCC/FCC/ISO | ||
