Fixed installation Advertising LED Display Screen
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gpro |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Price to be discussed |
| Packaging Details: | wooden case,plywood,flight case,paper board |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Outdoor, Advertising/Fixed Installation, Video Advertising | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640x960mm, 640x960mm |
| Supplier Type: | Original Manufacturer, OEM | Media Available: | Datasheet, Photo, EDA/CAD Models, Video |
| Use: | Advertising Publish, Shopping Mall, Welcome Display, Exhibition Hall, Large Commercial Complex, Large Sports Center, Urban Landmark | Function: | SDK |
| Pixel Pitch: | 10mm, 10mm | Specification: | Video Wall |
| Touch Screen Type: | Capacitive | Brightness: | 6000-10000, 6000-10000, 10000cd/m2 |
| Pixel Density: | 160000, 160000 | Contrast Ratio: | ≥9000:1, ≥9000:1 |
| Lifespan (hours): | 100000, 100000 | IP Rating: | IP65, IP65 |
| Resolution: | 400-16384 | View Angle（H/V）: | H140°,V140°, H140°,V140° |
| Display Type: | Outdoor | Product Name: | Gpro |
| Viewing Angle: | H140 V140 | Warranty: | 3 Years |
| LED Type: | SMD 1415 | Port: | Shenzhen |
| Highlight: | Fixed installation Advertising LED Display Screen,Fixed installation Outdoor LED Advertising Screen,IP65 Outdoor LED Advertising Board |
||
Product Description
GCL Gpro Outdoor P6 P8 P10 Ultra HD Big LED Advertising Videowall Screen for Large Shopping Malls P2.5P4P6P8P10P16
Products Description
High Brightness
High-quality LEDs can reach 10,000 nits. The pixel pitch are P2.5,P4, P5.7, P6.6, P8, P10(DIP ),P16(DIP);
High Resolution
Fine pixel pitches form high resolution, which can capture and hold the attention of passerby.
Visual Performance
High contrast: The contrast ratio of the LED screen gives a sharp image quality.
High brightness: The brightness of the LED Display can be up to 10,000 nits. Even the screen is facing directly sunlight, the image still looks clear.
Energy Saving
We use customized PCB and power supply, so average power consumption is less than 130W/sqm.
1.Double Water Proof,Module Water Proof,Cabinet water proof,which can be able to withstand extreme weather
Product Parameter

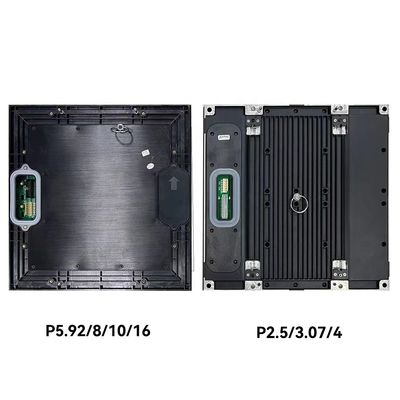

| Product | P2.5 | P4 | P5.9 | P8 | P10 | P10D | P16 |
| Pitch | 2.5mm | 4mm | 5.92mm | 8mm | 10mm | 10mm | 16mm |
| Density(pixels/m²) | 160000 | 62500 | 28476 | 15625 | 10000 | 10000 | 3906 |
| LED Type | SMD1415 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | DIP346 | DIP346 |
| Brightness | 6000nits | 6000nits | 7000nits | 7000nits | 7000nits | 8000nits | 8000nits |
| Scan Method | 1/16 | 1/10 | 1/6 | 1/4 | 1/2 | 1/4 | Static |
| Panel Size | 640×960mm | ||||||
| Module Size | 320×320mm | ||||||
| Panel Material | Die-casting Aluminum | ||||||
| Panel Weight | 23.5Kg | 23.5Kg | 19Kg | 19Kg | 19Kg | 21Kg | 21Kg |
| Protection Level | IP65 | ||||||
| Maintenance | Front/Rear Service | ||||||
| Max Power Consumption | 650W/㎡ | 720W/㎡ | 720W/㎡ | 720W/㎡ | 720W/㎡ | 350W/㎡ | 350W/㎡ |
| Average Power Consumption | 210W/㎡ | 240W/㎡ | 240W/㎡ | 240W/㎡ | 240W/㎡ | 110W/㎡ | 110W/㎡ |
| Refresh Rate | 3840Hz | ||||||
| Grey Scale | 13-16bit | ||||||
| Viewing Angle | H160°,V140° | H100°,V50° | |||||
| Voltage | AC100~240V(50-60Hz) | ||||||
| Working Temperature | -30℃ to 60℃ | ||||||
| Working Humidity | 10%-90%RH | ||||||
| Color Temperature | 3000-9500K | ||||||
| Certifications | CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO | ||||||
Our Advantages
1) If it's for rental use, we will pack all cabinets by flight cases;
2) If it's for fixed installation, we will pack all cabinets by plywood cases .
Q1. Is GCL a manufacturer or a trading company? Manufacturer. GCL has been a professional LED screen manufacturer for more than 21 years, since 1999. Our factory covers more than 100,000 square feet and we are staffed with about 300 employees.
Q2. Why is the Alibaba account of your company only one year old? We have two Alibaba accounts, both under the same company name. The first one is 11 years old. To boost our sales, we registered a new Alibaba account in 2020.
Q3. I have never cooperated with your company before, nor have I visited your factory, how do I know that your company is trustworthy? GCL was founded in 1999, we are the most experienced LED display factory in China. All of our company information displayed on Alibaba, including our company video, has been verified by Alibaba. The fact that we have done a lot of magnificent government projects all over the world proves that we are a very professional company. The fact that we provide 3 years warranty while all the other companies provide only 2 years proves that we are more confident about our product quality. You can do the purchase and transfer the money through Trade Assurance on Alibaba, which would 100% project you from any fraud.
