Name: Outdoor Fixed Installation SMD P4 P5 LED Module Sign For Trucks , 320x320mm HD LED Screens
Brand: Shenzhen GCL Electronics Co., Ltd
SKU: Gsurface
Availability: InStock

Brand Name:	GCL
Model Number:	Gsurface
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Packing with Flight case & Wooden box & Hard paper box

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Outdoor Fixed Installation

Color:

Full Color

Panel Size:

Customized

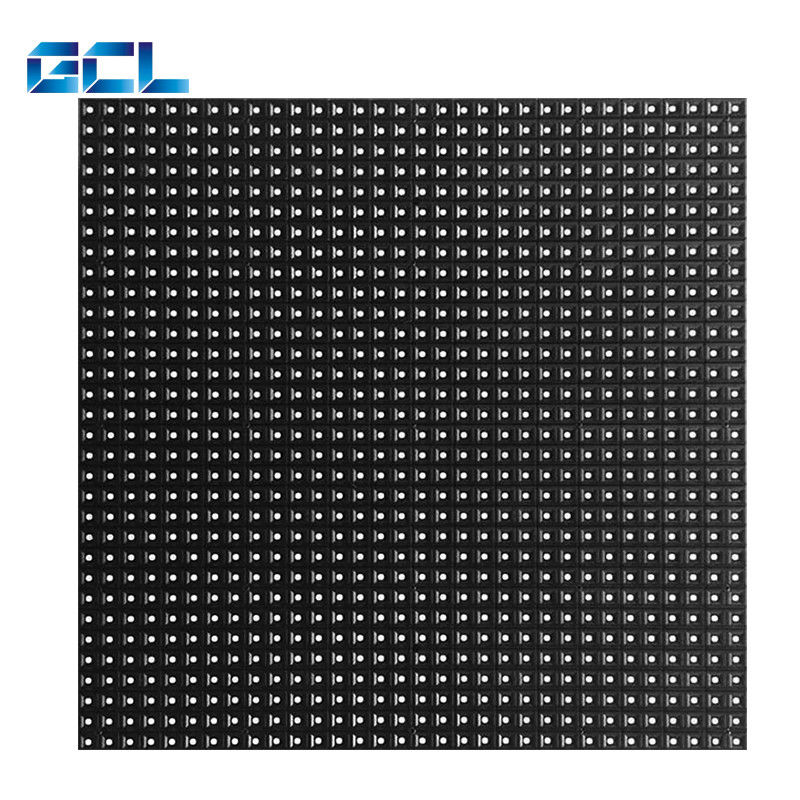

Module Size:

320x320mm

LED Type:

SMD3535

Brightness:

5500nits

Cabinet Maintenance:

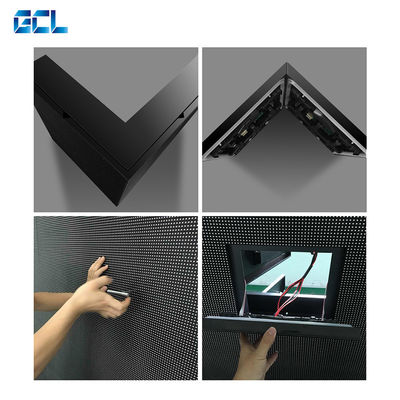

Full Front Service

Protection Level:

IP65

LED Chip:

Epistar

Weight:

40kg/sqm

Pixel Pitch:

5.95mm

Port:

Shenzhen

Supply Ability:

5000 Square Meter/Square Meters per Month

Highlight:

Outdoor Fixed LED Module Sign

LED Module Sign for Trucks

320x320mm HD LED Screens

Product Description

Specification

Product	P3.9	P4.8
Pitch	3.9mm	4.8mm
Density(pixels/m²)	65536	43264
LED Type	SMD1921	SMD1921
Brightness	5500nits	5500nits
Scan Method	1/8	1/7
Panel Size	1000×1000mm
Module Size	250×250mm
Panel Material	Profile Aluminum
Panel Weight	32Kg
Protection Level	IP65
Maintenance	Front Service
Max Power Consumption	600W/㎡
Average Power Consumption	200W/㎡
Refresh Rate	3840Hz
Grey Scale	13-16bit
Viewing Angle	H140°,V120°	H140°,V120°
Voltage	AC100~240V(50-60Hz)
Working Temperature	-30℃ to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
