GCL TV Indoor Fixed LED Display P1.5 Indoor LED Display For Power Saving Stage Installation
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with Flight case & Wooden box & Hard paper box |
| Delivery Time: | 15-22Days |
| Supply Ability: | 5000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | TV, Video | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337mm |
| Function: | SDK | LED Chip: | Nationstar |
| Brightness: | 800nits | Viewing Angle: | H160/V160 |
| Certificate: | CE ROHS FCC | Life Span: | 100000hours |
| Cabinet Material: | Die-casting Alumium | Warranty: | 3 Years |
| Refresh Rate: | 3840Hz | Weight: | 7.5KG/panel |
| Pixel Pitch: | P0.9 P1.2 P1.5 | Port: | Shenzhen |
| Highlight: | P1.5mm Indoor Fixed LED Display,Power Saving Indoor Fixed LED Display,Power Saving Small Pitch LED Display |
||
Product Description
HD 4K, 8K Screen 16: 9 P1.25 P1.56 Indoor LED Display Wall Rental LED Display
The focus of GCL lies in the manufacturing of various types of LED display screens, including indoor and outdoor displays, rental displays, flexible displays, transparent displays, dance floor series, high-definition resolution displays, perimeter displays, stadium sport screens, LED signs, display boards and billboards.

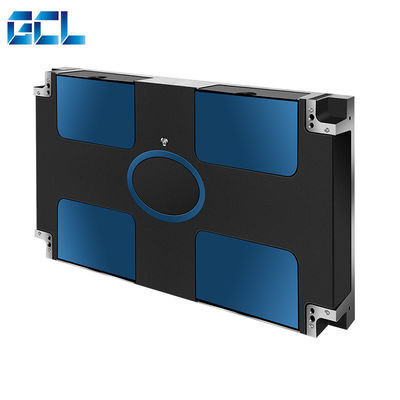

Die-Casting Aluminum Design
As customers have higher requirements for LED displays, more and more cabinets have been developed to meet market demands.
Compared with the traditional bulky cabinet, the die-casting aluminum cabinet with a humanized design is stronger, more light-weight, and precise. This LED panel is highly praised for a better user experience. The pixel pitches of this LED screen are SMD P0.9P1.25, P1.56 P1.875
Front Access Design

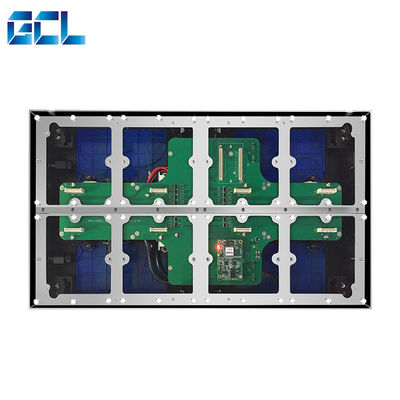

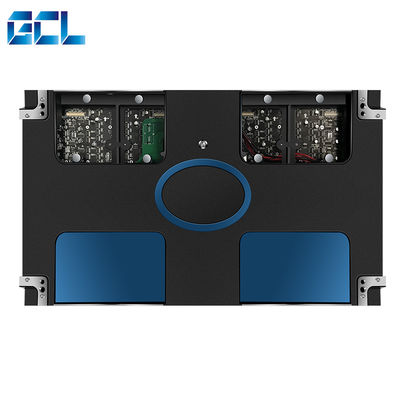

All electrical components: power supply, receiving card, and data cable are easily accessed from the front of the FA3 LED display. This design feature allows for direct wall mount installation.
Gold aspect ratio:
Cabinet size W600*H337.5mm, 4:3/16:9. Customized resolution: 1080p, 2K, 4K, 8K, etc. Wide Viewing Angle: 160°(H) | 140°(V)
They are achieved by an industry setting display refresh rate of 3,840Hz combined with a Grey Scale performance that reaches 16bits luminance intensity.
Flexible Installations
There are 3 ways for installation:
1. Hanging; 2. Stacking; 3. Mounting on the wall.
Parameters of Gtv:
| Name | P0.9 | P1.2 | P1.5 | P1.875 |
| Module | ||||
| LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Module Resolution | 160*180 | 120*135 | 96*108 | 160*90 |
| Module Size(mm) | 150*168.75 | 150*168.75 | 150*168.75 | 300*168.75 |
| Scan Method | 1/36s | 1/27s | 1/27s | 1/54s |
| Cabinet | ||||
| Unit Resolution | 4*2 | 4*2 | 4*2 | 2*2 |
| Cabinet Resolution | 640*320 | 480*270 | 384*216 | 320*180 |
| Cabinet Size(mm) | 600*337.5*63 | |||
| Cabinet Area(㎡) | 0.2025 | |||
| Cabinet Material | Profile Aluminum | |||
| CabinetWeight | 7.5kg | |||
| Densiy (pixels/㎡) | 1137777 | 640000 | 409600 | 284444 |
| Protection Level | IP31 | |||
| Optics | ||||
| Brightness(nits/㎡) | ≥600nits | |||
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-10000K Adjustable | |||
| Viewing Angle | H160°,V160° | |||
| Light Decay Rate | <3% | |||
| ContrastRatio | 9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 400W | 500W | 500W | 500W |
| Average Power Consumption/㎡ | 120W | 150W | 150W | 150W |
| Cabinet Maintenance | Full Front Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
