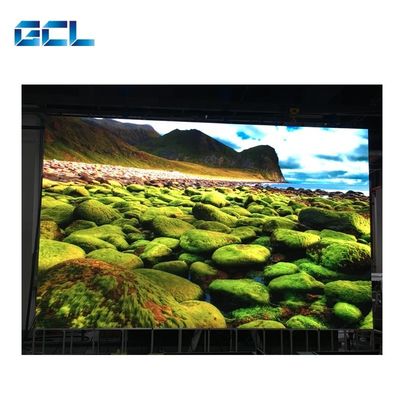

H160° V140° Wide Viewing Angel Indoor LED Display Easy Install Led Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | Gspark |
Payment & Shipping Terms:
| Minimum Order Quantity: | Min. order: 20 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single package size:60X60X30 cm |
| Delivery Time: | 15-20Days |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 640*480mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other |
| Use: | Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Welcome Display, Self-service Business, Exhibition Hall, Wayfinding, Airport, Subway, Elevator, Restaurant & Hotel Supplies, Education, Medical Treatment | Pixel Pitch: | 1.5mm, P2.5 |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | 800nits, 800nits | Pixel Density: | 160000 |
| Contrast Ratio: | 5000:1 | Color Depth: | 256 |
| Lifespan (hours): | 100,000 | IP Rating: | IP 34 |
| HS Code: | 8528591090 | Resolution: | 3840Hz |
| View Angle（H/V）: | H160°/V140° | Module Size: | 320*160mm |
| Warranty: | 3years | Cabinet Material: | Die Casting Alunimum |
| Viewing Angle: | H160° V140° | Refresh Rate: | 3840Hz |
| Weight: | 7.5Kg/panel | Scan Method: | 1/32S |
| Highlight: | Wide Viewing Angel Indoor LED Display,H160° V140° Indoor LED Display,Easy Install Indoor LED Display Screen |
||
Product Description
P1.5mmP1.875 mmP2mm View Angle Fixed Indoor Led Video Wall Panel Screen Display Easy Install
100% Front Service:
All modules , power supply and other parts can be dismounted from the front;
Easy Installation:
4 plates at the corners of each cabinet can be dismounted easily, Easier for installation for front service screens
Low Gray and High Brightness
Perfectly displays dark details even in low light environment Comfortable viewing at close range without hurting the eyes
Brilliant Visual Performance
LED signage always quickly captures the audience's attention and provides unforgettable visual experience for the viewers. Meanwhile, using black LED will increase the color contrast of the screen.
Ultra Light and Thin Cabinet Design
Die-casting aluminum cabinet,thickness:75mm weight:7kg
Magnetic module with front maintenance,quick and convenient maintenance;
Application Scenarios
advertising publish, retail store, shopping mall, welcome display, airport, subway, elevator, Restaurant & Hotel Supplies, education, hotel lobby, school classroom, exhibition centre hallway
Parameters of Gspark Series
| Name | P1.5 | P1.8 | P2 | P2.5 | |
| Module | |||||
| LED Type | SMD1212 | SMD1515 | SMD1515 | SMD2121 | |
| Pixel Pitch(mm) | 1.538 | 1.818 | 2 | 2.5 | |
| Module Resolution | 208*104 | 176*88 | 160*80 | 128*64 | |
| Module Size(mm) | 320*160 | ||||
| Scan Method | 1/52s | 1/44s | 1/40s | 1/32s | |
| Cabinet | |||||
| Unit Resolution | 2*3 | ||||
| Cabinet Resolution | 416*312 | 352*264 | 320*240 | 256*192 | |
| Cabinet Size(mm) | 640*480*75 | ||||
| Cabinet Area(㎡) | 0.3072 | ||||
| Cabinet Material | Profile Aluminum | ||||
| CabinetWeight | 7.47kg | 7.4kg | 7.3kg | 7.24kg | |
| Densiy (pixels/㎡) | 422756 | 302557 | 250000 | 160000 | |
| Protection Level | IP34 | ||||
| Optics | |||||
| Brightress (nits/㎡) | 600nits | 800nits | 800nits | 800nits | |
| Calibration | Support Single-dot Calibration | ||||
| Color Temperature | 3000-9500K Adjustable | ||||
| Viewing Angle | H160°,V140° | ||||
| Light Decay Rate | <3% | ||||
| ContrastRatio | 9000:1 | ||||
| Grey Scale | 13-16bit | ||||
| Electric | |||||
| Max Power Consumption/㎡ | 540W | ||||
| Average Power Consumption/㎡ | 180W | ||||
| Cabinet Maintenance | Full Front Service | ||||
| Input Voltage | AC100~240V(50-60Hz) | ||||
| Performance | |||||
| Drive Mode | Constant Current Drive | ||||
| Refresh Rate | ≥3840Hz | ||||
| Frame Rate | 50Hz/60Hz | ||||
| Working Condition | |||||
| Working TemperatureWoking Humidiy | -30℃~+65℃/10%-90%RH | ||||
| Storage Temperature/Storage Humidity | -30℃~+65℃/10%-90%RH | ||||
| Certifications | EMC/CE/ROHS/CCC/FCC/BIS | ||||
| Note:Specifications will vary based on different configurations.Forreference only,welcome to consult. | |||||
