Indoor HD LED Screen School Classroom Narrow Pixel Pitch LED Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | GCL |
| Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
| Model Number: | GTV |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | plywood,flight case,paper board |
| Delivery Time: | 15-20Days |
| Supply Ability: | 2000 Square Meter/Square Meters per Month |
|
Detail Information |
|||
| Application: | Indoor | Type: | LED |
|---|---|---|---|
| Color: | Full Color | Panel Size: | 600*337mm, 600*337.5mm |
| Supplier Type: | Original Manufacturer, ODM, OEM | Media Available: | Photo, Other, Video |
| Use: | Education, Broading Studio, Monitoring Center, Meeting Room, School Classroom | Pixel Pitch: | 1.25mm, 1.25mm |
| Specification: | Digital Poster, Video Wall | Touch Screen Type: | Capacitive |
| Brightness: | ≥600nits, ≥600nits, ≥600nits | Pixel Density: | 640000, 640000 |
| Contrast Ratio: | 5000:1, 5000:1 | Lifespan (hours): | 100,000, 100,000 |
| IP Rating: | IP 31, IP 31 | Resolution: | 2k-4k |
| View Angle（H/V）: | H160°/V160°, H160°/V160° | Pixels: | 284444 |
| LED Type: | SMD1010 | Scan Method: | 1/27 |
| Module Size: | 300*168.5mm | Weight: | 7.5kg |
| Material: | Die-Casting Aluminum | Protection Level: | IP31 |
| Cabinet Maintenance: | Full Front Service | Refresh Rate: | 3840Hz |
| Port: | Shenzhen | ||
| Highlight: | School Classroom LED Screen School,Indoor HD LED Screen,School Classroom Indoor Display Screen |
||
Product Description
GCL GTV HD Indoor Narrow Pixel Pitch LED Display for School Classroom P0.9 P1.25 P1.875
The low-pass system has a lightweight and thin design for both the box and the body, and can be used as a multi spacing module for this box (P0.9375mm to 1.875mm)
16: 9-inch, 27 inch screen, easy to achieve 2K/4K ultra clear picture splicing
Large domain, richer color hierarchy, multifunctional body

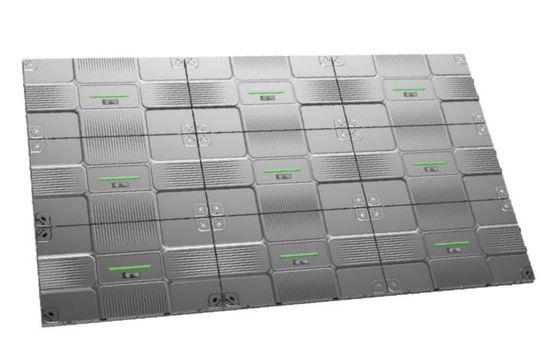

High precision CNC die cast aluminum box with ultra-thin frame, perfect seam fitting and splicing
Realize pre - and post installation and maintenance, adapt to complex site installation
Wire connection
The module and box are assembled using a single wire, making installation more convenient and saving on wire and labor costs
Ultra clear 2K/4K
27 inch machine, easy to achieve 16:9 screen display, 2K/4K ultra clear picture splicing

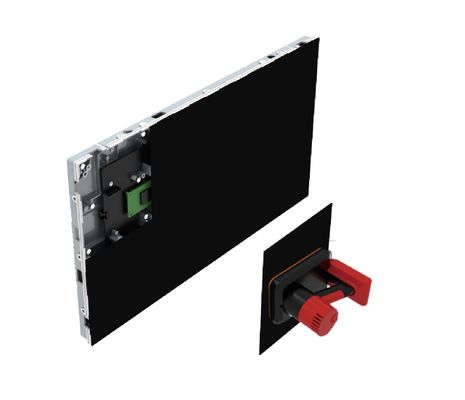

Front end installation
Connect the box to the frame through M50x50 screws from the front of the box and clamp the installation bracket
Rear installation
Connect the box and frame from the rear using M5x50 screws and clamp the mounting bracket
Parameters of Gtv
| Name | P0.9 | P1.2 | P1.5 | P1.875 |
| Module | ||||
| LED Type | Mini09 | SMD1010 | SMD1212 | SMD1515 |
| Pixel Pitch(mm) | 0.93 | 1.25 | 1.56 | 1.875 |
| Module Resolution | 160*180 | 120*135 | 96*108 | 160*90 |
| Module Size(mm) | 150*168.75 | 150*168.75 | 150*168.75 | 300*168.75 |
| Scan Method | 1/36s | 1/27s | 1/27s | 1/54s |
| Cabinet | ||||
| Unit Resolution | 4*2 | 4*2 | 4*2 | 2*2 |
| Cabinet Resolution | 640*320 | 480*270 | 384*216 | 320*180 |

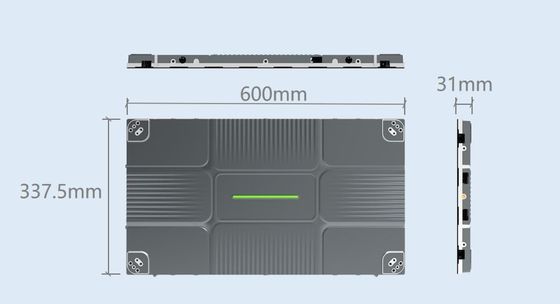

| Cabinet Size(mm) | 600*337.5*63 | |||
| Cabinet Area(㎡) | 0.2025 | |||
| Cabinet Material | Profile Aluminum | |||
| CabinetWeight | 7.5kg | |||
| Densiy (pixels/㎡) | 1137777 | 640000 | 409600 | 284444 |
| Protection Level | IP31 | |||
| Optics | ||||
| Brightness(nits/㎡) | ≥600nits | |||
| Calibration | Support Single-dot Calibration | |||
| Color Temperature | 3000-10000K Adjustable | |||
| Viewing Angle | H160°,V160° | |||
| Light Decay Rate | <3% | |||
| ContrastRatio | 9000:1 | |||
| Grey Scale | 13-16bit | |||
| Electric | ||||
| Max Power Consumption/㎡ | 400W | 500W | 500W | 500W |
| Average Power Consumption/㎡ | 120W | 150W | 150W | 150W |
| Cabinet Maintenance | Full Front Service | |||
| Input Voltage | AC100~240V(50-60Hz) | |||
