Easy Installation Indoor Fixed LED DisplayP0.9mm P1.2mm P1.5mm Indoor Large Led Display Screen Video Wall

Brand Name:	GCL
Model Number:	GTV PH0.9mm/1.25mm/1.5mm
MOQ:	Min. order: 20
Price:	Price to be discussed
Packaging Details:	Single package size:100X80X60 cm
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Model Number:

Weight:

7.5Kg

Brightness:

800nits

Viewing Angle:

160/160°

Panel Size:

600*337.5cm

Warranty:

3 Years

Supply Ability:

1000 Square Meter/Square Meters per Month

Highlight:

Easy Installation Indoor Fixed LED Display

P1.5mm Indoor Fixed LED Display

Easy Installation Indoor LED Display Screen

Product Description

100% Front Service;
All modules , power supply and other parts can be dismounted from the front

Full Redundancy

A backup can be installed for both power and signal

16:9 Ratio

Cabinet size W600*H337mm,the screen size ratio is always 16:9
When there the same amount of cabinets vertically and horizontally

Easy Installation
all 4black plates on the cabinet can be dismounted easily,Easy installation for front service screens

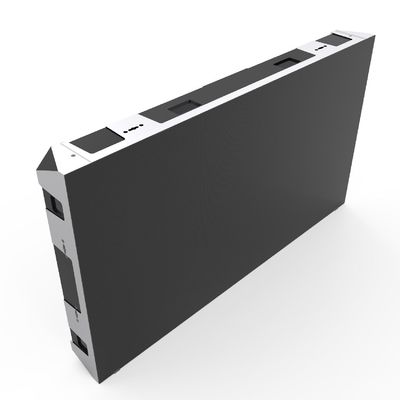

Ultra Slim
Slim cabinet and module design

Key attributes

Product	P0.9	P1.2	P1.5	P1.875
Pitch	0.9375mm	1.25mm	1.5625mm	1.875mm
Density(pixels/m²)	1137777	640000	409600	284444
LED Type	Mini09	SMD1010	SMD1212	SMD1515
Brightness	≥600nits
Scan Method	1/36	1/45	1/54	1/45
Panel Size	600×337.5×32mm
Module Size	150×168.75mm	300×168.75mm	300×168.75mm	300×168.75mm
Panel Material	Die-casting Aluminum
Panel Weight	4kg
Protection Level	IP31
Maintenance	Full Front Service
Max Power Consumption	450W/㎡	450W/㎡	450W/㎡	450W/㎡
Average PowerConsumption	150W/㎡	150W/㎡	150W/㎡	150W/㎡
Refresh Rate	≥3840Hz
Grey Scale	13-16bit
Viewing Angle	H160°,V160°
Voltage	AC100~240V(50-60Hz)
Working Temperature	-20℃to 60℃
Working Humidity	10%-90%RH
Color Temperature	3000-9500K
Certifications	CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO

Easy Installation Indoor Fixed LED DisplayP0.9mm P1.2mm P1.5mm Indoor Large Led Display Screen Video Wall 0

Easy Installation Indoor Fixed LED DisplayP0.9mm P1.2mm P1.5mm Indoor Large Led Display Screen Video Wall 1
