4200nit 1200Hz ISO Multicolor Scrolling LED Signs

Customer Reviews
lm very happy with packing and order. It was done and ready on time. Received order as expected. They answered all my questions as fast as possible. P3 screen looks absolutely stunning. They did exactly as l asked the.

—— Carls

We bought P8 and P10 outdoor display from Jucaiyuan ,the quality is very good,we will order them again soon!

—— Ameen

It is our first cooperation with JuCaiyuan ,but we love to cooperate with the company,very professional factory,good quality control.We are looking forward to working with them soon.

—— Paul

I'm Online Chat Now

4200nit 1200Hz ISO Multicolor Scrolling LED Signs

4200nit 1200Hz ISO Multicolor Scrolling LED Signs
4200nit 1200Hz ISO Multicolor Scrolling LED Signs

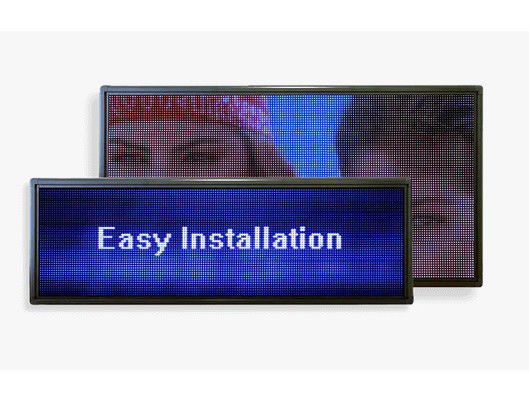

Large Image :  4200nit 1200Hz ISO Multicolor Scrolling LED Signs

Product Details:
Place of Origin: shenzhen, China
Brand Name: jucaiyuan
Certification: CE,ROHS
Model Number: JCD-44
Payment & Shipping Terms:
Minimum Order Quantity: negotiable
Price: negotiable
Packaging Details: Plywood case
Delivery Time: 20 days after receiving the deposit
Payment Terms: T/T, Western Union
Supply Ability: 2000sq.m/Month

4200nit 1200Hz ISO Multicolor Scrolling LED Signs

Display Color: 1R1G1B Display Function: Video , Text, Messages, Pictures
Working Voltage: AC220V±10%50Hz Or AC110±10%60Hz Control System: AV,S-Video,VGA,CVBS,HDMI
LED Display Useage: Front Side: IP65, Backside: IP54 Certificate: UL CE, RoHS, FCC, ISO Etc.
High Light:

ISO Multicolor Scrolling LED Signs


4200nit Multicolor Scrolling LED Signs


1200Hz Custom LED Signs

Multifunction Colorful SCrolling LED Signs P10 for Commercial Advertising


1. The strong and precise die-cast aluminum frame strengthens the fastness and impact resistance.
2. Simple installation and dismantlement .In case of taking out of the whole.,the users can realize it just by four unlocking and one pushing,without any move on its adjacent panel modules.
3. The unique auto-locking design makes the setting and maintenance more convenient and flexible.
Application occasion:
Indoor and outdoor stage setting in rental business: TV entertainment, outdoor show event and rental application



Product Description:

1. Housing color is Black
2. Housing material is Aluminium
3. Font size of text message is adjustable
4. Display function is text message and graphics
5. Flash memory can store several different messages
6. Input voltage is AC 110V-230V; DC 9V-36V if vehicle application
7. Signal connection cable interface is USB(default), RS232, RS485 or TCP/IP network
8. Multi-actions for displaying, including snow, spray, twinkle, rotate, scroll, star burst, wipe and etc
9. Text message can be scrolling and programmed by computer via USB interface
10. Product can support all the languages in the world, English, Spanish, Russsian, French, Hebrew, etc


Technology Specifications


Pixel Pitch 20 mm
Pixel Matrix 32X32 dot
LED Quantity/Module 2500 dot
Pixel Configuration SMD 3-IN-1
Brightness 4200nit
Data refresh rate 1200 Hz
Gray scale 12 bit
Brightness adjustment 256 level
Color 68.7 Billion
Unit Size 960X960X100mm/panel
Unit area 0.41sqm/panel
Weight 8 kg/panel
Power Consumption 200w/panel
Viewing angle 160 /140
Shortest viewing distance 20m
Transparency 40%
Out-of-control point <0.0002
Tenure life of lamp-hour(50% Brightness) >50000 hour
Work Temperature -10C~+40C
Relative Humidity 10%~90% RH
Protection Level IP 54
Work Voltage AC110-240V/50-60Hz
Drive Mode Static constant current
Operative System Windows (2000/XP/Vista)
Control System AV,S-Video,VGA,CVBS,HDMI,DVI
Control Distance HSYV;<100m


Package including:
1. LED sign 1 pc
2. Power wire cable 1 pc
3. Signal communication cable 1 pc
4. Professional installation bracket 2 pcs
5. CD-ROM with control software and User manual 1 pc


Multifunction Colorful Programmable LED Sign P10 for Commercial Advertising


Multifunction Colorful Programmable LED Sign P10 for Commercial Advertising
