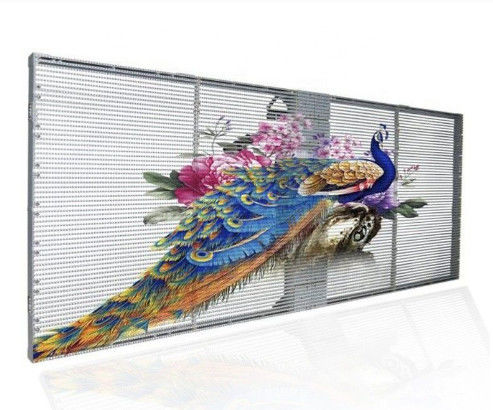

P12 1R1G1B SMD3535 Colour Transparent LED Film

P12 1R1G1B SMD3535 Colour Transparent LED Film
P12 1R1G1B SMD3535 Colour Transparent LED Film

Large Image :  P12 1R1G1B SMD3535 Colour Transparent LED Film

Product Details:
Place of Origin: Shenzhen,China
Brand Name: JuCaiYuan
Certification: CE ROHS FCC
Model Number: P12
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard wooden case or flight case packing as customer's request
Delivery Time: 12-20 working days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ㎡/month

P12 1R1G1B SMD3535 Colour Transparent LED Film

Pixel Pitch: 12.5mm Module Size: 500mm*100mm
Module Resolution (W*H): 40 Dots*8 Dots Pixel Density: 6400 Dots/ ㎡
LED Type: SMD 3535 Pixel Configuration: 1R1G1B
Brightness: ≥6000cd/㎡ Contrast: ≥2000:1
High Light:

P12 Colour Transparent LED Film


1R1G1B Transparent Digital Screen


SMD3535 Colour Transparent LED Film

P12 Outdoor Transparent LED Screen 1R1G1B SMD 3535 Curtain LED Display

Quick Detail:
1. High brightness: more than 6000cd/㎡
2. Lightweight :< 12.5KG/panel. Ultra thin: 100mm thickness
3. Waterproof Level: IP65(Front Side), IP54 (Back Side)
5. Cabinet connection angle can be adjusted by -15 degree to +15 degree
6. Made by high quality aluminum material
1. High brightness & Waterproof
Brightness reaches 6000nits, Waterproof IP65. It is good for indoor and outdoor use.
2. Light Weigh & Ultra Thin
Made by high quality aluminum material, one cabinet only weights 12.5 KG. It makes installation job and
delivery more comfortable and convenient. 100 mm thickness saves not only space for delivery but also
3. Angle Adjustment
Cabinet connection angle can be adjusted by -15 degree to +15 degree. This allows arc shape available.
4. Fast Lock System & No Fan Design
Fast lock system makes installation job much easier: an average worker can finish 60 panels within one
hour. Natural cool system design and good heat dissipation.
5. Rental & Fixed Installation Use
With above features, it is very suitable for advertising and rental usage.

Pixel Pitch 12.5mm
Module Size 500mm*100mm
Module Resolution (W*H) 40 dots*8 dots
Pixel Density 6400 dots/ ㎡
LED Type SMD 3535
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode Dynamic 1/6 Duty Constant Current
Cabinet Size 500×1000×100mm
Cabinet Resolution 40dots×80dots
Brightness ≥6000cd/㎡
Contrast ≥2000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Best Viewing Distance 7m-300m
Grey Scale 10bits/1024levels
Color Capability



P12 1R1G1B SMD3535 Colour Transparent LED Film 0
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
