16bit Shelf Digital Signage

16bit Shelf Digital Signage
16bit Shelf Digital Signage 16bit Shelf Digital Signage

Large Image :  16bit Shelf Digital Signage

Product Details:
Place of Origin: Shenzhen,China
Brand Name: JuCaiYuan
Certification: CE ROHS FCC
Model Number: P1.875
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard wooden case or flight case packing as customer's request
Delivery Time: 12-20 working days after deposit
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000 ㎡/month

16bit Shelf Digital Signage

Product Name: HD Small Pitch COB 3in1 P1.875 Smart Shelf LED Display Screen Signage Pixel Pitch: 1.875mm
Application: Super Market,shop Brightness: 600cd/sqm
Module Size: 150*56.25mm LED Chip: COB
Usage: Indoor Color: Full Color
High Light:

16bit Shelf Digital Signage


P1.875mm Shelf Digital Signage


16bit LED Digital Signage Display

HD Small Pitch P1.875 Shelf LED Display Screen Full Color 16 Bit Gray Scale


Detailed :

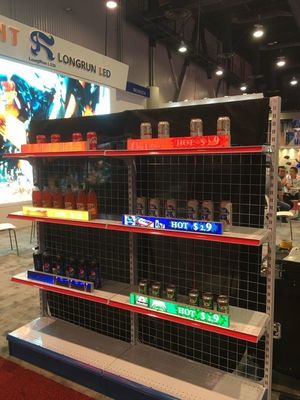

Supermarket goods shelf led display.First LED all digital shelf edge technology capable of delivering dynamic pricing ,promotion,product and brand related information at the shelf edge.High resolution and standard module size.COB Screen Can Shockproof&Waterproof&Dustproof and can wiped with rag when it is splashed,hammer to knock and watering cabinet surface.It is very easy to installtion and connection.Revolutionary design with magnet&shackle.No tool,quickly install and remove.



Technical Parameters:


Pixel Pitch 1.875mm
LED configuration COB 3 IN 1
SIZE 360*60*25mm
Resolution ratio 192*32
Chasis material aluminum
Weight 0.68kg
Brightness 600nit
Gray scale 16bit
Color 281 trillion
Contrast Ratio 3000:01:00
Refresh rate 1920HZ
Max .Consumption 10W
Ave. Consumption 4W
Viewing angle 160° /160°
Working voltage DC 5V
Life Span >100,000 Hours
Input voltage AC100V-240V


COB LED shelf display screen advantage :
1: the thickness from 2.0 ~ 2.0 mm thickness of PCB, the least weight reduced to 1/3 of the original traditional products, can significantly reduce the structure for the customer, transportation, and engineering cost.
2: Anti-collision compressive: COB products are directly to the LED chips encapsulation inside the concave lamp of PCB, and then encapsulated with epoxy resin adhesive curing, lamp bump into spherical surface, smooth and solid, resistance to wear.
3: Great perspective: COB encapsulation using spherical shallow Wells, Angle is greater than 175 degrees, close to 180 degrees, and has more excellent optical diffuse color into light effect.
4: Heat dissipation ability: COB products is to encapsulate the lamp on the PCB board, through the copper foil on the PCB board will wick fast heat, and the copper foil thickness of the PCB board has strict technical requirements, almost will not result in a serious light attenuation.So few dead lamp, prolong the life span of the LED display.
5: Easy to clean, no mask, dust or cloth to clean with water.
6: All-weather fine features: using triple inoculation, waterproof, moisture, corrosion, dust, static, oxidation, uv effect is outstanding;Meet the all-weather conditions, when it's minus thirty degrees to 80 degrees centigrade temperature environment can be normal use.

16bit Shelf Digital Signage 0

16bit Shelf Digital Signage 1
