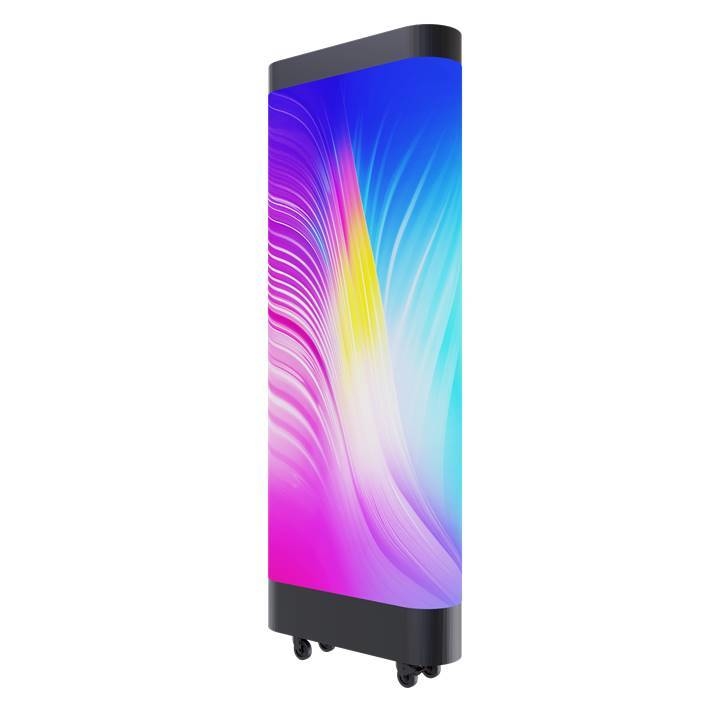

What Are The Precautions When Choosing An Outdoor LED Poster Machine

Brand Name:	GCL
Model Number:	Grime Out door
MOQ:	5
Price:	Negotiable
Packaging Details:	To protect the LED screen well during the long transportation : 1) If it's for rental use, we will pack all cabinets by flight cases; 2) If it's for fixed installation, we will pack all cabinets by plywood cases.

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

EMC/CE/ROHS/CCC/FCC/BIS

Application:

Indoor,Outdoor, Video Play

Type:

LED

Color:

Full Color

Media Available:

Photo, Other, Video

Use:

Advertising Publish, Retail Store, Shopping Mall, Display Of Dishes, Self-service Business, Airport, Subway, Restaurant & Hotel Supplies, Medical Treatment, Street Lamp, Bus Station

Pixel Pitch:

1.5625mm\1.953mm\2.6mm

Specification:

Digital Poster

Brightness:

4500nits, 4500nits, 4500nits

Lifespan (hours):

100,000, 100,000

IP Rating:

IP65, IP65

Resolution:

2K-4K

View Angle（H/V）:

H160°/V140°, H160°/V140°

Warranty:

3years

Usage:

Advertising LED Display

Refresh Rate:

3840hz

Weight:

70kg/pcs

Installation:

Fixed

Cabinet Material:

Tempered Glass+Galvanlized Aluminim

IP Rate:

IP65

Input Voltage:

AC100~240V (50 -63 HZ)

Port:

SHENZHEN

Supply Ability:

10000 Square Meter/Square Meters per Month

Highlight:

outdoor LED poster machine precautions

LED poster selection tips

choosing outdoor LED display

Product Description

What Are The Precautions When Choosing An Outdoor LED Poster Machine

Products Description:

Choosing an LED outdoor advertising display requires balancing performance, scenario suitability, and practicality. The following key dimensions will help you make an accurate decision.

Priority should be given to core performance: The screen brightness should be above 5000cd/㎡ to ensure clear visibility even in strong light. The pixel pitch should be determined according to the viewing distance. For viewing within 2 meters, choose P1.5-P1.953; for 3-5 meters, choose P3-P4; and for more than 10 meters, it can be relaxed to P6 or above. The protection level must reach IP65, and it should be able to adapt to a wide

temperature range from -30℃ to 50℃ to cope with extreme weather such as rain, snow and high temperature.

Scenario adaptation is crucial: For areas around shopping malls, 85-120 inch vertical screens are suitable, which are suitable for short video content. In crowded places such as stations, priority should be given to horizontal screens of 100 inches or more, combined with remote update functions to quickly push dynamic information. If the installation space is narrow, modular spliced models can be chosen to flexibly adapt to the site.

Functional details hold hidden advantages: It should support scheduled on/off and time-period playback to reduce energy consumption. Equipped with an intelligent temperature control system (fan + air conditioning), it can extend the service life. Priority should be given to models supporting 4G/5G networks, which can get rid of wiring restrictions and operate stably even in remote areas.

Cost should be considered in the long run: In addition to the purchase cost, later maintenance should be taken into account. Choose styles where modules can be replaced individually to reduce maintenance costs. Brand after-sales guarantee is very important, and priority should be given to manufacturers that provide free maintenance for more than 2 years.

Led Poster :

Product	Out Door
Pitch	Gprime-1.5	Gprime-1.9	Gprime-2.6
Density(pixels/m²)	P1.5625	P1.953	P2.604
LED Type	409600	262144	147456
Brightness	SMD1010 outdoor	SMD1010 outdoor	SMD1415 outdoor
Scan Method	≥4500cd/㎡	≥4500cd/㎡	≥4500cd/㎡
Panel Size	1/40S	1/32S	1/16S
Module Size	50050075mm	50050075mm	50050075mm
Panel Material	25025017mm	25025017mm	25025017mm
Panel Weight	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Protection Level	≤7.5kg	≤7.5kg	≤7.5kg
Maintenance	Full Front/Rear Service	Full Front/Rear Service	Full Front/Rear Service
Max Power Consumption	700W	700W	700W
Average Power Consumption	180W	180W	180W
Refresh Rate	7680HZ	7680HZ	7680HZ
Grey Scale	14BIT	14BIT	16BIT
Viewing Angle	H140°, V140°
CurveDegrees(Optional)	AC100~240V(50-60Hz)
Voltage	﹣40℃－﹢70℃
Working Temperature	10%－90%RH
Working Humidity	IP65
Color Temperature	3000-9500K
Certifications	EMC/CE/ROHS/CCC/FCC/BIS
